Operation Manual
Diva-Lite 20/30 LED
Part No. 3100089 Rev C
07-26-2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the Diva-Lite 20 LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kino Flo Diva-Lite 20 LED

Summary of Contents for Kino Flo Diva-Lite 20 LED

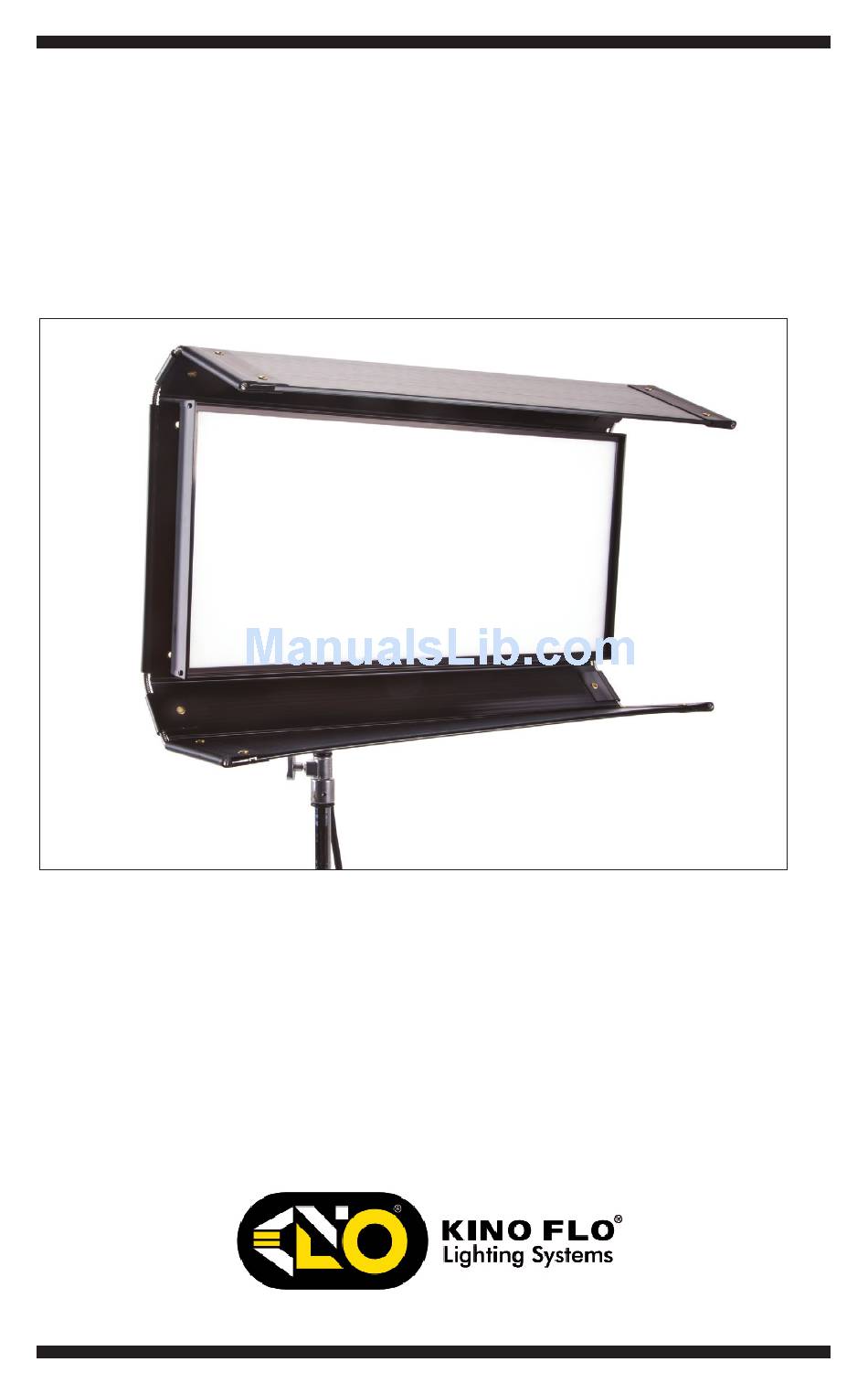

  • Page 1 Operation Manual Diva-Lite 20/30 LED Part No. 3100089 Rev C 07-26-2017...
  • Page 2 Diva-Lite LED DMX System DIV-L20X-120U Diva-Lite 20 LED DMX, Univ 120U DIV-L20X-230U Diva-Lite 20 LED DMX, Univ 230U DIV-L30X-120U Diva-Lite 30 LED DMX, Univ 120U DIV-L30X-230U Diva-Lite 30 LED DMX, Univ 230U Included w/ Diva-Lite LED Models LVR-SL290-P Diva-Lite 20 Louver/HP, 90° (Included) LVR-SL390-P Diva-Lite 30 Louver/HP, 90°...
  • Page 3 Diva-Lite 20 LED DMX Kits KIT-DL20XB-120U Diva-Lite 20 LED DMX Kit, Univ 120U w/ Soft Case KIT-DL20XB-230U Diva-Lite 20 LED DMX Kit, Univ 230U w/ Soft Case Kit Contents: Dimensions: Diva-Lite 20 LED 1 Diva-Lite 20 LED Fixture 31 x 7.5 x 18”...
  • Page 4 Diva-Lite 30 LED DMX Kits KIT-DL30XB-120U Diva-Lite 30 LED DMX Kit, Univ 120U w/ Soft Case KIT-DL30XB-230U Diva-Lite 30 LED DMX Kit, Univ 230U w/ Soft Case Kit Contents: Dimensions: Diva-Lite 30 LED 1 Diva-Lite 30 LED Fixture 42.5 x 7.5 x 16.5” DMX Kit w/ Soft Case 1 Soft Case (108 x 19 x 42cm)

  • Page 5: Mounting Procedures

    Mounting Procedures Mounted on a baby Mounted to pipe grid. stand. Note: When hanging in a studio, loop a safety cord through the metal ring provided on the back of the fixture. Turn the knob to loosen or tighten the mount.
  • Page 6 Baby Offset Arm MTP-B41F Kino Offset w/ Baby Receiver (16mm) The Baby Offset Arm (MTP-B41F) allows fixtures to mount on the center of a stand or it can also be under slung from a baby stand to use as an up light. Applying Louver The Louver is fastened to the fixture with 4 Velcro straps.
  • Page 7 SnapBag & SnapGrid The SnapBag accessory (DFS-FS31-S & DFS-FS21-S) is a lightweight fabric tailor-made for the Diva-Lite LED. It slips over the fixture and is attached with straps. The reflective material intensifies the soft light. The removable Magic cloth or Grid cloth attaches to the inside with Velcro.
  • Page 8 Mounting Flozier To mount Flozier accessory, remove Louver. Stretch two elastic cords around fixture. Take up slack on both elastic cords. Expand the Barndoors to smooth out the face of the Flozier and eliminate wrinkles.
  • Page 9 Fixture Power AC Input The Diva-Lite LED is powered AC and includes an IEC connection. A locking power cord is included with the fixture. To remove the plug, move the red tab to release. The fixture has a built-in power supply with universal input from 100-240VAC. DC Input The Diva-Lite LED can also be operated on 24VDC (input range 18-36VDC) through a 3-Pin XLR.
  • Page 10 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the fixture. The On /Off button only controls the light source.

  • Page 11: Rgb Mode

    Control Panel - Color & RGB Mode Color Mode A) Menu: Provides access to menu options such as General settings (Color Mode), Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB). B) Kelvin, G/M (Green/Magenta) Gel, Hue &...
  • Page 12 Accessories DFS-SL30-H Diva-Lite 30 Flozier, Half DFS-SL20-H Diva-Lite 20 Flozier, Half DFS-FS31-S Diva-Lite 30 SnapBag w/ 2 x Diffusion DFS-FS21-S Diva-Lite 20 SnapBag w/ 2 x Diffusion LVR-SL340-S Diva-Lite 30 SnapGrid 40 ° LVR-SL240-S Diva-Lite 20 SnapGrid 40 ° LVR-SL390-P Diva-Lite 30 Louver/HP 90°...
  • Page 13 KAS-DL22 Diva-Lite LED 20 Flight Case (2) Diva-Lite LED Fixture Specifications DIV-L20X Diva-Lite 20 LED DMX AC Input Voltage: 100~240VAC 50/60Hz, 150W Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC DC Input Voltage: 18~36VDC, 150W Amperage VDC: 6.25A at 24VDC...
  • Page 14 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
