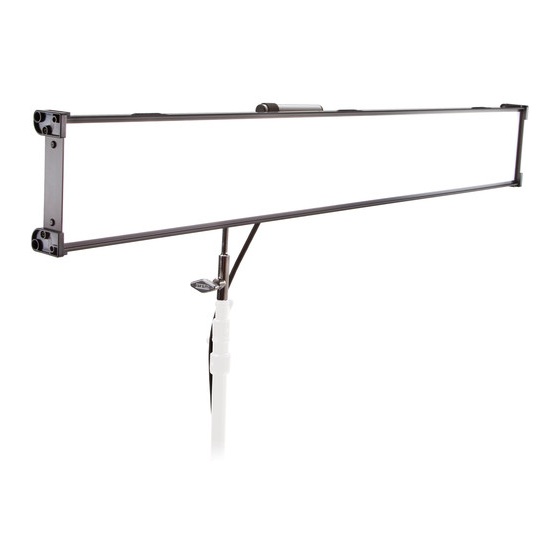

Summary of Contents for Kino Flo Diva-Lite 41 LED

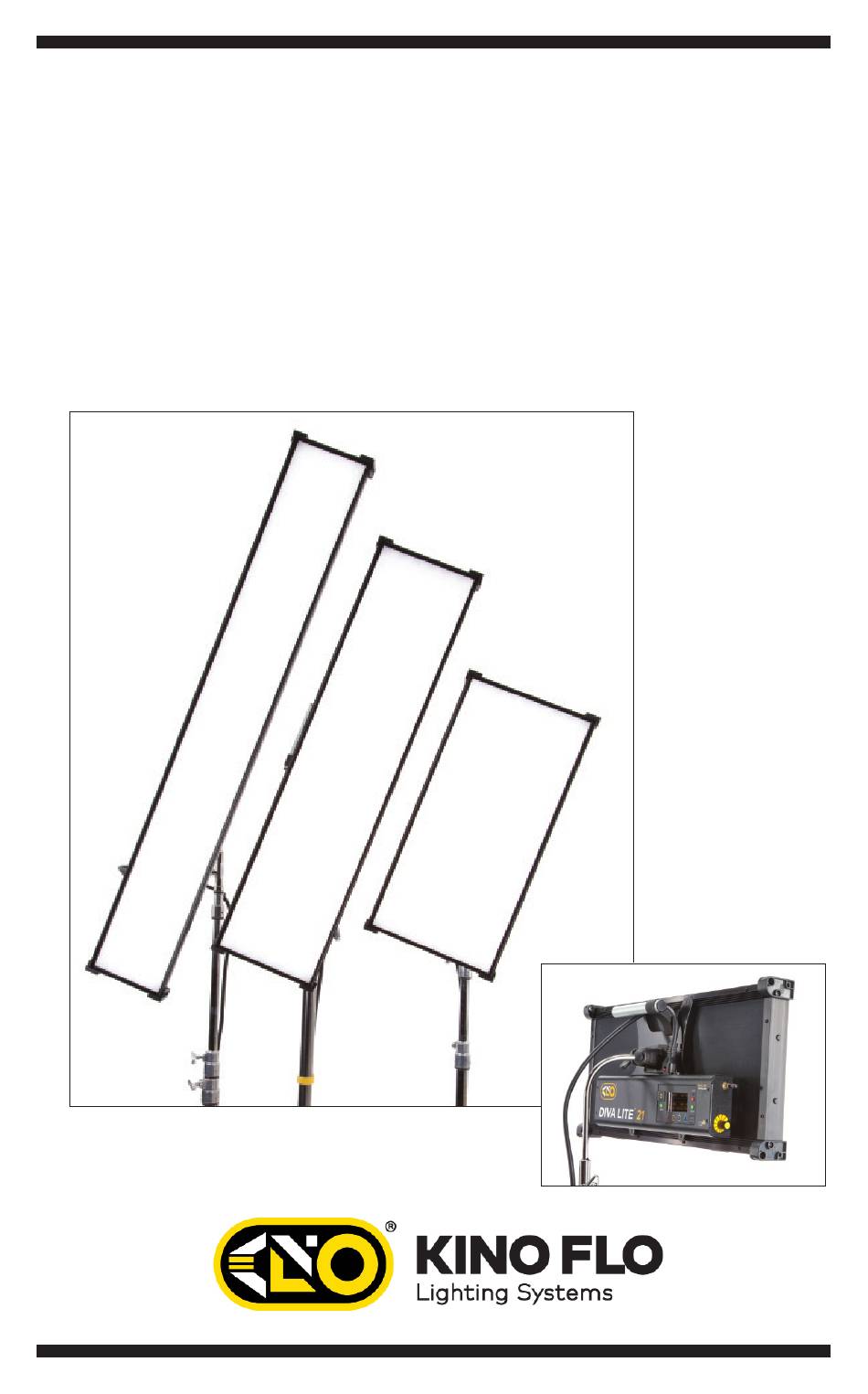

- Page 1 Operation Manual Diva-Lite 41, 31, 21 LED ® (True Match Firmware 4.0) (Camera) Part No. 3100112 Rev B 10-01-2020...
- Page 2 Diva-Lite LED DMX Systems DIV-L21XCU Diva-Lite 21 LED DMX Center, Univ DIV-L31XCU Diva-Lite 31 LED DMX Center, Univ DIV-L41XCU Diva-Lite 41 LED DMX Center, Univ Center Mount DIV-L21XYU Diva-Lite 21 LED DMX Yoke, Univ DIV-L31XYU Diva-Lite 31 LED DMX Yoke, Univ...
- Page 3 Diva-Lite 31 LED DMX Kits KIT-DL31XU Diva-Lite 31 LED DMX Kit w/ Travel Case, Univ Kit Contents: 1 Diva-Lite 31 LED DMX Center 1 Travel Case Diva-Lite 31 LED DMX Kit Dimensions: Weight: w/ Travel Case 45.5 x 9 x 16.5” 33.5 lb (116 x 23 x 42cm) (15kg)
- Page 4 Power AC Input The Diva-Lite LED is powered AC and includes an IEC connection. It also includes a 12ft power cord with a locking IEC connector. It includes a built-in power supply with universal input from 100-240VAC. Ambient Operating Temperature The Diva-Lite LED is designed to operate at temperatures from 14°F to 104°F (-10°C to 40°C).
-
Page 5: Mounting Procedures
Mounting Procedures Mounted on a baby Mounted to pipe grid. stand. Note: When hanging in a studio, loop a safety cord through the metal ring provided on the back of the fixture. Turn the knob to loosen or tighten the mount. - Page 6 Baby Offset Arm MTP-B41F Kino Offset w/ Baby Receiver (16mm) The Baby Offset Arm (MTP-B41F) allows fixtures to mount on the center of a stand or it can also be under slung from a baby stand to use as an up light. Applying Louver The Louver is fastened to the fixture with 4 Velcro straps.
- Page 7 SnapBag & SnapGrid The SnapBag accessory is a lightweight fabric tailor-made for the Diva-Lite LED. It slips over the fixture and is attached with straps. The reflective material intensifies the soft light. The removable grid cloth attaches to the inside with Velcro. DFS-FS41-S Diva-Lite 41 SnapBag w/ 2 x Diffusion DFS-FS31-S...
- Page 8 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 9 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
-
Page 10: Rgb Mode
Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &... - Page 11 Control Panel - CIE xy CIE xy Mode A) Menu: Provides access to menu options such as General settings (CIE xy mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold or 3 seconds to switch through menus (White, Gels &...
- Page 12 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programmed effects as well as control parameters that can be altered.
- Page 13 The camera code (C1 for Arri Alexa), for example, will appear on the main menu between DIM and CCT to designate that a camera setting is active. Note: When the controller is reset, the camera settings will go to Kino Flo Default mode.
-
Page 14: Color Space
Color Space Color Space defines the RGB color space used and only affects color – not Kelvin. It is used in RGB mode and Hue Angle and Saturation. There are a few instances in the FX (Effects) mode that are also affected when color is used. The RGB color space defines the value of Red, Green, and Blue primaries (in CIE xy) and the white point is fixed at 6500 Kelvin. - Page 15 Accessories SYS-BK12 Block/KF21 Single Battery System, 140Whr, 28.8V (2 x Battery) DFS-FS41-S Diva-Lite 41 SnapBag w/ 2 x Diffusion DFS-FS31-S Diva-Lite 31 SnapBag w/ 2 x Diffusion DFS-FS21-S Diva-Lite 21 SnapBag w/ 2 x Diffusion LVR-FS440-S Diva-Lite 41 SnapGrid 40° LVR-FS340-S Diva-Lite 31 SnapGrid 40°...
-
Page 16: Fixture Specifications
Fixture Specifications DIV-L21XCU Diva-Lite 21 LED DMX Center Mount AC Input Voltage: 100~240VAC 50/60Hz, 150W Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC DC Input Voltage: 18~36VDC, 150W Amperage VDC: 6.25A at 24VDC Kelvin Range: 2500K~9900K Dimming Range: 100%~1% Diva-Lite 21 LED Center Mount Weight: 12 lb (5.5kg) Dimensions: 23.5 x 4.5 x 11.5”... - Page 17 Weight: 14.5 lb (6.5kg) Dimensions: 42 x 4.5 x 12” (107 x 11.5 x 30.5cm) DIV-L41XCU Diva-Lite 41 LED DMX Center Mount AC Input Voltage: 100~240VAC 50/60Hz, 150W Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC DC Input Voltage: 18~36VDC, 150W Amperage VDC: 6.25A at 24VDC...
- Page 18 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
