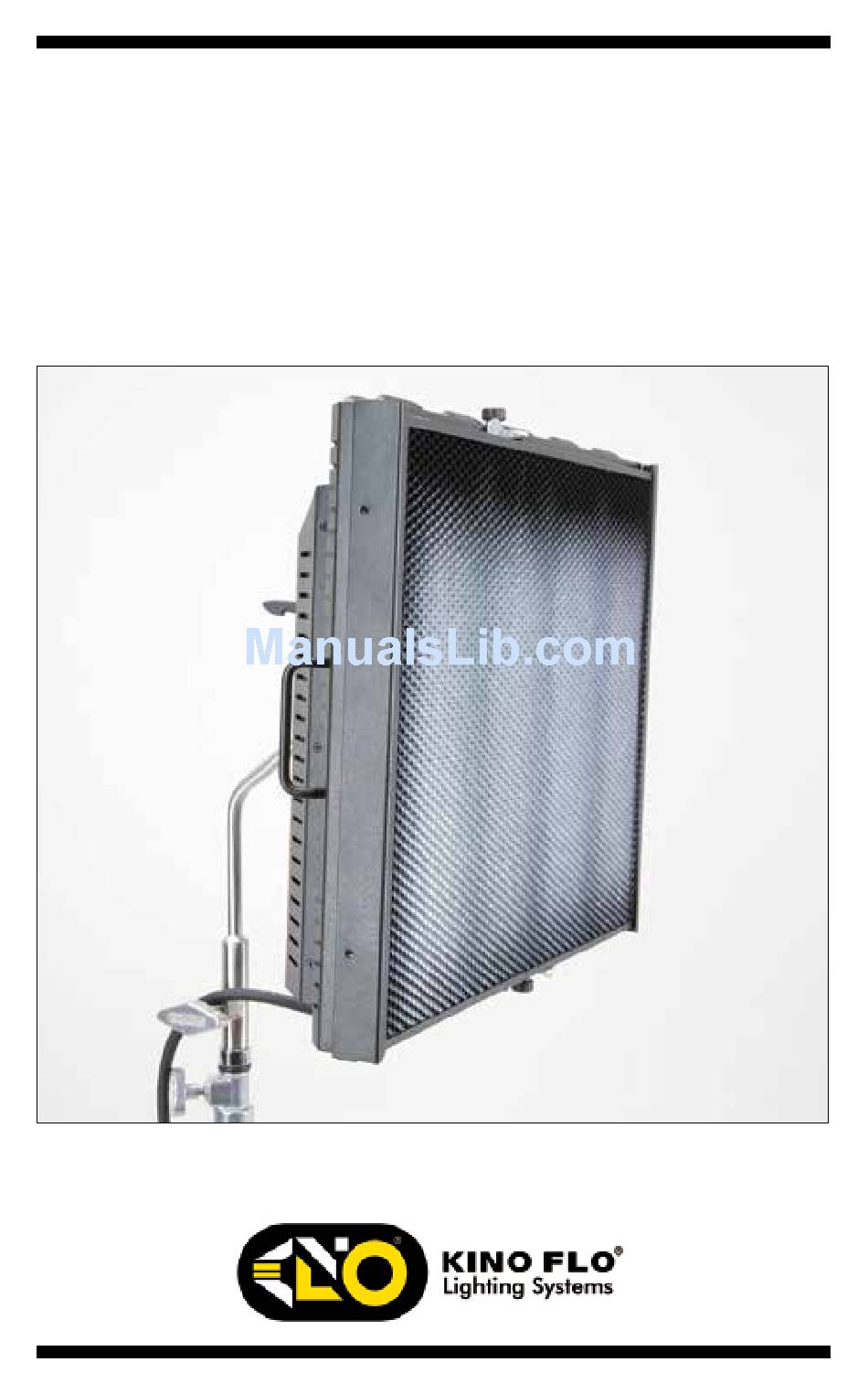

- Page 1 Operation Manual BarFly 400D ® Part No. 3100069 Rev A 06-22-2013...
- Page 2 BarFly 400D System ® BAR-400D-120U BarFly 400D, Univ 120U BAR-400D-230U BarFly 400D, Univ 230U GFR-B4 BarFly 400 Gel Frame (Included) LVR-B490 BarFly 400 Louver, 90° (Included) MTP-BL41 Kino 41L Mount w/ Baby Receiver (16mm) True Match Lamps ® 55Q-K32 55W Kino KF32 Quad...
- Page 3 BarFly 400D Kit KIT-B41D-120U BarFly 400D Kit, Univ 120U (1-Unit) KIT-B41D-230U BarFly 400D Kit, Univ 230U (1-Unit) Kit Contents: 1 BarFly 400D 1 Mount 1 Medium Duty Stand, 30” BarFly 400D Kit 1 Lamp Case (1-Unit) 1 Travel Case Dimensions: Weight: 31.5 x 9 x 22”...
- Page 4 Inserting Lamps Insert lamps at a 45° angle and align pins with lamp holder. Gently lay lamp down into fixture. Caution! If there is any resistance, realign the angle of the lamp and try again. Press lamp securely into lamp clip. Applying Gel to Gel Frame Apply adhesive transfer tape to the gel frame.
- Page 5 Inserting Louvers & Gel Frames Rotate accessory locking tab counter clockwise to open accessory holder. Gel frame fits into lower accessory channel. The louver slides into the upper accessory channel. Rotate locking tab clockwise to lock accessories in place (both ends of fixture).
- Page 6 Mounting Align center pin of mounting plate (MTP-BL41) with mating receptacle on fixture. Align locking pin with the yellow arrow. Rotate mount plate in direction of the small arrow. The locking pin will snap into place. The safety wire loop provides an attachment point for a safety chain if fixture is hung from a grid.
- Page 7 Lollipops are interchangeable. MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm) MTP-LB Kino 41 Lollipop w/ Baby Receiver (16mm) MTP-LBS Kino 41 Lollipop w/ Baby Receiver Short (16mm) Correct Lamp Orientation For stable color rendering, use lamps in either the base up position or the horizontal position.
- Page 8 Check lamp contact. Once everything has been checked, re-strike. Lamp Switches The BarFly 400D has four Lamp Switches which allow for individual lamp operation. Each switch controls one lamp. Turning off 2 lamps equals a one f-stop reduction in light output...
-
Page 9: Dimming Control
Dimming Control Manual Dimming Control The BarFly 400D features a built-in dimmer control. For full light output, turn dimmer fully clockwise. An input jack for an optional Remote Dimmer (DIM-5) is located next to the manual dimming knob. Note: The ballast is designed to start lamps at any dim setting. -
Page 10: Accessories And Parts
Accessories and Parts DIM-5 Remote Dimmer GFR-B4 BarFly 400 Gel Frame (Included) LVR-B460 BarFly 400 Louver-Honeycomb, 60° LVR-B445 BarFly 400 Louver-Honeycomb, 45° MTP-BL41 Kino 41L Mount w/ Baby Receiver (16mm) MTP-KL41 Kino 41L Mount w/ 3/8” Pin (10mm) MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm) MTP-LB Kino 41 Lollipop w/ Baby Receiver (16mm) MTP-LBS... - Page 11 KAS-QL6 KAS-B4-C Part Number Description Dimensions Weight Holds (Empty) KAS-B4-C BarFly 400D Travel Case 31.5 x 9 x 22” 15 lb BarFly 400D Kit Items (1-Unit) (80 x 23 x 56cm) (7kg) KAS-QL6 6-Lamp Carry Case (Quad) 16 x 7.5 x 4.5”...
-
Page 12: Fixture Specifications
This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
