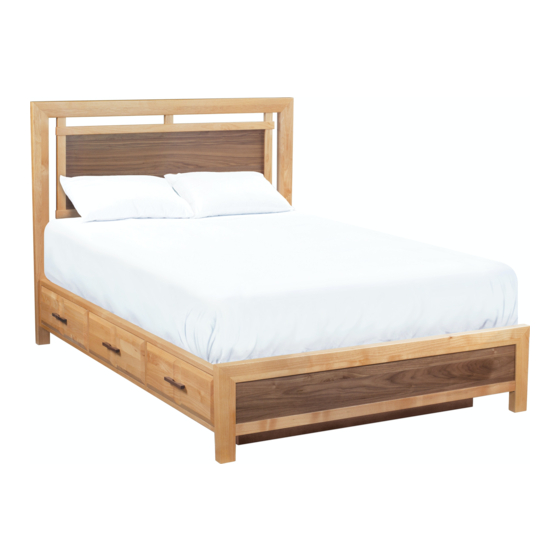

Addison full panel storage bed; addison queen panel storage bed; addison king panel storage bed

Advertisement

Quick Links

Addison Panel Storage Beds
DUET finish
Assembly Instructions
Model #
1995DUET
Addison Full Panel Storage Bed
2018DUET
Addison Queen Panel Storage Bed
2022DUET
Addison King Panel Storage Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
 Wood can be susceptible to changing color over time when exposed to
strong sunlight. Use window shades, drapes or blinds to protect your
furniture. To help the surface age evenly and avoid dark and light
spots, periodically move items to expose the entire surface to an even
amount of light so it may develop a uniform patina.
 For normal household use only. Not recommended for commercial use.
 Remove items before you move this unit.
 Do not overload the drawers.
 This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
08/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1995DUET and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood 1995DUET

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Parts List Please note this Assembly Instruction is for all three beds. Please identify the bed part number when ordering parts. Please identify the parts and check that quantities received match those on this list.
  • Page 3 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Parts List 2023DUET King Addison Panel Headboard/Footboard Kit (x1) Part Description Quantity Headboard Assembly Footboard Assembly Center Deckboard #8 x 7/8" Black Lo-Profile Screw (inserted) #8 x 1-1/4"...
  • Page 4 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Parts List 1996DUET Full Pedestal Kit (x2) 2019DUET Queen/King Pedestal Kit (x2) Part Description Quantity Pedestal Drawer Box (assembled) Drawer Face (attached) Left/Right Center Deckboard 20"...
  • Page 5 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Parts List 1998DUET Addison Full Base Kit (x1) Part Description Quantity Mitered End Support Square End Support Left Support Right Support #8 x 1-3/4" Pan Head Screw (inserted) #10 x 3/4"...
  • Page 6 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Parts List 2024DUET Addison King Base Kit (x1) Part Description Quantity Mitered End Support Square End Support Left Support Right Support King Trestle Rail (31-1/4") #8 x 1-3/4"...
  • Page 7 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, 1/2" open end or box end wrench. Lay out and identify the parts from the Full (#1998) or Queen (#2021) or King (#2024) Base Kit.
  • Page 8 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Place each pedestal (D) on top of the base kit against the side of and between the locater blocks of the Base Kit.
  • Page 9 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Open the drawers and attach the pedestal to the base using Hex Bolts (ZF) and Washers (ZG) only finger tight.
  • Page 10 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. NOTE: When attaching the Footboard (B) to the Pedestal/Base assembly attach it at the end of the Base with the leveler behind the crosspiece.
  • Page 11 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Attach the Headboard (A) with Hex Bolts (ZF) and Washers (ZG) using assembly option a) or b) from Step 5.
  • Page 12 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Once the Headboard and Footboard are attached, open all drawers and tighten Hex Bolts (ZF) and Washers (ZG) on the inside of the bed assembly.
  • Page 13 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Insert Full Trestle Rail Supports (ZH) or QueenTrestle Rail Supports (U) or King Trestle Rail Supports (V).
  • Page 14 1995DUET Addison Full Panel Storage Bed 2018DUET Addison Queen Panel Storage Bed 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Step 11 is for the Addison King Panel Storage Bed (#2022) 11. Place the Center Deckboard (C) as shown in Figure 11 and secure with twelve #8 x 1-1/4" Black Screws (L).
