Model #
1671DUET

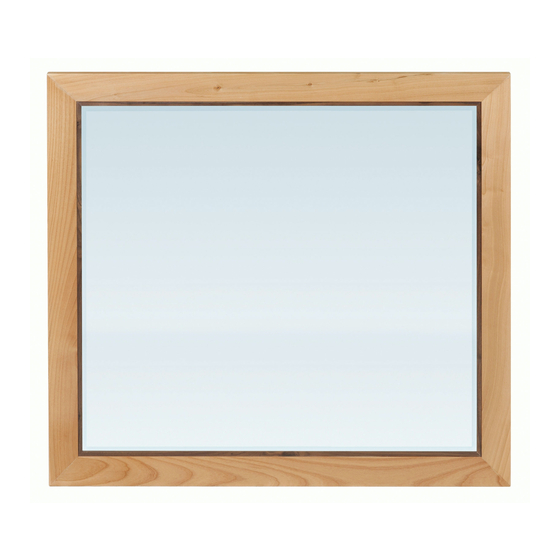

Addison Rectangular Mirror
DUET finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
Wood can be susceptible to changing color over time when exposed to
strong sunlight. Use window shades, drapes or blinds to protect your
furniture. To help the surface age evenly and avoid dark and light
spots, periodically move items to expose the entire surface to an even
amount of light so it may develop a uniform patina.
For normal household use only. Not recommended for commercial use.
Handle the mirror with care. Glass is fragile.
Before you begin your project, completely read the Assembly
Instructions.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
08/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1671DUET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whittier Wood 1671DUET

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 #6 x 5/8" Philtruss Screw (inserted) #8 x 1-3/4" Pan Head Screw #7 x 1-1/2" Black Pan Head Screw M4 x 41mm Machine Screw Velvet Pad 50 x 50mm Mirror Wall Bracket (1 attached) 1671DUET — Page 2 — 08/18...
  • Page 3 Mirror Wall Bracket (L). If you like, you can erase the faint bottom pencil mark. See Figures 2 and 2a. Horizontal Wall Mount Vertical Wall Mount Wall Wall 44-3/4" 34-1/2" Fig. 2 Fig. 2a 1671DUET — Page 3 — 08/18...
  • Page 4 Mirror fits over the angled part of the Mirror Wall Bracket (L). See Figure 4. Wall Mirror Wall Mirror Wall Mirror Wall Bracket (L) Bracket (L) Brackets (L) (side view) (back view) (back view) Stud Wall Fig. 4 1671DUET — Page 4 — 08/18...
  • Page 5 To attach the Mirror horizontally to dresser model #1237, 1238, 1239 use the predrilled outer holes in the back as noted in Figure 6. Horizontal Mount Dresser (1239) Use outer holes for 1671 mirror Fig. 6 1671DUET — Page 5 — 08/18...
  • Page 6 Fig. 7a Dresser (1237 & 1239) Fig. 7 hole from the bottom (Back view) Horizontal Mount hole from the top Fig. 7c Dresser (1238) Fig. 7b hole from the bottom (Back view) 1671DUET — Page 6 — 08/18...
  • Page 7 Fig. 8a Dresser (1237 & 1239) Fig. 8 hole from the bottom (Back view) Vertical Mount hole from the top Fig. 8c Dresser (1238) Fig. 8b hole from the bottom (Back view) 1671DUET — Page 7 — 08/18...
  • Page 8 10. Place the Mirror on top of the Dresser and attach it to the Mirror Supports (E) with four #7 x 1-1/2" Black Pan Head Screws (I). See Figures 10 and 10a. Fig. 10a Fig. 10 Horizontal Mirror Vertical Mirror 1671DUET — Page 8 — 08/18...
  • Page 9 (A). See Figure 12. Place the Mirror on top of the Dresser and attach it to the Mirror Supports (E) with four #7 x 1-1/2" Black Pan Head Screws (I). See Figure 12a. Fig. 12a Fig. 12 1671DUET — Page 9 — 08/18...
