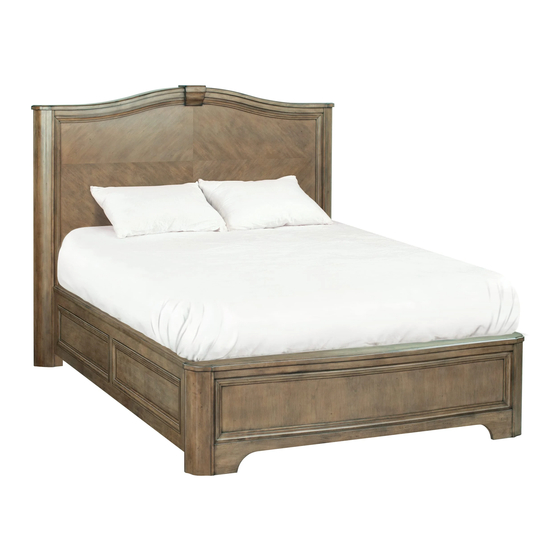

Whittier Wood Stonewood 1746RGBb Assembly Instructions Manual

Whittier Wood Stonewood 1746RGBb Assembly Instructions Manual

Storage bed

Advertisement

Quick Links

Stonewood Beds
RGB = Rustic Glazed Brown finish
Assembly Instructions
Model #
1716RGBb
Stonewood Queen
Storage Bed
1726RGBb
Stonewood King
Storage Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
1746RGBb
Stonewood Queen
1749RGBb
Stonewood King
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Remove items before you move this unit.
• Do not overload the drawers.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
Bed
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
Bed
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
WARNING
Production Code:
VN
03/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stonewood 1746RGBb and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood Stonewood 1746RGBb

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Parts List Please note this Assembly Instruction is for Stonewood Storage Beds (#1716 Queen and #1726 King), and Stonewood Rail Beds (#1746 Queen and #1749 King.) The Parts Lists for each component follow.
  • Page 3 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Parts List 1728RGBb King Headboard/Footboard Kit (x1) Part Description Quantity Headboard Assembly Footboard Assembly Center Deckboard King Trestle with T-Nuts (40-1/2") #8 x 1-1/4" Black Screw #8 x 1-5/8"...
  • Page 4 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Parts List 1718RGBb Pedestal Kit (x2) Part Description Quantity Pedestal Small Drawer Box (assembled) Large Drawer Box (assembled) Small Drawer Face (attached) Large Drawer Face (attached) Left/Right Center Deckboard Notched Deckboard (attached)
  • Page 5 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Parts List 1718RGBb Pedestal Kit (x2)_Cont. Part Description Quantity Knob (attached) Knob Plate (attached) Left Bed Bracket (attached) Right Bed Bracket (attached) Foot Bracket (attached) Adjustable Glide (installed) 1748RGBb Queen Rail Kit (x1)
  • Page 6 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, Slotted screwdriver, 1/2" & 7/16" open end or box end wrench and Tape measure Notes: Steps 1 through 10 are for the Stonewood Queen Storage Bed (#1716) and the Stonewood King Storage Bed (#1726).
  • Page 7 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. Place both Pedestals (Db) approximately 63" apart for #1716 Queen Bed, or 79" apart for #1726 King Bed as shown in Figures 2 and 2a.
  • Page 8 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. Repeat step three for the other side. See Figures 4 and 4a. Fig. 4 Fig. 4a Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the Headboard (Ab).
  • Page 9 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. Open the drawers. Face the Footboard and stand in between the first and second braces. Place a Queen Trestle with T-Nuts (I) or King Trestles with T-Nuts (J) on the outside surfaces of the first upper left and right braces so that the T-Nuts (Y) sit near the top.
  • Page 10 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. Face the Headboard and stand in between the third and fourth braces. Place a Queen Trestle with T-Nuts (I) or King Trestles with T-Nuts (J) on the outside surfaces of the third upper left and right braces so that the T-Nuts (Y) sit near the top.
  • Page 11 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. Place your bed in its final position. Using a 1/2" wrench or Slotted screwdriver adjust the Adjustable Glides (ZG) on the bottoms of the Assembled Feet (M) so that the top edge of the trestles are 17"...
  • Page 12 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. Step 10 is for the Stonewood King Storage Bed (#1726) 10. Place the Center Deckboard (C) as shown in Figure 10 and secure with twelve #8 x 1-1/4" Black Screws (R).
  • Page 13 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. 11. Remove the Queen Trestles (I) that are packed with the Headboard (Ab) (for the 1746 Stonewood Queen Bed) and the Center Deckboard (C) and King Trestles (J) (for the 1749 Stonewood King Bed) from the back of the Headboard (Ab) and discard or recycle them.
  • Page 14 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. 13. Repeat step twelve for the other side. See Figures 13 and 13a. Fig. 13a Fig.
  • Page 15 1716RGBb Stonewood Queen Storage Bed 1726RGBb Stonewood King Storage Bed 1746RGBb Stonewood Queen Bed 1749RGBb Stonewood King Bed Assembly Instructions This assembly requires two people. 15. Attach Assembled Feet (ZM) to five Queen Slats (ZK) or King Slats (ZL) as shown in Figure 15. Fig.
