Whittier Wood Addison 1143DUET Assembly Instructions Manual

Whittier Wood Addison 1143DUET Assembly Instructions Manual

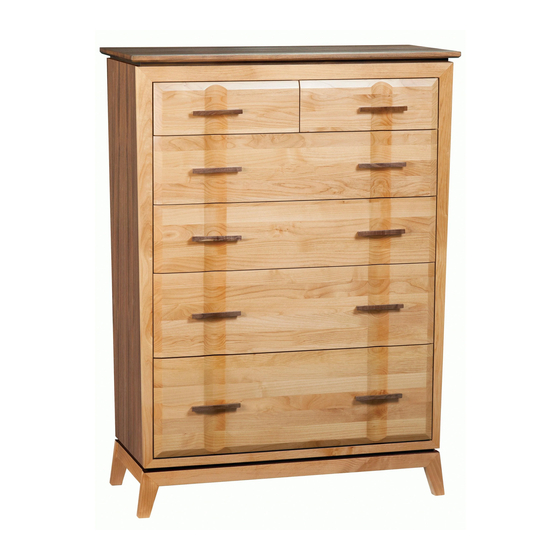

6-drawer chest

Advertisement

Model #
1143DUETd
Addison
6-Drawer Chest
DUET finish
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA

IMPORTANT NOTES:

Wood can be susceptible to changing color over time when exposed to
strong sunlight. Use window shades, drapes or blinds to protect your
furniture. To help the surface age evenly and avoid dark and light
spots, periodically move items to expose the entire surface to an even
amount of light so it may develop a uniform patina.
For normal household use only. Not recommended for commercial use.
Do not climb, sit or stand on this piece of furniture.
Do not overload the drawers.
Unload items before you move this unit.
This assembly requires two people.
Children have died from furniture tipover. To reduce the risk of
furniture tipover:
ALWAYS install tipover restraint provided.
NEVER put a TV on this product.
NEVER allow children to stand, climb or hang on drawers,
doors or shelves.
NEVER open more than one drawer at a time.
DO NOT defeat or remove the drawer interlock system.
Place heaviest items in the lowest drawers.
Use of tipover restraints may only reduce, but not eliminate,
the risk of tip over.
Attention: Attached to the bottom of or included with this unit is a tipping
restraint kit. When you receive your furniture, be sure to find and install
the tipping restraint as instructed in the kit. If you cannot locate the
restraint, please contact us immediately for replacement.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
08/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Addison 1143DUET and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood Addison 1143DUET

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 1143DUETd Addison 6-Drawer Chest Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Top Assembly Case Left/Right Top Drawer Box (inserted) Small Lower Drawer Box (inserted)
  • Page 3 1143DUETd Addison 6-Drawer Chest Parts List Part Description Quantity #8 x 1-3/4" Pan Head Screw (inserted) #8 x 1-1/4" Black Screw (inserted) #8 x 1-5/8" Machine Screw Tuscan (installed) 1/4" x 20mm Insert Nut (inserted) 5/32" x 10mm Insert Nut (inserted) Black Walnut Pull (attached) Small Adjustable Glide (installed) Base (attached)
  • Page 4 1143DUETd Addison 6-Drawer Chest Assembly Instructions Tools Required: Phillips Screwdriver, Pencil. Remove screws from the plywood supports and side aprons. Recycle or discard. See Figure 1. Plywood Supports Fig. 1 This piece of furniture includes a drawer interlock system allowing only one lower drawer to be open at a time.
  • Page 5 1143DUETd Addison 6-Drawer Chest Assembly Instructions If you need to remove your drawers, pull up on the left Drawer Release Lever while pushing down on the right Drawer Release Lever and pull out the drawer. See Figures 4 and 4a. Note where each drawer came from to make sure you place them back into their correct positions.
  • Page 6 1143DUETd Addison 6-Drawer Chest Assembly Instructions Example; if you want to remove the First Drawer and Second Drawer from the chest; remove the Second Drawer first. When you remove this drawer the upper arm on the Anti-Tip Snapper for that side will be pulled forward. See Fig. 6d. As long as this arm is angled toward the front of the case, you cannot remove the First Drawer.
  • Page 7 Before you begin this assembly, identify each part and make sure the quantities received match what is on this list. If you need to replace a part, contact Whittier Wood Furniture customer service and refer to the following list for its name and letter code.
  • Page 8 1143DUETd Addison 6-Drawer Chest Assembly Instructions Move the item back into position against the wall and reach underneath the piece of furniture to grasp the loop in the free end of the strap. Pull the free end of the strap until portion between the Cam Buckle (A) and the back apron of the item is tight.
