Model #
1500GACb; 1500CAFb

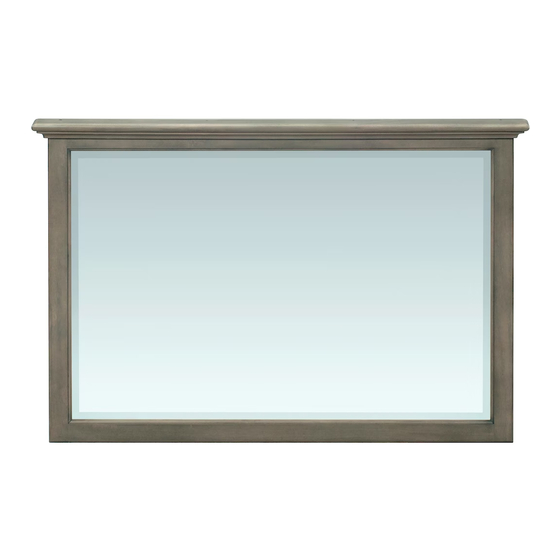

Beveled Mirror
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
•
For normal household use only. Not recommended for commercial use.
•
Handle the mirror with care. Glass is fragile.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
02/17
Advertisement
Related Manuals for Whittier Wood 1500GACb
Summary of Contents for Whittier Wood 1500GACb
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 1500GACb; 1500CAFb Beveled Mirror Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Mirror Assembly...
- Page 3 1500GACb; 1500CAFb Beveled Mirror Assembly Instructions Tools Required: Phillips Screwdriver, Tape Measure, Pencil You have the option of attaching your Mirror to the wall or to selected McKenzie Dressers. To attach your Mirror to the wall, follow steps 1 – 5. To attach the Mirror to a McKenzie Dresser, follow steps 6–...
- Page 4 1500GACb; 1500CAFb Beveled Mirror Assembly Instructions Determine where you want the bottom of your mirror to end and draw a faint pencil line on the wall. For a vertical placement, use a tape measure and measure up 38-1/2" from that mark.
- Page 5 1500GACb; 1500CAFb Beveled Mirror Assembly Instructions NOTE: The Mirror Wall Bracket (H) angles out at the top. When you hang your Beveled Mirror, the Mirror Frame Bracket (D) fits over the angled part of the Mirror Wall Bracket (H). See Figure 5.
- Page 6 1500GACb; 1500CAFb Beveled Mirror Assembly Instructions If you wish to attach a Top, attach the Short Top (F) or the Long Top (G) to the Mirror Frame (Cb) with four #8x1-1/4" Black Screws (K) as shown in Figure 7. G Long Top (for horizontal) F Short Top (for vertical) Fig.
- Page 7 1500GACb; 1500CAFb Beveled Mirror Assembly Instructions To attach the Mirror vertically to the Dresser, use the predrilled holes in the back of the dresser and the predrilled holes noted as vertical mount holes in Figure 8a as guides. To attach the Mirror Supports (N), insert Machine Screws (O) into the third hole from the top and the bottom hole in each Mirror Support (N) and into the proper holes in the Back.
- Page 8 1500GACb; 1500CAFb Beveled Mirror Assembly Instructions 10. Attach the Mirror Supports by inserting Machine Screws (O) into the third hole from the top and the bottom hole of the Mirror Support and into the back. See Figure 10. Horizontal mount Third hole from the top Fig.
- Page 9 1500GACb; 1500CAFb Beveled Mirror Assembly Instructions 12. Place the Mirror on top of the Dresser and attach it to the Mirror Supports (N) with four #7 x 1-1/2" Black Pan Head Screws (P). See Figures 12 and 12a. Fig. 12 Fig.
