Addison Panel Storage Beds
DUET = Natural finish
Assembly Instructions
Model #
2018DUET

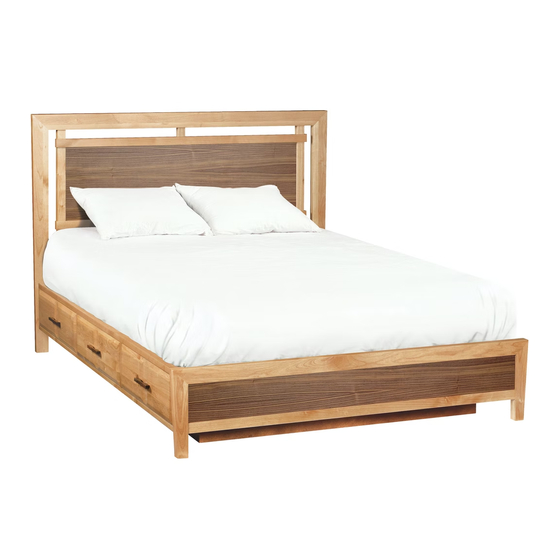

Addison Queen
Panel Storage Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
2022DUET
Addison King
Panel Storage Bed
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Remove items before you move this unit.
• Do not overload the drawers.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
12/16

Advertisement

loading
Need help?

Need help?

Do you have a question about the Addison 2018DUET and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood Addison 2018DUET

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Parts List Please note this Assembly Instruction is for either the Addison Queen Panel Storage Bed (2018) or the Addison King Panel Storage Bed (2022). The Parts list for each headboard follows on pages 2 and 3. Please identify the parts and check that quantities received match those on this list.
  • Page 3 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Parts List 2023DUET King Addison Panel Headboard/Footboard Kit (x1) Part Description Quantity Headboard Assembly Footboard Assembly Center Deckboard #8 x 7/8" Black Lo-Profile Screw (inserted) #8 x 1-1/4" Black Screw 5/16"...
  • Page 4 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Parts List 2019DUET Queen/King Pedestal Kit (x2) Part Description Quantity Pedestal Drawer Box (assembled) Drawer Face (attached) Left/Right Center Deckboard Drawer Slides (installed) 3 sets #6 x 3/4" Philtruss Screw (inserted) #6 x 1/2"...
  • Page 5 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Parts List 2021DUET Addison Queen Base Kit (x1) Part Description Quantity Mitered End Support Square End Support Left Support Right Support Queen Trestle Rail (15-1/8") #8 x 1-3/4" Pan Head Screw (inserted) #10 x 3/4"...
  • Page 6 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Parts List 2024DUET Addison King Base Kit (x1) Part Description Quantity Mitered End Support Square End Support Left Support Right Support King Trestle Rail (31-1/4") #8 x 1-3/4" Pan Head Screw (inserted) #10 x 3/4"...
  • Page 7 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, 1/2" open end or box end wrench. Lay out and identify the parts from the Queen (#2021) or King (#2024) Base Kit. Set aside part Trestle Rail (U) (Queen) or Trestle Rail (V) (King) for use later in the assembly process.
  • Page 8 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Place each pedestal (D) on top of the base kit against the side of and between the locater blocks of the Base Kit. See Figure 3. Locater blocks Locater blocks Fig.
  • Page 9 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Open the drawers and attach the pedestal to the base using Hex Bolts (ZF) and Washers (ZD) only finger tight. See Figures 4 and 4a. x 10 x 10 Fig.
  • Page 10 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. There are two options to attach the Footboard (B) to the Pedestal Assembly. Option a) Release the two drawers (E) at the end of the assembly as shown in Fig. 5a. Open the Drawers (E) until the back edge of the drawer is even with the front of the Pedestal.
  • Page 11 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Attach the Headboard (A) with Hex Bolts (ZF) and Washers (ZD) using assembly option a) or b) from Step 5. See Figures 6 and 6a. Fig.
  • Page 12 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Once the Headboard and Footboard are attached, open all drawers and tighten Hex Bolts (ZD) and Washers (ZF) on the inside of the bed assembly. Adjust levelers (ZC) only if floor is uneven or if bed has movement .
  • Page 13 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Insert QueenTrestle Rail Supports (U) or King Trestle Rail Supports (V). See Figures 9 and 9a. U or V Fig. 9a Fig.
  • Page 14 2018DUET Addison Queen Panel Storage Bed & 2022DUET Addison King Panel Storage Bed Assembly Instructions This assembly requires two people. Step 11 is for the Addison King Panel Storage Bed (#2022) 11. Place the Center Deckboard (C) as shown in Figure 11 and secure with twelve #8 x 1-1/4" Black Screws (L).
