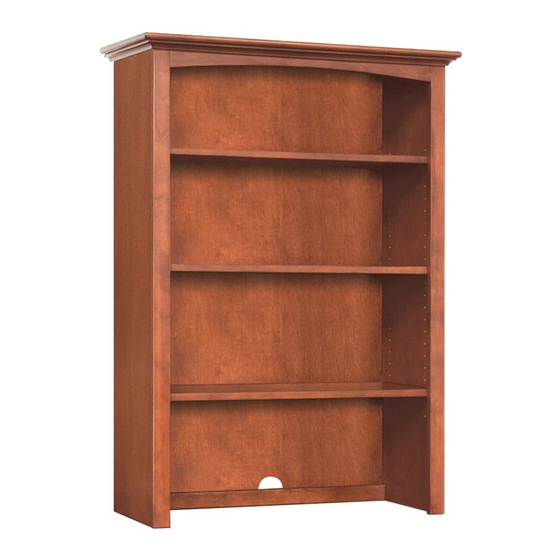

McKenzie Alder
Hutch
Ready to Finish
Assembly Instructions
Model #
1614aAUF
McKenzie Alder
Hutch 24"W
1626aAUF
McKenzie Alder
Hutch 36"W
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
1620aAUF
McKenzie Alder
Hutch 30"W
1632aAUF
McKenzie Alder
Hutch 48"W
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Do not climb, sit or stand on this piece of furniture.
• Do not overload the shelves.
• Unload items before you move this unit.
• Before you begin your project, completely read the Assembly
Instructions and Finishing Hints.
• This assembly requires two people.
Children have died from furniture tipover. To reduce the risk of
furniture tipover:
•
ALWAYS install tipover restraint provided.
•
NEVER put a TV on this product.
•
NEVER allow children to stand, climb or hang on doors, or shelves.
•
Place heaviest items on the bottom shelves.
Use of tipover restraints may only reduce, but not eliminate,
the risk of tipover.
Attention: Attached to the bottom of or included with this unit is a
tipping restraint kit. When you receive your furniture, be sure to find
and install the tipping restraint as instructed in the kit. If you cannot
locate the restraint, please contact customer service immediately for
a replacement.
Drilling, sawing, sanding or machining wood products can expose you
to wood dust, a substance known to the state of California to cause
cancer. Avoid inhaling wood dust or use a dust mask or other
safeguards for personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
WARNING
08/19
