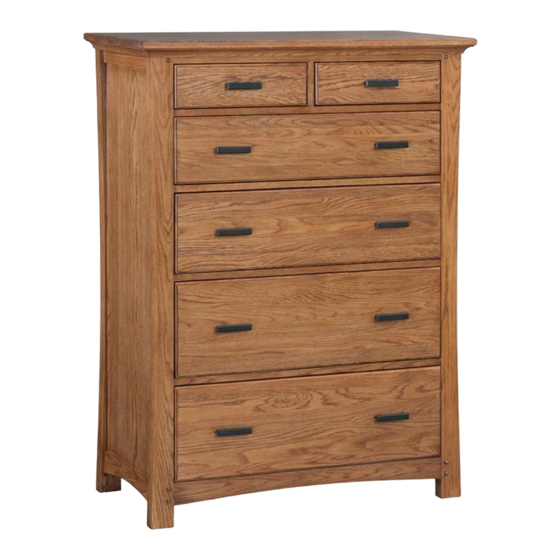

Model #
1230LSOd;
1230DAOd
6-Drawer
Prairie City Chest
LSO = Summer Oak finish
DAO = Autumn Oak finish
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
•
For normal household use only. Not recommended for commercial use.
•
Do not climb, sit or stand on this piece of furniture.
•
Do not overload the drawers.
•
Unload items before you move this unit.
•
This assembly requires two people.
Serious or fatal crushing injuries can occur from furniture tip-over. Use of
tip-over restraints may only reduce but not eliminate the risk of tip-over.
To help prevent tip-over:
•
Place heaviest items in the bottom drawers.
•
Unless specifically designed to accommodate, do not set TVs or other
heavy objects on top of this product.
•
Never allow children to climb or hang on drawers, doors or shelves.
•
Never open more than one drawer at a time.
•
Do not defeat or remove the drawer interlock system.
Warning: At least one tipping restraint kit was included with your piece of
Whittier Wood Furniture. When you receive your furniture, be sure to find
and properly install the tipping restraint(s). If you cannot locate the
restraint(s), please contact us immediately for replacement.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
11/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood 1230LSOd
Summary of Contents for Whittier Wood 1230LSOd
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 1230LSOd; 1230DAOd 6-Drawer Prairie City Chest Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity...
- Page 3 1230LSOd; 1230DAOd 6-Drawer Prairie City Chest Assembly Instructions Tool Required: Phillips Screwdriver, Pencil. This piece of furniture includes a drawer interlock system allowing only one lower drawer to be open at a time. This is a safety feature to reduce the risk of tip over. Do not defeat or remove the drawer interlock system.
- Page 4 1230LSOd; 1230DAOd 6-Drawer Prairie City Chest Assembly Instructions When removing drawers from furniture featuring the Anti-Tip Drawer Interlock System it is important that the drawer be installed back in its original location. Numbers and letters are stamped on the back of the drawers. Stamping sequence starts at the bottom, moves to the top and designated left or right.
- Page 5 1230LSOd; 1230DAOd 6-Drawer Prairie City Chest Assembly Instructions Example; if you want to remove the First Drawer and Second Drawer from the Chest; remove the Second Drawer first. When you remove this drawer, the upper arm on the Anti-Tip Snapper for that side will be pulled forward.
- Page 6 Before you begin this assembly, identify each part and make sure the quantities received match what is on this list. If you need to replace a part, contact Whittier Wood Furniture customer service and refer to the following list for its name and letter code.
- Page 7 1230LSOd; 1230DAOd 6-Drawer Prairie City Chest Assembly Instructions Move the item back into position against the wall and reach underneath the piece of furniture to grasp the loop in the free end of the strap. Pull the free end of the strap until portion between the Cam Buckle (A) and the back apron of the item is tight.
