Quick Start Guide
UFT 930
English
Connection and Set-up

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFT 930 and is the answer not in the manual?

Questions and answers

Related Manuals for Kathrein UFT 930

Summary of Contents for Kathrein UFT 930

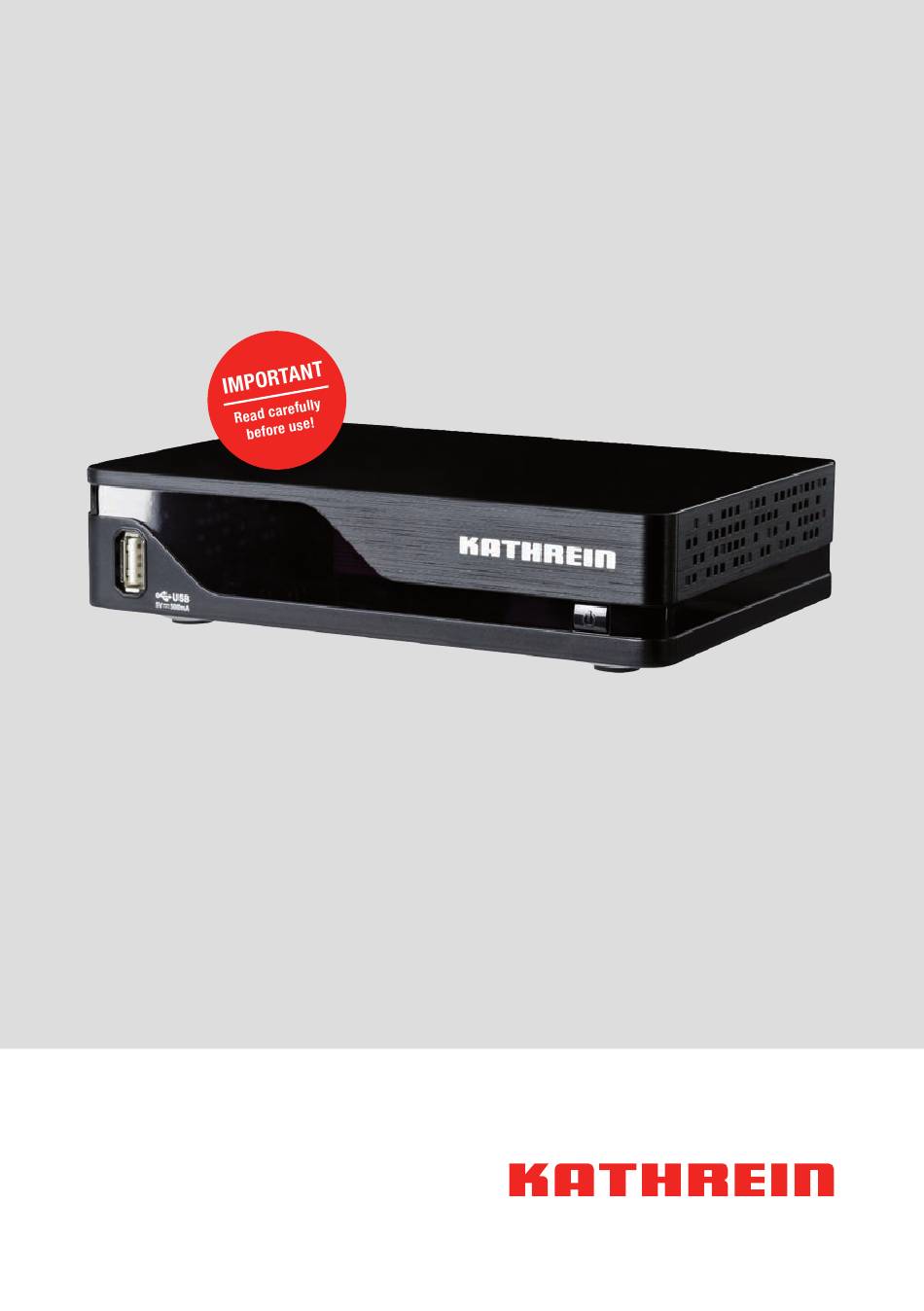

  • Page 1 Quick Start Guide UFT 930 English Connection and Set-up...

  • Page 2: Table Of Contents

    Contents About This Guide ..............3 Explanation of Symbols and Signal Words ......3 Symbols and Signal Words ................3 Safety Instructions .................... 5 General Notes ....................7 Abbreviations and Technical Terms ..............8 Scope of Delivery ..............9 Controls and Connections ..........10 Front View ......................

  • Page 3: About This Guide

    TV sets and DVB-T/T2 antennas and then setting it up. Furthermore, the guide describes the buttons of the remote control and their functions. For further details, see the comprehensive instructions for use at www.kathrein.com. ► www.kathrein.com ▶ SAT ▶ Product Overview ▶ Receiver (see QR code) ➯...
  • Page 4 Explanation of Symbols and Signal Words Other Symbols Symbol Meaning ► Operating instruction 1, 2, 3...n Operating instructions in a fixed o der ➯ Result of an operating instruction ✔ Condition for the execution of an operating instruction ● List/list entry ––...

  • Page 5: Safety Instructions

    Safety Instructions WARNING Danger to life from electric shock! ► Do not open the unit. ► Make sure that, for example, children do not insert any objects into the ventilation slots. ► Make sure that any repairs on the unit are carried out by qualified sta f. ►...
  • Page 6 Explanation of Symbols and Signal Words NOTICE Material damage due to: Incorrect supply voltage! ► Operate the unit only at the specified mains voltage. It is stated at the back of the unit or on the external power supply unit. Incorrectly earthed antenna system! ►...

  • Page 7: General Notes

    (e.g. changes to the menus and/or functions) is released for your receiver, where we believe it necessary we will make available a new manual for download under www.kathrein.com. ► Note the basic settings that you make when setting up the receiver for the first time, so that you can estore them later, if necessary.

  • Page 8: Abbreviations And Technical Terms

    Explanation of Symbols and Signal Words Abbreviations and Technical Terms EPG (Electronic Programme Guide) is an electronic programme guide which the receiver displays on the TV set. HbbTV HbbTV (Hybrid broadcast broadband TV) – together with Teletext – provides additional information from the programme providers. This information can be received via the TV signal and also via the Internet.

  • Page 9: Scope Of Delivery

    Scope of Delivery ➊ UFS 930 receiver ➋ Quick Start Guide ➌ Remote control ➍ HDMI cable ➎ Power supply unit ➏ 2 batteries AAA 1.5 V The accessories supplied may differ in appearance from those illustrated. Fig. 1: Scope of delivery (with packaging) 9 of 28...

  • Page 10: Controls And Connections

    Controls and Connections Controls and Connections Front View Fig. 2: Front View ① ② USB 2.0 connection Stand-by Button connection for an external USB storage switches between ON and Stand-by 10 of 28...

  • Page 11: Back Panel

    Back Panel Fig. 3: Back Panel ① ⑥ ANT IN Ethernet port DVB-T/T2 antenna input Network connection ② ⑦ no function USB 2.0 Port connection for an external USB storage ③ ⑧ S/PDIF ON/OFF switch optical digital audio output turns the receiver on and off ④...

  • Page 12: Remote Control

    ● This section describes the basic functions of the remote control for displaying broadcast TV programmes (live mode). For further information, see the comprehensive instructions for use at www.kathrein.com. ● Many buttons have one or several context-dependent functions described either at the bottom of the user interface or at the bottom/top of the main menu.
  • Page 13 ① On / stand-by ② Number pad ③ Show teletext ④ Volume higher (Vol +) and lower (Vol –) ⑤ Switch channels ⑥ Show channel information ⑦ context-dependent functions in live TV/radio, EPG ⑧ no function ⑨ ● Open the channel list ●...

  • Page 14: Inserting Batteries Into The Remote Control

    ► To do so, connect the receiver either to your conventional stand-alone or community antenna through which you receive all VHF/UHF signals, or use an antenna developed for DVB-T/T2 e.g the Kathrein BZD 30 for direct reception indoors or the BZD 40 for outdoors.

  • Page 15: Selecting The Installation Location

    If you are using (or have to use) an active antenna – that is, an antenna with a pre-amplifie , you can power it from the receiver's antenna input. ► Make sure to use an antenna designed for a 5 Volt supply, e.g. the Kathrein BZD 30.

  • Page 16: Connecting The Antenna Cable

    Connecting the Receiver Connecting the Antenna Cable ✔ A sufficiently long antenna cable with IEC connectors is available ► Connect the IEC antenna cable ① of the antenna ② to the IEC input ANT IN of the receiver (Fig. 5). Connecting the TV set 1.

  • Page 17: Initial Set-Up

    Initial Set-up NOTICE Risk of material damage due to improper cable connection! ► Only connect the unit to the mains and perform the initial set-up after the installation work has been properly carried out as described in the previ- ous chapters. Nothing you do during the initial set-up can damage your reception system.

  • Page 18: Performing The Initial Set-Up

    Initial Set-up Performing the Initial Set-up Switching on the Receiver 1. Connect the receiver and the TV set to the mains. 2. Use the On/Off switch to switch on the receiver. 3. Switch on the TV set. 4. Select the HDMI input on the TV set which the receiver is connected to.
  • Page 19 Performing a Channel Search  1. Press   2. Press to select Channel Search (see figu e on the left).  3. Press ➯ The Channel Search menu opens (see figu e on the left).  4. Press  (red) to start a channel search in the complete frequency range.
  • Page 20 Initial Set-up  6. Press to leave the menu. ➯ A live TV programme is shown (see figu e on the left). Selecting a Channel Selecting a Channel from the Channel List  to show the channel list (① in 1.
  • Page 21 Establishing Internet Connection (optional) If you would like to use HbbTV, it is necessary to connect the receiver to the internet using an Ethernet cable. ► Connect an Ethernet cable to the Ethernet port of the receiver (⑥ in Fig. 3, p. 11). ➯ The connection to the internet is being established. An IP address is assigned automatically.

  • Page 22: Accessories (Not Included In The Scope Of Delivery)

    Accessories (not included in the scope of delivery) Accessories (not included in the scope of delivery) The following accessories are available for the receiver UFZ 112 USB hard disk 500 GB Order number: 20410038 ● Hard Disk Capacity: 500 GB for up to 300 hours of standard TV or 100 hours of HDTV recordings (depend- ing on the data rate of the transmitted broadcast) ●...

  • Page 23: Troubleshooting

    Troubleshooting The Receiver is not Responding, or the TV Set Display Remains Blank Possible causes Remedy The antenna cable is not connected or the Check the antenna cable and the mains mains plug is not correctly plugged into plug connection the mains socket.
  • Page 24 Troubleshooting The Message Poor or no signal! Is Displayed Possible causes Remedy ● The DVB-T/T2 antenna is aligned Consult an antenna specialist. incorrectly and the antenna signal is too weak ● The antenna cable is incorrectly connected or damaged No Connection to the Network is Possible Possible causes Remedy Network cable...
  • Page 25 Contact your specialist dealer if after reading the Quick Start Guide and the instructions for use you still have outstanding questions or cannot solve a problem. The Kathrein customer hotline is also available on 0180 5 122240  *) Device information required for a claim under warranty...

  • Page 26: Cleaning

    Cleaning Cleaning Follow the following instructions to avoid material damage: ► Disconnect the mains plug before cleaning the unit. ► Do not open the unit. ► Do not insert any objects into the ventilation slots. ► Use a dry cloth for cleaning. ►...

  • Page 27: Copyright And Licence Conditions

    Any modifications to the eceiver software, or the use of applications not provided by Kathrein will invalidate the warranty: You will have to bear the costs yourself for dispatch- ing and repairing any receiver that requires attention due to modifications to the softwa e and use of applications other than those provided by Kathrein.
  • Page 28 | sat@kathrein.de 936.5148/-/VMPT/0616/GB | Subject to change. KATHREIN-Werke KG, Anton-Kathrein-Straße 1-3, 83022 Rosenheim, Germany, Phone +49 8031 184-0, Fax +49 8031 184-52360...
