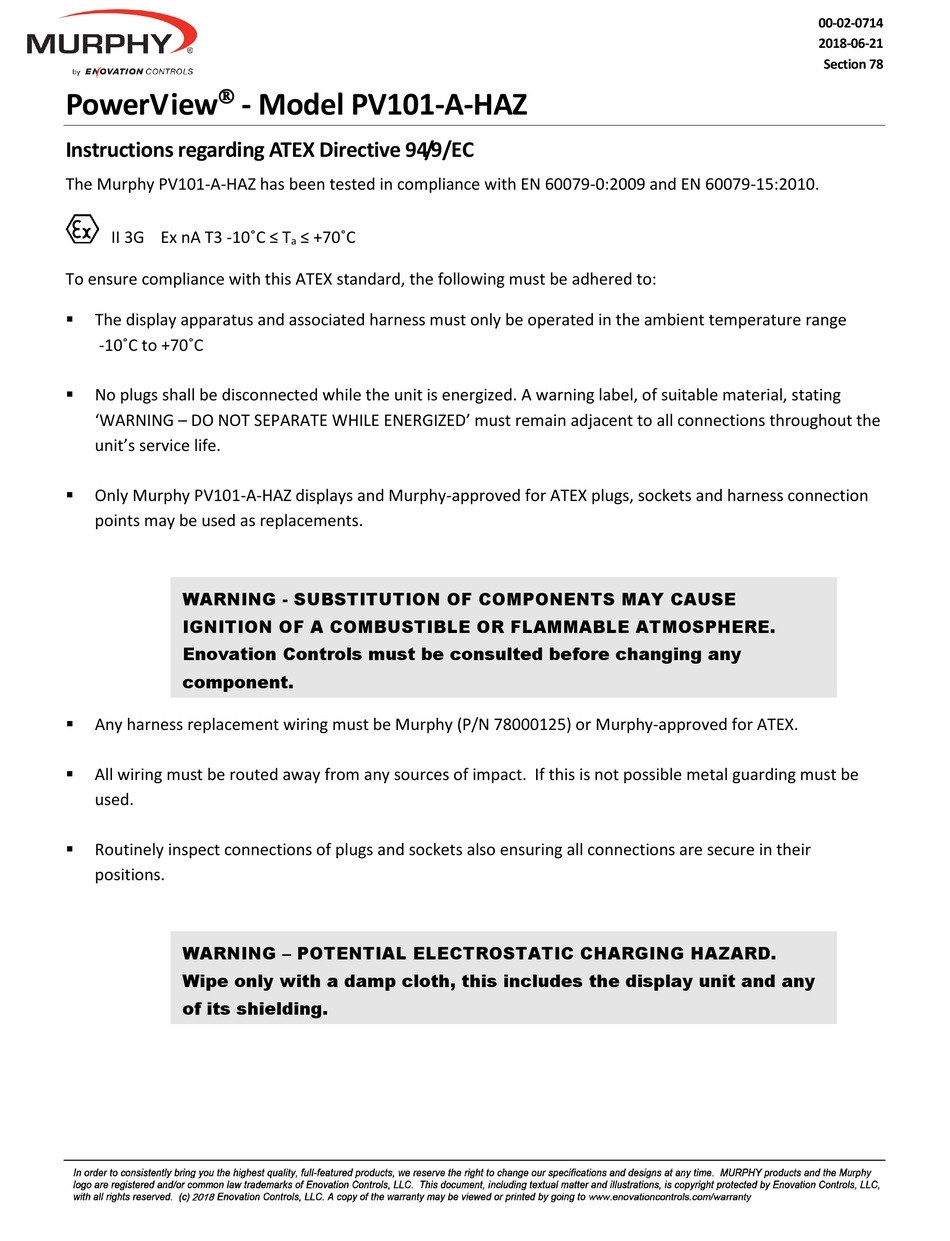

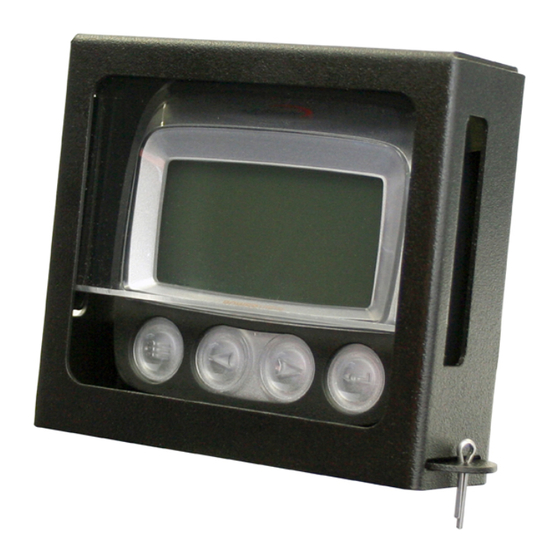

PowerView - Model PV101-A-HAZ

Instructions regarding ATEX Directive 94/9/EC

The Murphy PV101-A-HAZ has been tested in compliance with EN 60079-0:2009 and EN 60079-15:2010.
II 3G Ex nA T3 -10˚C ≤ T
To ensure compliance with this ATEX standard, the following must be adhered to:
The display apparatus and associated harness must only be operated in the ambient temperature range

-10˚C to +70˚C
No plugs shall be disconnected while the unit is energized. A warning label, of suitable material, stating

'WARNING – DO NOT SEPARATE WHILE ENERGIZED' must remain adjacent to all connections throughout the
unit's service life.
Only Murphy PV101-A-HAZ displays and Murphy-approved for ATEX plugs, sockets and harness connection

points may be used as replacements.
WARNING - SUBSTITUTION OF COMPONENTS MAY CAUSE
IGNITION OF A COMBUSTIBLE OR FLAMMABLE ATMOSPHERE.
Enovation Controls must be consulted before changing any
component.
Any harness replacement wiring must be Murphy (P/N 78000125) or Murphy-approved for ATEX.

All wiring must be routed away from any sources of impact. If this is not possible metal guarding must be

used.
Routinely inspect connections of plugs and sockets also ensuring all connections are secure in their

positions.
WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD.
Wipe only with a damp cloth, this includes the display unit and any
of its shielding.
≤ +70˚C
a
00-02-0714
2018-06-21
Section 78
