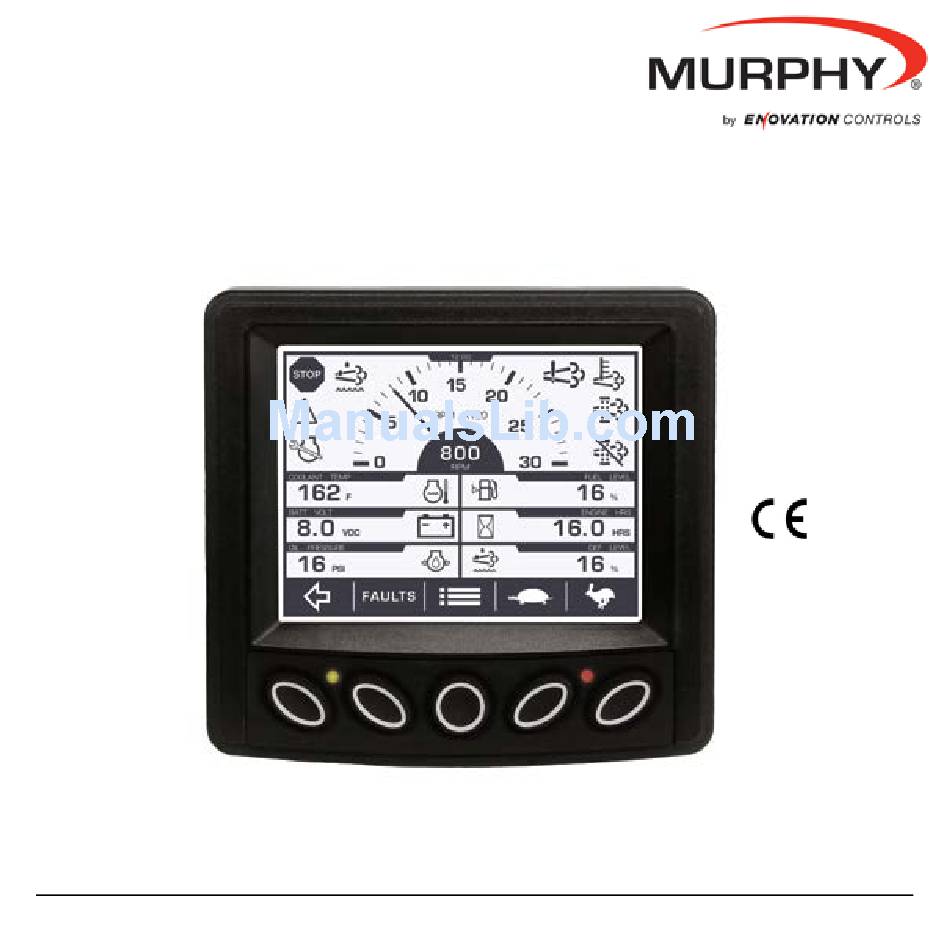

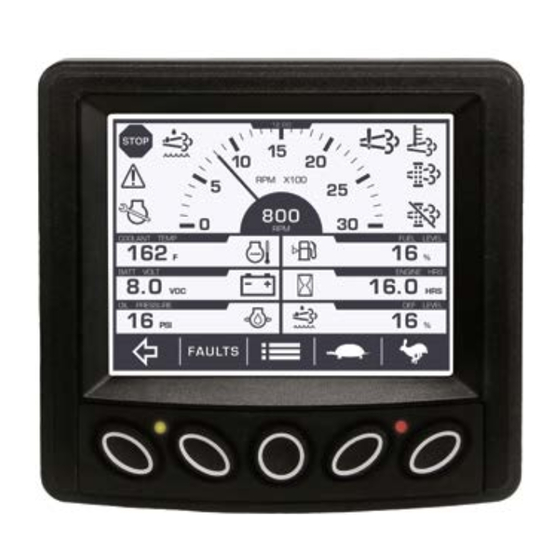

- Page 1 ® PowerView Models PV350 & PV380 R2 Installation Manual Sec 78/00-02-0998 2016-06-15...
- Page 2 The latest version of this manual can be found at www.fwmurphy.com. Warranty - A limited warranty on materials and workmanship is given with this Murphy product. A copy of the warranty may be viewed or printed by going to www.fwmurphy.com/support/warranty.htm...
-
Page 3: Table Of Contents
Table of Contents Hardware Installation ........... 5 Inspecting Package Contents ...... 5 Dash-Mounted Installation ......6 Dimensions ..........7 Wiring Information ..........9 Pin Specifications for PV350 ....... 9 Pin Specifications for PV380 ..... 10 Wiring Diagram for PV350 ......12 Wiring Diagram for PV380 ...... - Page 4 - This page intentionally left blank - Sec 78/00-02-0998 2016-06-15...
-
Page 5: Hardware Installation
Hardware Installation The following instructions will guide you through installing the PowerView display. Inspecting Package Contents Before attempting to install the product, it is recommended that you ensure all parts are accounted for and inspect each item for damage (which sometimes occurs during shipping). The items included in the box are: •... -
Page 6: Dash-Mounted Installation
Dash-Mounted Installation Tools needed • Jig saw or • 3.5” Hole saw or • 3.5” knockout (chassis) punch Preparing the Dash Determine the location of the PowerView in the dash. Refer to the Mounting Hole Options sheet at the end of this document for the appropriate opening sizes. -
Page 7: Dimensions
Dimensions 00-02-0998 2016-06-15... - Page 8 Dimensions, cont. 00-02-0998 2016-06-15...
-
Page 9: Wiring Information
Wiring Information Pin Specifications for PV350 00-02-0998 2016-06-15... -
Page 10: Pin Specifications For Pv380
Pin Specifications for PV380 00-02-0998 2016-06-15... - Page 11 PV350 Mating Connector Part Numbers: • Deutsch DT06-12SA plug housing • Deutsch DT06-6S plug housing • W6S and W12S wedge locks • Deutsch 0462-201-16141 contact (socket) • M12 (Micro-C) 5-pin male plug compatible with NMEA 2000 thin backbones (light cable) PV380 Mating Connector Part Numbers: •...
-
Page 12: Wiring Diagram For Pv350
Wiring Diagram for PV350 00-02-0998 2016-06-15... -
Page 13: Wiring Diagram For Pv380
Wiring Diagram for PV380 00-02-0998 2016-06-15... -
Page 14: Pv350 And Pv380 Features And Operations
PV350 and PV380 Features and Operations 00-02-0998 2016-06-15... - Page 15 Alarms Red and amber warning LEDs; set point triggered output for external piezo buzzer or shut-down relay. Operations Manual The PV350/PV380 Murphy Standard Configuration Operation manuals can be found at www.fwmurphy.com/products/displays/PV350 www.fwmurphy.com/PV380. 00-02-0998 2016-06-15...
-
Page 16: Specifications
Specifications Electrical Display 3.8” monochrome LCD Resolution QVGA, 320 x 240 pixels Orientation Landscape Backlighting LED, white Flash Memory 256kb 6 - 36 VDC, protected against reverse Operating Voltage polarity and load-dump Power 10 W max Consumption PV350: (2) CAN 2.0B NMEA 2000 isolated (second port) Communications PV380: (1) CAN 2.0B... - Page 17 PV350: 6 pin Deutsch connector and 5 pin M12 connector Connection PV380: 6 pin and 12 pin Deutsch DT series connectors Keyboard 5 tactile buttons PV350: (1) resistive analog (backlight control) PV380: (4) resistive analog Inputs (3) analog, 0-5V / 4-20 mA (1) frequency, 2-10,000 Hz, 3.6- 120 VAC PV350: (1) 500 mA;...
- Page 18 Electrical Safety: 2006/95/EC Electromagnetic Compatibility: • 2004/108/EC: Standards • EN 61000-6-4:2001 (emission) Compliance • EN 61000-6-2:2001 (immunity) • EN 50121-3-2 and EN 12895 • SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41 Random vibration, 7.86 Grms (5.2000 Hz), Vibration 3 axes Shock...
- Page 19 Mounting Hole Options 00-02-0998 2016-06-15...
