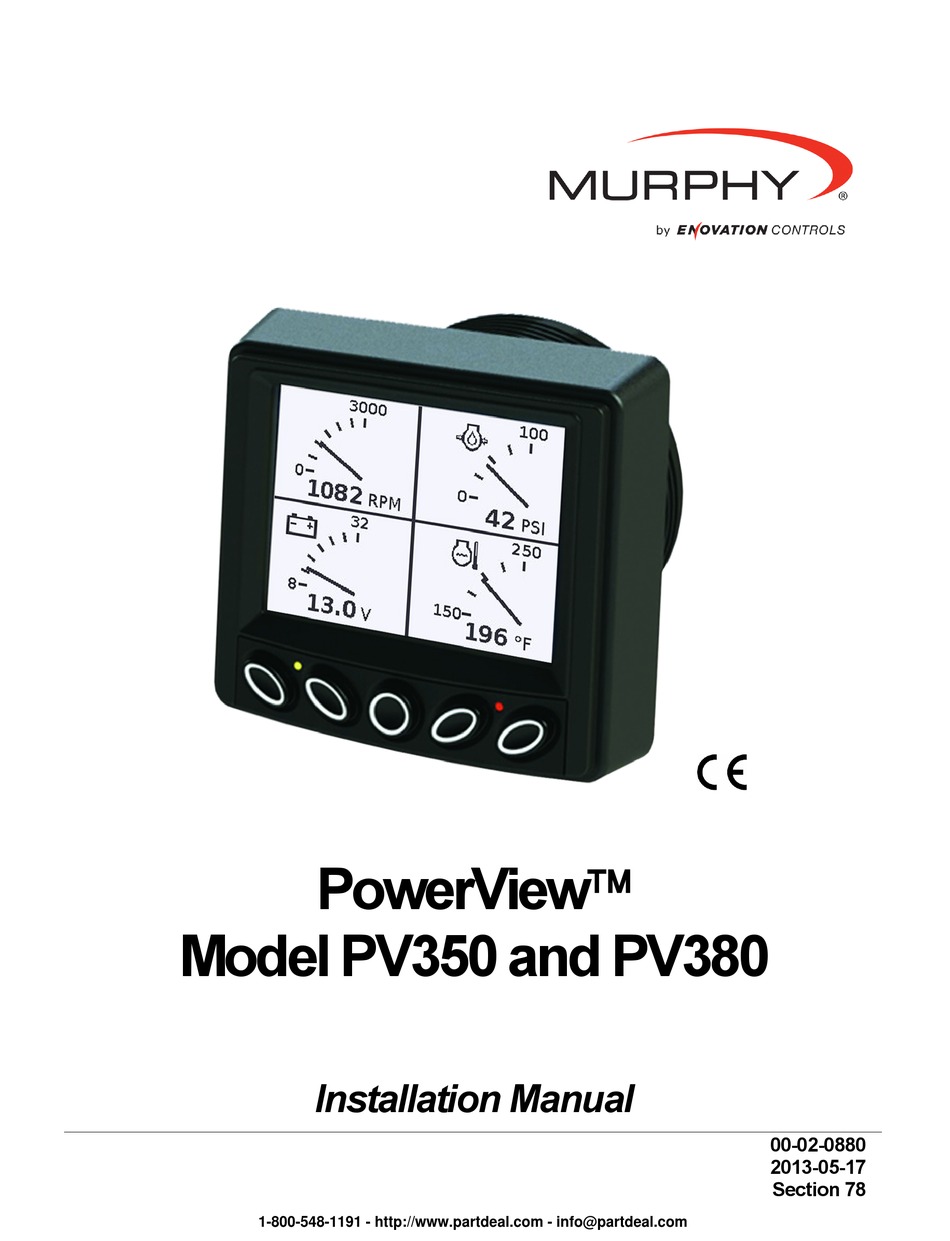

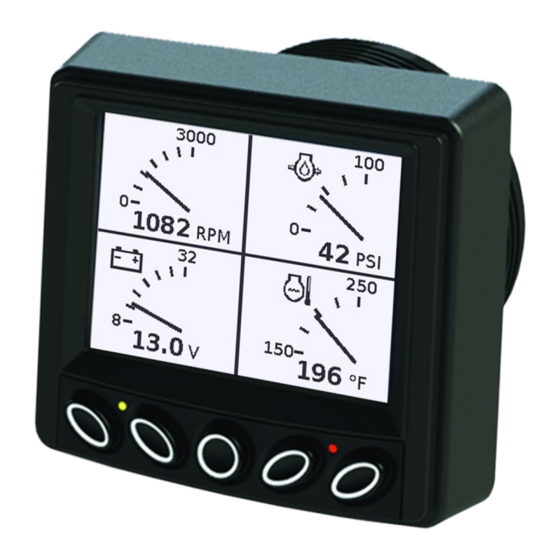

  • Page 1 PowerView Model PV350 and PV380 Installation Manual 00-02-0880 2013-05-17 Section 78 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...
  • Page 2 In order to consistently bring you the highest quality, full featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at www.fwmurphy.com. Please read the following information before installing. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: Read and follow all installation instructions.
  • Page 3 (THIS PAGE INTENTIONALLY LEFT BLANK) 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...

  • Page 4: Table Of Contents

    Table of Contents Hardware Installation ......................... 5 Inspecting Package Contents ..................5 Dash-Mounted Installation....................5 Dimensions ........................6 Wiring Information ........................8 Pin Specifications for PV350 ..................8 Pin Specifications for PV380 ..................9 Wiring Diagram for PV350..................10 Wiring Diagram for PV380..................11 PV350 and 380 Features and Operations ................12 Specifications ...........................

  • Page 5: Hardware Installation

    Hardware Installation The following instructions will guide you through installing the PowerView display. Inspecting Package Contents Before attempting to install the product, it is recommended that you ensure all parts are accounted for and inspect each item for damage (which sometimes occurs during shipping). The items included in the box are: •...

  • Page 6: Dimensions

    Dimensions Section 78 00-02-0880 2013-05-17 - 6 - 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...
  • Page 7 Dimensions, cont. Section 78 00-02-0880 2013-05-17 - 7 - 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...

  • Page 8: Wiring Information

    Wiring Information Pin Specifications for PV350 PV350 Mating Connector Part Numbers: • Deutsch DT06-12SA plug housing • Deutsch DT06-6S plug housing • W6S and W12S wedge locks • Deutsch 0462-201-16141 contact (socket) • M12 (Micro-C) 5-pin male plug compatible with NMEA 2000 thin backbones (light cable) Section 78 00-02-0880...

  • Page 9: Pin Specifications For Pv380

    Pin Specifications for PV380 PV380 Mating Connector Part Numbers: • Deutsch DT06-12SA plug housing • Deutsch DT06-6S plug housing • W6S and W12S wedge locks • Deutsch 0462-201-16141 contact (socket) Section 78 00-02-0880 2013-05-17 - 9 - 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...

  • Page 10: Wiring Diagram For Pv350

    Wiring Diagram for PV350 Section 78 00-02-0880 2013-05-17 - 10 - 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...

  • Page 11: Wiring Diagram For Pv380

    Wiring Diagram for PV380 Section 78 00-02-0880 2013-05-17 - 11 - 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...

  • Page 12: Pv350 And 380 Features And Operations

    PV350 and 380 Features and Operations Flat Screen Display A 3.8” QVGA monochrome LCD screen displays gauges, soft key commands, and fault messages, as well as menu options for setup and configuration. Soft Keys and Commands The five tactile push buttons on the bottom of the display correspond to the options available for the screen being displayed.

  • Page 13: Specifications

    Specifications Electrical Display 3.8” monochrome LCD Resolution QVGA, 320 x 240 pixels Orientation Landscape Backlighting LED, white Flash Memory 512kb 96kb Operating Voltage 6 - 36 VDC, protected against reverse polarity and load-dump Power 10 W max Consumption CAN 2.0B Protocols J1939, FreeForm CAN PV350: 6 pin Deutsch connector and 5 pin M12 connector...
  • Page 14 Mounting Hole Options Section 78 00-02-0880 2013-05-17 - 14 - 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...
  • Page 15 (THIS PAGE INTENTIONALLY LEFT BLANK) Section 78 00-02-0880 2013-05-17 - 15 - 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...
  • Page 16 1-800-548-1191 - http://www.partdeal.com - info@partdeal.com...
