Summary of Contents for Murphy PowerView PV780

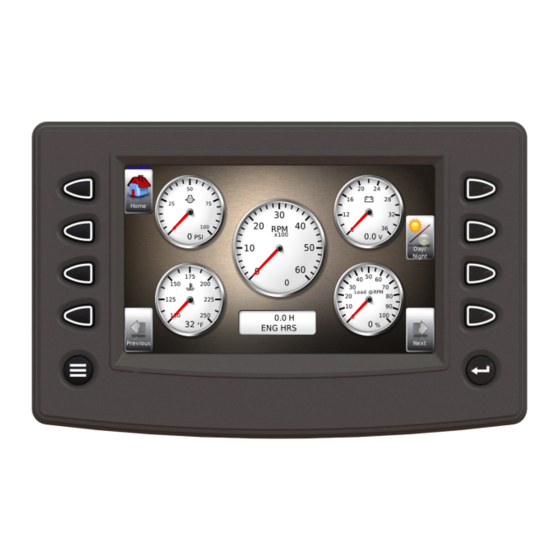

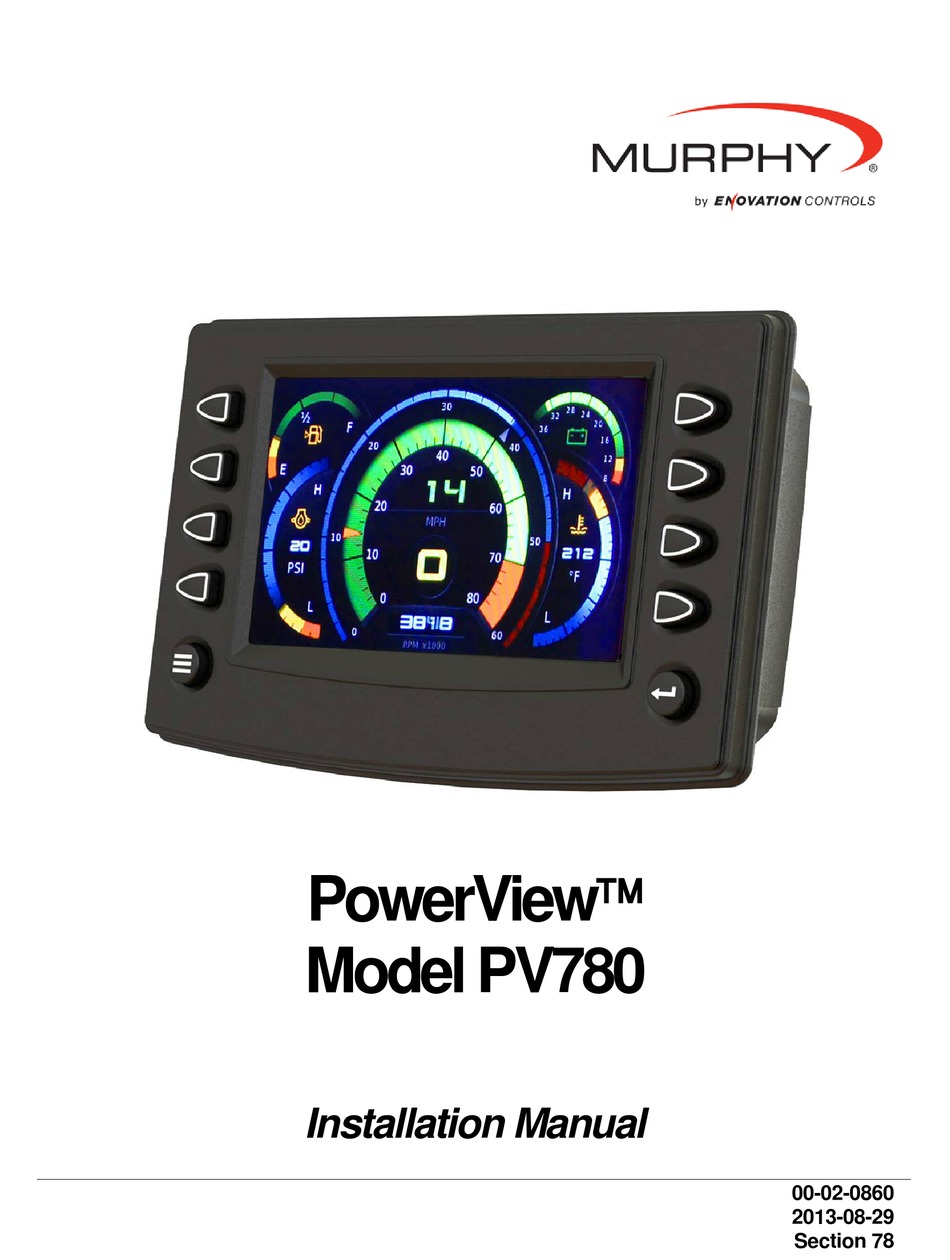

- Page 1 PowerView Model PV780 Installation Manual 00-02-0860 2013-08-29 Section 78...
- Page 2 In order to consistently bring you the highest quality, full featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at www.fwmurphy.com. Please read the following information before installing. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: Read and follow all installation instructions.
-
Page 3: Table Of Contents
Table of Contents Hardware Installation ......................... 1 Inspecting Package Contents ..................1 Dash-Mounted Installation....................1 RAM™ Mount Option ....................3 Wiring Information ........................4 Pin Out Specifications ....................4 Wiring Schematics – Black Connector .................5 Wiring Schematics – Grey Connector ................6 Specifications ..........................7... - Page 4 (THIS PAGE INTENTIONALLY LEFT BLANK)
-
Page 5: Hardware Installation
NOTE: When using the paper template from the manual, if you downloaded this document from the FW Murphy website, be aware that the pdf file may not automatically print to scale. When submitting the file for print, you will need to select “None”... - Page 6 Mounting the Unit 1. Place the back side of the display through the opening in the dash. 2. Use the four screws to line up the unit with the drilled holes. 3. Push the unit through the opening and screws through the drilled holes until the back of the case is flush.
-
Page 7: Ram™ Mount Option
RAM™ Mount Option Support Bracket Murphy designed a special bracket to support the PV780 display with RAM mount C size components. PV780 Bracket for RAM Mount Option Part Number Description Order Details Bracket and Screw Kit for PV780 Display Call your regional sales office... -
Page 8: Wiring Information
Wiring Information Pin Out Specifications Signal Definitions CAN: 3 ports according to CAN specification 2.; 1 port isolated according to NMEA 2000 USB 2.0 host Video input (optional): NTSC/PAL Inputs (3) 0-5 VDC analog inputs, (1) input configurable to support measurement frequencies from 2 Hz - 10kHz values from 0-100% duty cycle Output: Digital, capable of sinking 500mA. -
Page 9: Wiring Schematics - Black Connector
Wiring Schematics – Black Connector WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-0860 2013-08-29 - 5 -... -
Page 10: Wiring Schematics - Grey Connector
Wiring Schematics – Grey Connector WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-0860 2013-08-29 - 6 -... -
Page 11: Specifications
Specifications Electrical Display 7” / 178mm color transmissive TFT LCD Resolution WVGA, 800 x 480 pixels, 16-bit color Aspect Ratio 16:9 Orientation Landscape or portrait Backlighting LED, 1000 cd/m2 (40,000 hours lifetime) Microprocessor Freescale™ i.MX357, 32bit, 532 MHz Operating System QNX®... - Page 12 Environmental Operating Temperature -40° C to +85° C Storage Temperature -40° C to +85° C Protection IP66 and 67, front and back Vibration Random vibration, 7.86 Grms (5-2000Hz), 3 axis Shock ± 50G in 3 axis Mechanical (W x H) 8.37 x 6.0 in (212.5 x 152.3mm) landscape Dimensions Unit Depth –...
- Page 13 Dimensions for Installation Section 78 00-02-0860 2013-08-29 - 9 -...
- Page 14 (THIS PAGE INTENTIONALLY LEFT BLANK)
- Page 16 (THIS PAGE INTENTIONALLY LEFT BLANK)
- Page 17 北京 信德迈科技（北京）有限公司 ＣＮＭＥＣ Ｔｅｃｈｎｏｌｏｇｙ 地址：北京市朝阳区安贞桥胜古中路２号金基业大厦２０１室 邮编：１０００２９ ＊Ｔｅｌ： ０１０－８４２８ ２９３５ ｜ ＊ Ｆａｘ： ０１０－８４２８ ８７６２ ＊手机：１３９ １０９６ ２６３５ ＊电子邮件： ｓａｌｅｓ＠ｃｎｍｅｃ．ｂｉｚ 主页：ｈｔｔｐ：／／ｗｗｗ．ｃｎｍｅｃ．ｂｉｚ...
