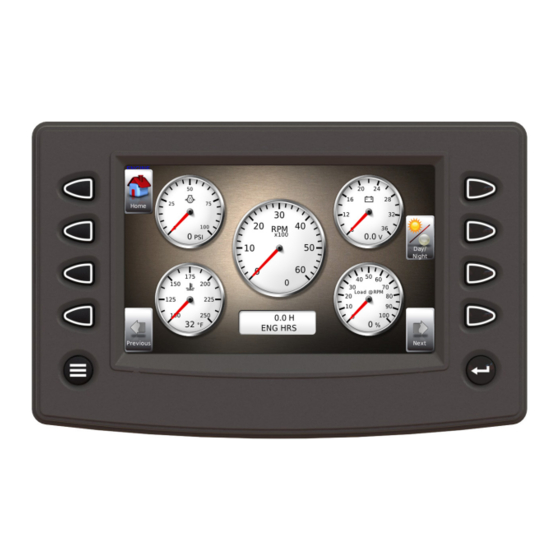

Murphy PowerView PV780 Operation Manual
  1. Manuals
  2. Brands
  3. Murphy Manuals
  4. Monitor
  5. PowerView PV780
  6. Operation manual

Murphy PowerView PV780 Operation Manual

Hide thumbs Also See for PowerView PV780:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
PowerView
®
Model PV780
Operations Manual
00-02-0859
2016-06-30
Section 78

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerView PV780 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Murphy PowerView PV780

Summary of Contents for Murphy PowerView PV780

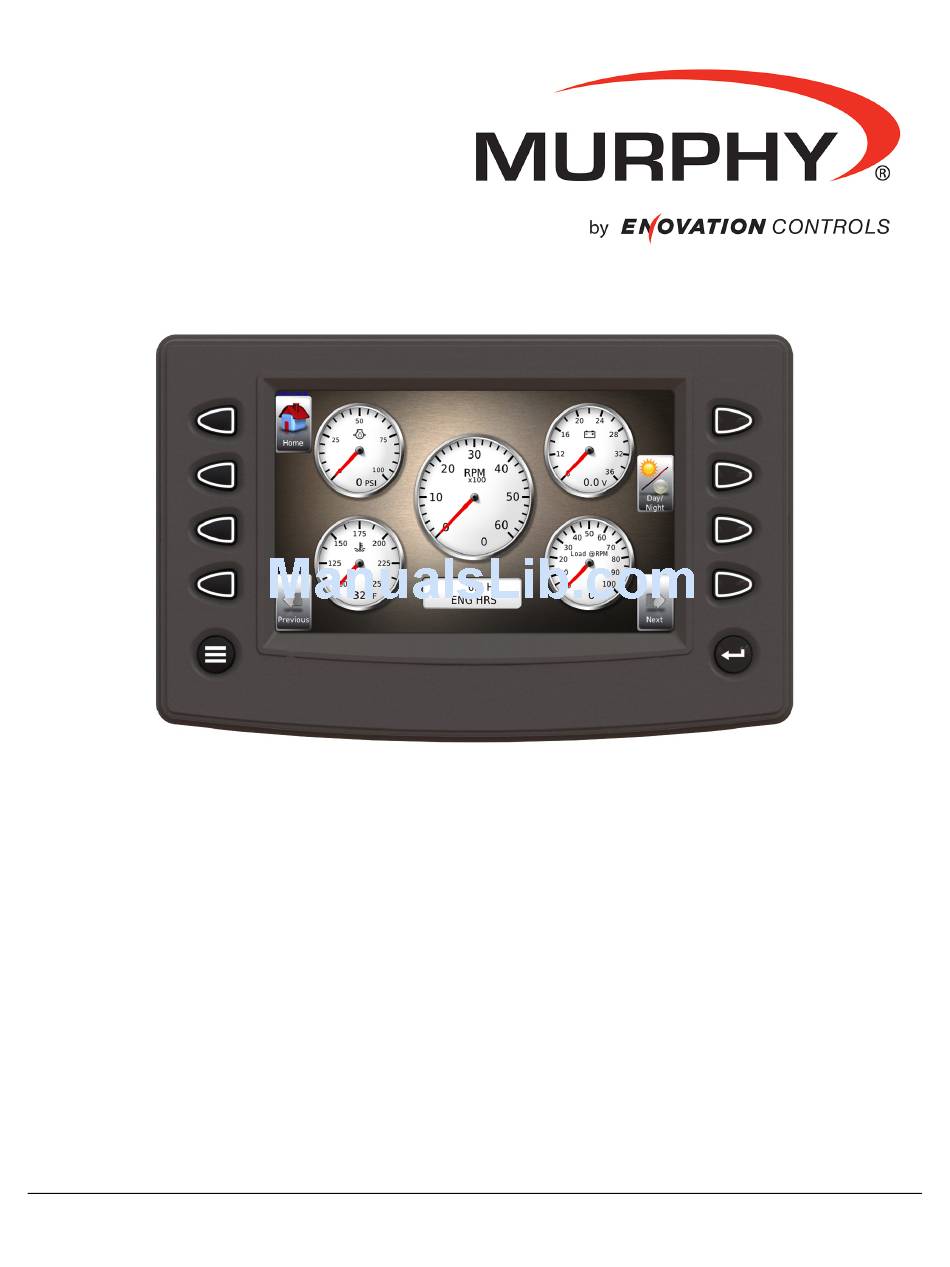

  • Page 1 PowerView ® Model PV780 Operations Manual 00-02-0859 2016-06-30 Section 78...
  • Page 2 In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at www.fwmurphy.com. Please read the following information before installing. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: Read and follow all installation instructions.

  • Page 3: Table Of Contents

    Table of Contents PV780 Features and Operations ....................1 Setting Up your PV780 Display for the First Time ..............2 Product Features ........................4 Power Up ........................4 Main Menu ........................4 Gauge Display ......................5 Fault Code Pop-ups .....................7 User Settings ........................8 Utilities........................
  • Page 4 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 5: Pv780 Features And Operations

    PV780 Features and Operations Flat Screen Display A color screen displays gauges, soft key commands, and fault messages, as well as menu options for setup and configuration. Soft Key Commands Columns of vertical commands may be located to the left and/or right of the display. They will change according to the options available for the screen being displayed.

  • Page 6: Setting Up Your Pv780 Display For The First Time

    Setting Up your PV780 Display for the First Time The guidelines presented below are intended for setting up the PV780 display for the first time. Once the configuration is set up, there is no need to revisit or change any of the settings. NOTE: If you require assistance during the set up process, contact Enovation Controls customer support at the office nearest to you (see page 16).
  • Page 7 3. From the Utilities sub-menu, select System Settings. The following screen is displayed 4. With the cursor highlighting the J1939 source addresses, use the left side soft keys to scroll through the ports and the right side soft keys to change the address. Press the Save key to save selected changes or the Restore Defaults key to return to the default settings.

  • Page 8: Product Features

    Product Features Power Up The PowerView display is most frequently installed with power connected to the ignition. When the ignition is turned on, the PowerView display powers up and the engine health statistics can be viewed via preset gauges. To see more gauge screens, press the Enter key. Main Menu The main menu is activated at any time by pressing the Menu key on the display.

  • Page 9: Gauge Display

    • User Settings – allows you to customize the display options for ambient light and brightness, set US or metric units, language, specify the Home screen and screen setup status. • Utilities – allows configuration of the plug address. Also displays software version information at the top of the page.
  • Page 10 Home - This one-touch navigation feature allows a pre-defined Home screen to be accessed from the available Gauge Display screens. Once selected, the Home screen will be displayed anytime the Home key is pressed. NOTE: For instructions on how to setup the Home screen, refer to the User Settings section of this manual.

  • Page 11: Fault Code Pop-Ups

    Fault Code Pop-ups A fault condition will trigger a popup dialog box on the screen describing the nature of the fault. Corresponding red or amber fault lights on the corners of the unit are also activated to indicate the severity of the fault. The following screen is an example of warning fault code popup. How to Hide/Show Faults To hide the fault code popup being displayed on the screen, press the soft key on the right next to the Hide icon.

  • Page 12: User Settings

    User Settings User Settings provides options to specify viewing preferences for the PV750 Display. Pressing Up and Down navigates through the options. To change an option, press the corresponding soft key next to the desired soft key command. Ambient Light Night and Day options are provided for ambient lighting.
  • Page 13 Brightness You can set the brightness control by using the soft keys to change the settings in +1% and +5% increments until the desired brightness is achieved. NOTE: Brightness level will change with ambient light setting. Two brightness levels are saved; one for day and one for night. Units Select how units are displayed by using the soft keys to select from the following: •...

  • Page 14: Restore Defaults

    Language This option allows you to select the language that will be displayed on the PowerView. Available languages include English, French, Spanish, German, Italian, and Chinese. Languages are selected from the soft keys. Press More to view additional languages. Save Once all changes have been made, press Save.

  • Page 15: Utilities

    Utilities Utilities allow you to reset external gauges and configure communication settings. It is typically only accessed when the unit is first installed in order to configure the unit. The following sub- menu is displayed when Utilities is selected. System Settings The System Settings screen displays the current software version loaded on the PV750 display.

  • Page 16: Service Reminders

    Service Reminders This option allows you to reset the 5 built-in service reminders: • Change Engine Oil – Default interval 50.0 Hrs. • Chang Air Filters – Default interval 75.0 Hrs. • Change Hydraulic Oil – Default interval 100.0 Hrs. •...

  • Page 17: Software Updates

    Software Updates Upload a New Configuration File to the Display 1. This display accepts a USB Drive and SD card to upload a new configuration file. Choose one or the other. a. Obtain a FAT32 formatted USB thumb drive or a SDSC (SD) card. b.
  • Page 18 CAUTION: Avoid damaging the Display. If you lose power to the display or connection to the USB or SD drive during the download, the display will be damaged and must be sent back to the factory . 2. Power-off the Display. (Unplug the power connector from the back side of the display.) 3.
  • Page 19 6. With the USB drive or the SD card installed, press and hold the enter key (bottom right) on the display for a few seconds as you Power-on the display. The system will boot up in configuration mode. Using USB drive Using SD card 7.
  • Page 20 9. Allow the display to automatically reboot when you see the Check Mark Screen momentarily. 10. You have successfully uploaded the new update file when you see the Murphy screen momentarily display. 11. Power-Off the display and remove the components: a.
  • Page 21 THIS PAGE INTENTIONALLY LEFT BLANK...
