DigitaLinx DL-HDM88A-H2 Quick Install Manual

Hide thumbs Also See for DL-HDM88A-H2:

Advertisement

Table of Contents

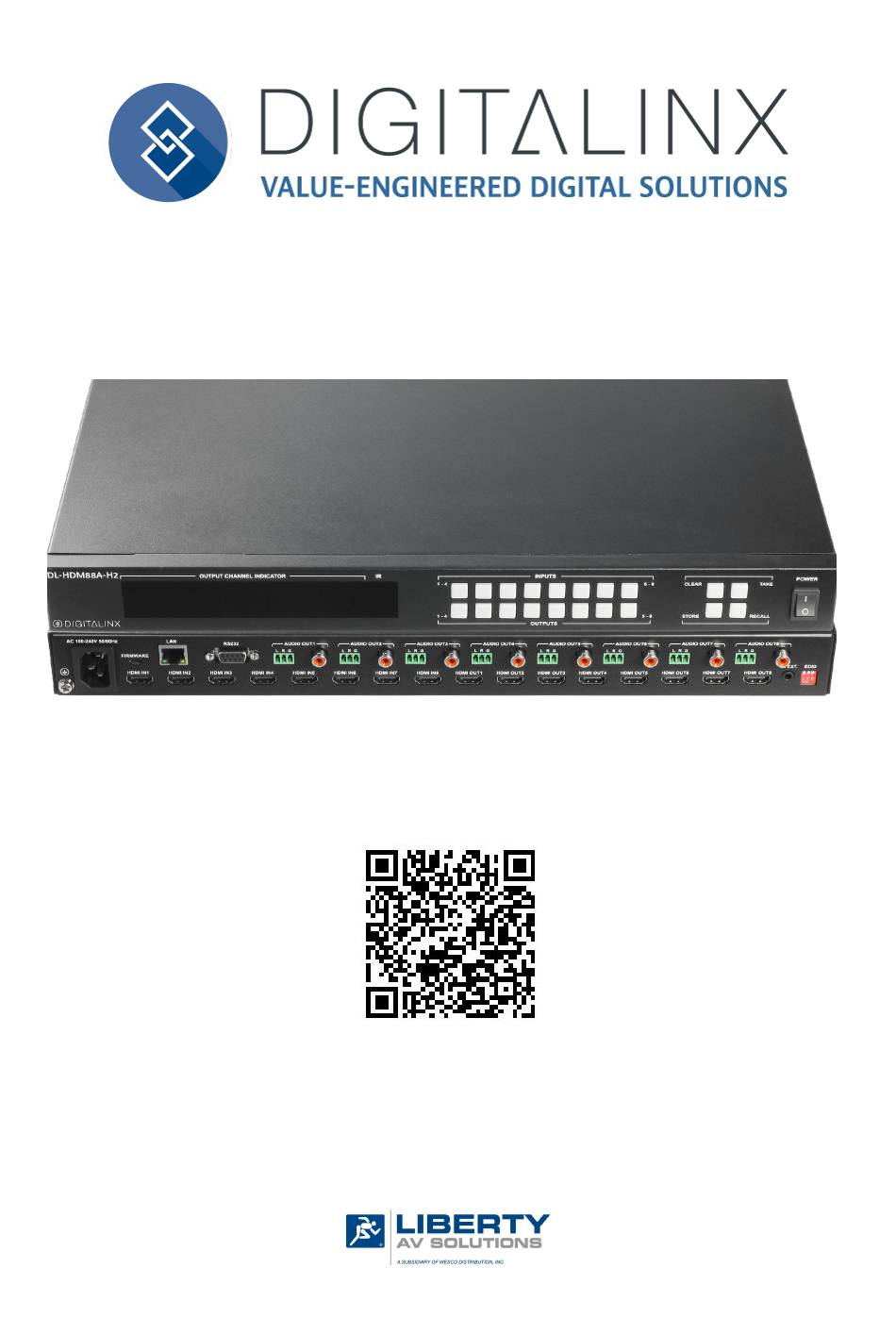

DL-HDM88A-H2 Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 180822
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80918
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HDM88A-H2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DigitaLinx DL-HDM88A-H2

Summary of Contents for DigitaLinx DL-HDM88A-H2

  • Page 1 DL-HDM88A-H2 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 180822...

  • Page 2: Product Overview

    HDMI input as well as an Easy EDID analyzer. The analog and digital audio outputs on the DL-HDM88A-H2 can be set to follow the HDMI video route or can be independently routed either by API or web control interface. Built in re-clocking circuitry ensures the switcher is backwards compatible with sources with older HDMI version chip sets.
  • Page 3 DL-HDM88A-H2 Quick Guide Front Panel View 1. OUTPUT CHANNEL INDICATOR - Indicates input for output port 1-8 2. IR - Receives signals from IR remote 3. INPUT 1-8 - Input 1-8 selection buttons 4. OUTPUT 1-8 - Output 1-8 selection buttons 5.
  • Page 4 DL-HDM88A-H2 Quick Guide Rear Panel View 1. AC - AC power cord input 2. HDMI IN (1-8) - HDMI input ports for connections to HDMI video sources 3. HDMI IN (1-8) - HDMI output ports for connections to displays 4. IR EXT. - 3.5mm IR input port for connection to IR extension cable 5.
  • Page 5 9. Switch between sources and displays using the matrix front panel buttons, IR remote control, serial RS232, or LAN. To set a route using the front panel of the DL-HDM88A-H2, press the desired Input button (Source) and desired Output button (Display), then press Take.

  • Page 6: Ethernet Control

    DL-HDM88A-H2 Quick Guide Cabling Wiring Requirements Ethernet Control The DL-HDM88A-H2 may be controlled via Ethernet through a web browser interface. The TCP/IP port requires a standard straight-through Category 5 or greater cable with the TIA/EIA-568B crimp TIA/EIA-568B pattern for optimal operation.

  • Page 7: Technical Specifications

    DL-HDM88A-H2 Quick Guide Technical Specifications Input/Output Connections HDMI Inputs Four (8) HDMI Type A Receptacle HDMI Outputs Four (8) HDMI Type A Receptacle One (1) 3.5mm TRS TCP/IP One (1) 8P8C Port (Shielded RJ45 Female) RS232 One (1) DB9 Port Female...
  • Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
