Page 3
DL-44E-KIT Installation Guide Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
DL-44E-KIT Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels DL-44E-KIT ��������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels DL-HD70LS-RX ��������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Mount the Matrix �����������������������������������������������������������������������������������������������������������������������������������������...

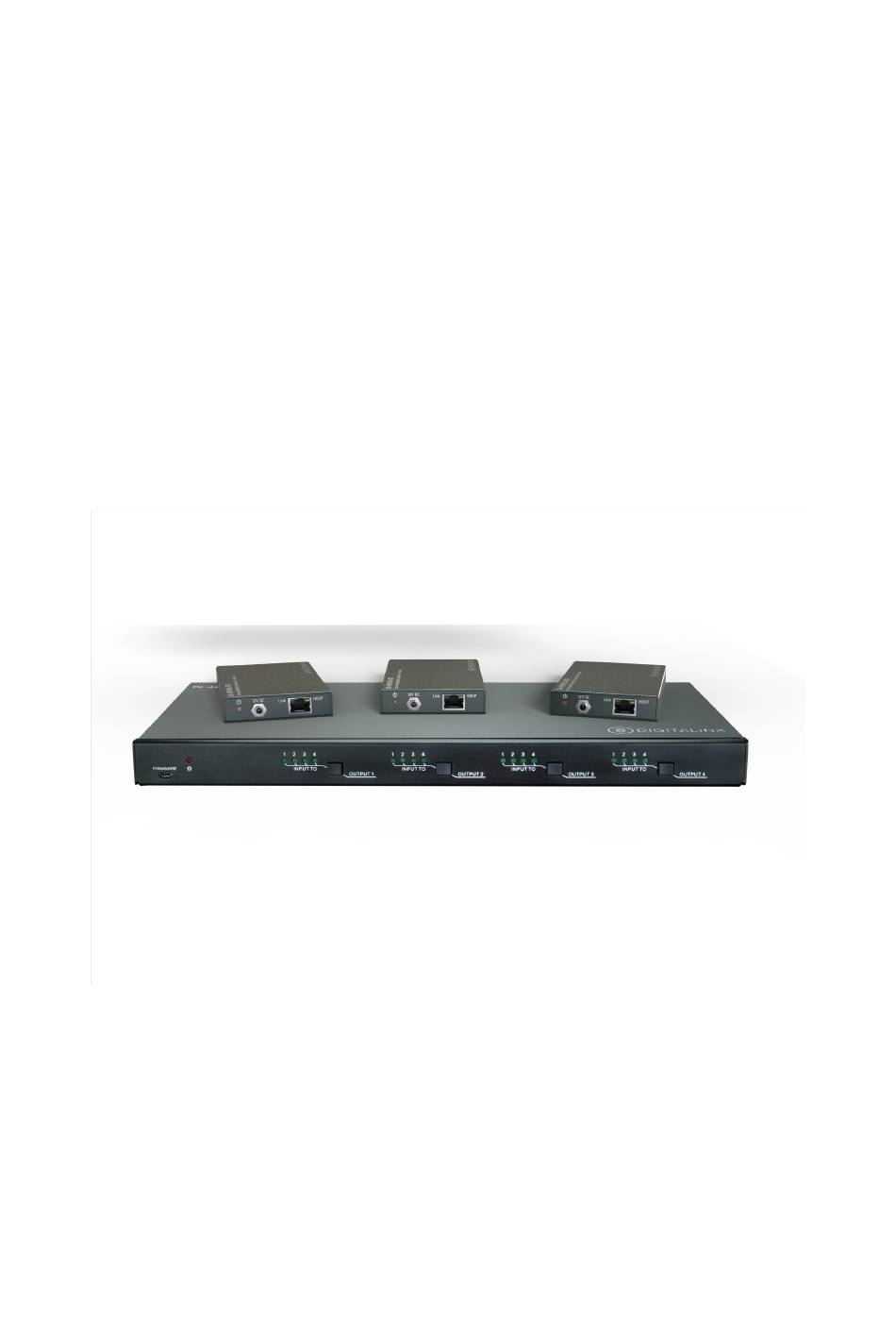

The DL-HD70LS-RX is an HDBaseT Receiver that consists of the following inputs and outputs, 1 HDBaseT IN, 1 IR IN, 1 IR OUT and HDMI OUT. The receiver is powered directly by the DL-44E-KIT. All HDMI inputs can be selected by either the front panel buttons, IR, RS232 or GUI. The selected source is delivered to HDBaseT zoned outputs 1-3 &...
DL-44E-KIT Installation Guide DL-44E-KIT Front and Rear Panels Front Panel FIRMWARE INPUT TO INPUT TO INPUT TO INPUT TO OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 FIRMWARE Power Indicator INPUT Selector Indicators Output selector button Rear Panel INPUTS IR IN...
DL-44E-KIT Installation Guide DL-HD70LS-RX Front and Rear Panels Front Panel HDMI OUT IR IN IR OUT HDMI OUT IR IN IR OUT Rear Panel 12V DC HDCP Power Indicator TP IN The RJ45 socket has two LED status indicators. Plug in the Pre-installed CAT cable in to the HDBT RJ45 socket.
Installation Instructions Mount the Matrix At least 2 inches of free air space is required on both sides of the DL-44E-KIT for proper side ventilation. Avoid mounting the DL-44E-KIT near a power amplifier or any other source of significant heat.
DL-44E-KIT Installation Guide System Operations The Matrix Switcher can be controlled via the front panel. Please follow the basic programing instructions below: To convert one input to an output: Example: Input 1 to Output 3 -Press INPUTS 1 + OUTPUTS 3 + ENTER...
DL-44E-KIT Installation Guide Control Far-end Device locally Connect an IR receiver with IR carrier to the IR IN port of the Matrix Switcher; users can control far-end output display via its IR remote from local. In that case, the IR signal is transferred via twisted pair. Only the corresponding IR OUT port can emit control signals to the remote display.
Connect a computer to the TCP/IP port of the Matrix Switcher, and set its network segment to the same as the Matrix Switcher’s. DL-44E-KIT provides a built-in GUI for convenient TCP/IP control. GUI allows users to interact with the DL-44E-KIT through graphical icons and visual indicators. Type 192.168.0.178 in your browser to access the web GUI.
DL-44E-KIT Installation Guide Web Browser Control Log In Screen : There are 2 selectable usernames – admin (default password: admin) and user (default password: user). Log in as admin can access more configuration interfaces than user. Enter username and the right password.
EDID (Extended Display Identification Data) is data generated from each display in the system to communicate the capabilities of the device. The DL-44E-KIT features EDID management to maintain compatibility between all devices. It can be controlled via EDID learning and EDID invoking.
DL-44E-KIT Installation Guide RS232 Commands Except the front control panel, the Matrix Switcher can be controlled by far-end control system through the RS232 communication port. This RS232 communication port is a 3-pin phoenix connector. User can use the RS232 cable (Phoenix to 9-pin D-Sub) to connect the RS232 port to PC.
Page 16
DL-44E-KIT Installation Guide Operation Commands Description Command Example Response [x]All. X To All. (X=01~04) Transfer signals from the input channel [x] to all output channels All#. All Through. Transfer input signals corresponding output channels All$. All Closed. Switch off all the output channels.
Page 17
DL-44E-KIT Installation Guide Description Command Example Response PWON. PWON Work in normal mode. PWOFF. PWOFF Enter into standby mode and cut off the power supply to HDBaseT receivers. STANDBY STANDBY Enter into standby mode. (Do not cut off the power supply to HDBaseT receivers, press other buttons or send other commands to start.)
Page 18
DL-44E-KIT Installation Guide Description Command Example Response %0911. Factory Default Reset to factory default. %9951. Port 1:data when PWON Check the command sent by port 1 when PWON. %9952. Port 2:data when PWON Check the command sent by port 2 when PWON.
DL-44E-KIT Installation Guide Troubleshooting Loss of color or no video signal output » Check whether the cables are connected correctly and in working condition. » Swap HDMI cables. » Test the source device directly to display/ projector. » Test with another source.
DL-44E-KIT Installation Guide DL-HD70LS-RX Technical Specifications Supported Audio and Video Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
Page 24
Thank you for your purchase. Please contact us with your questions and comments. 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998 www.libav.com Digitalinx is a brand of:...
