DL-S42-H2 Owners Manual
Rev 191210
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-S42-H2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DigitaLinx DL-S42-H2

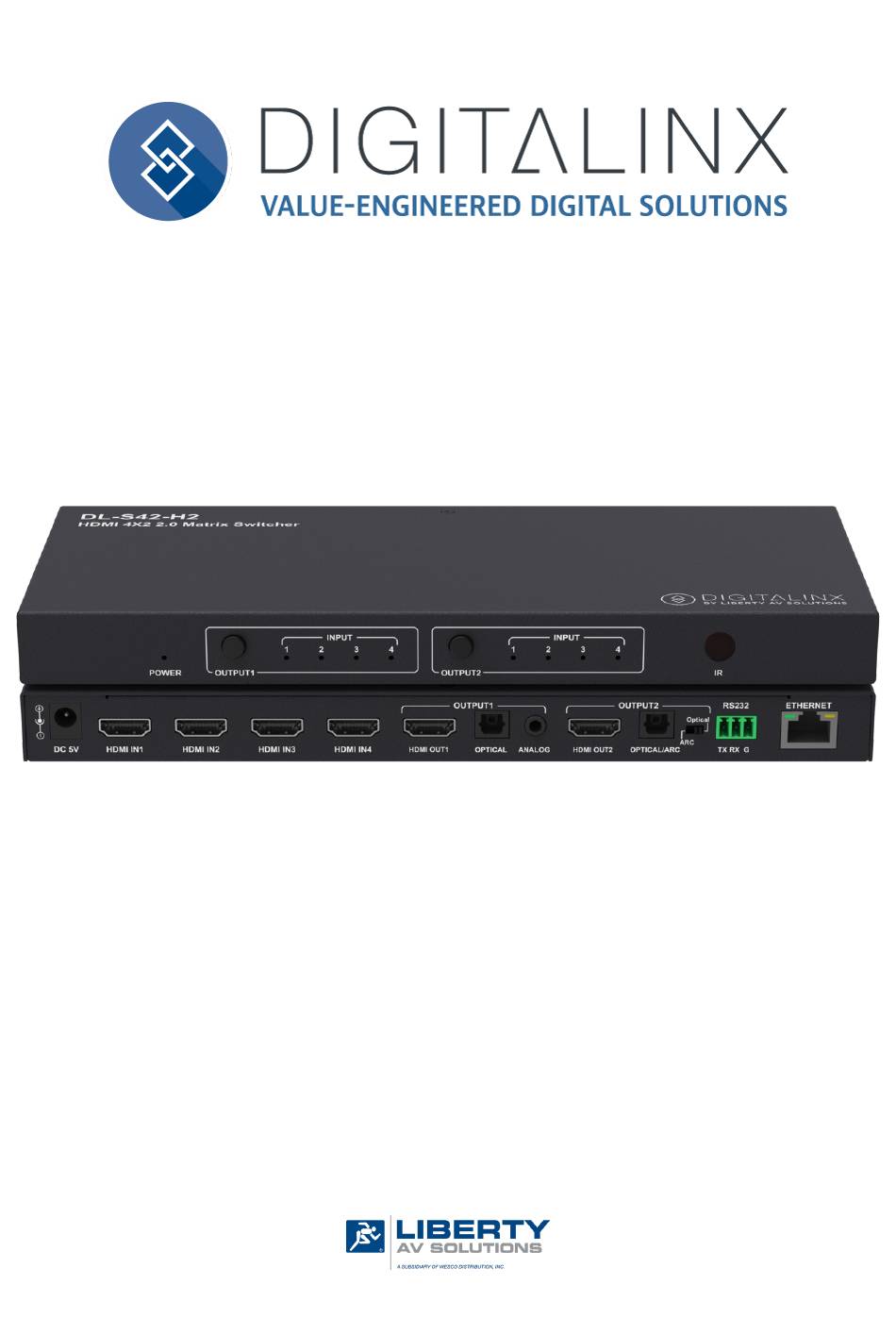

  • Page 1 DL-S42-H2 Owners Manual Rev 191210 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
  • Page 2: Important Safety Instructions

    DL-S42-H2 Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 3: Table Of Contents

    DL-S42-H2 Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Product Contents ���������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Front / Back Panel ����������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Mount the Matrix ����������������������������������������������������������������������������������������������������������������������������������������� Mounting Instructions ..........................Connect Sources �������������������������������������������������������������������������������������������������������������������������������������������� Connect Displays ������������������������������������������������������������������������������������������������������������������������������������������� Connect Audio (Optional) ������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Product Overview

    HDMI outputs with HDCP 2.2 support and capable of handling resolutions up 4K@60Hz 4:4:4 / 8 bit color with static and dynamic HDR output support. The DL-S42-H2 supports digital optical audio de-embedding from both outputs and analog audio de-embedding from output 1. The switcher...
  • Page 5: Front And Rear Panels

    DL-S42-H2 Installation Guide Front and Rear Panels Front / Back Panel 10 11 13 14 15 1. POWER LED • When ON; Device is powered on • When OFF; Device is powered off 2. OUTPUT1 - Output 1 input selection button 3.
  • Page 6: Installation Instructions

    Installation Instructions Mount the Matrix At least 2 inches of free air space is required on both sides of the DL-S42-H2 for proper side ventilation. Avoid mounting the DL-S42-H2 near a power amplifier or any other source of significant heat.
  • Page 7: Connect Audio (Optional)

    DL-S42-H2 Installation Guide Connect Audio (Optional) Connect an audio amplifier to the audio output of the DL-S42-H2, the switcher features a 3.5mm analog audio output on output 1 and digital output on output 1 and output 2. NOTE: On output 2, you can choose to de-embed the audio either from a routed input or via ARC from a connected smart TV.
  • Page 8: Connect Ethernet (Web Browser) Control (Optional)

    DL-S42-H2 Installation Guide Connect Ethernet (Web Browser) Control (Optional) The DL-S42-H2 may be controlled via Ethernet through a web browser interface. The TCP/IP port requires a standard straight-through Category 5 or greater cable with the TIA/EIA-568B crimp pattern for optimal operation.
  • Page 9: A/V Diagram

    DL-S42-H2 Installation Guide A/V Diagram...
  • Page 10: Web Browser Control / System Settings

    DL-S42-H2 Installation Guide Web Browser Control / System Settings Logging In Open a web browser and type in IP address of the DL-S42-H2. The default IP address is 192.168.1.254. Be sure the computer you are using to connect to the DL-S42-H2 is in the same IP range.
  • Page 11: Audio / Video Switching

    DL-S42-H2 Installation Guide Audio / Video Switching The VIDEO menu allows you to route inputs to the outputs of the matrix switcher. To switch the video route, check the HDMI IN1-IN4 buttons corresponding to the desired output. Audio Mute The AUDIO menu allows you to mute/un-mute various audio outputs.
  • Page 12: Display Control

    DL-S42-H2 Installation Guide Display Control The Display Control menu allows you to control the connected display via CEC/HDMI as well as automat the display on or off based on presense of signal. To control the display connected to an output using CEC via the connected HDMI cable, make sure that a CEC compatible TV display is used.
  • Page 13: Edid Settings For Inputs

    DL-S42-H2 Installation Guide EDID Settings for Inputs The EDID menu allows you to select a desired EDID table to used for source compatibility communication. To select a pre-defined EDID setting, choose the desired EDID in the drop down menu for each input and then click Confirm.
  • Page 14: Network Settings

    Network Settings The Network menu allows you to set the IP address mode to either Static or DHCP, by default the DL-S42-H2 is set to Static mode with a pre-defined IP address of 192.168.1.254 / subnet 255.255.255.0 and gateway set to 192.168.1.1...
  • Page 15: Change Password

    DL-S42-H2 Installation Guide Change Password The System menu allows you to change the password credentials for the admin login To change the password for the admin login, enter in the desired password then click Confirm...
  • Page 16: Ir Remote Control

    DL-S42-H2 Installation Guide IR Remote Control The DL-S42-H2 includes a IR remote which performs routing functions available on the front panel of the switcher and allow the ability to turn the display on/off using CEC 1. Turns display connected to output 1 on/off using CEC/HDMI 2.
  • Page 17: Rs232 And Tcp/Ip Control Configuration

    All responses end in a carriage return (hex 0D) and a line feed (hex 0A). <CR> = Carriage return (Hex 0D) <LF> = Line Feed (Hex 0A) Video Switching Source switching for the DL-S42-H2 can be performed manually with the command strings below. Description Command Example SET SW {i} {o} Command: SET SW in1 out1<CR><LF>...
  • Page 18: Cec Setup And Control

    DL-S42-H2 Installation Guide CEC Setup and Control A CEC enabled displays ON and OFF status can be controlled by the DL-S42-42 via HDMI. By default the CEC control option is always on, simply turn the CEC option ON in the display menu settings to use this control capability.
  • Page 19: Edid Configuration

    DL-S42-H2 Installation Guide EDID Configuration EDID can be configured for each input using the commands below. By default EDID for an input is copied to the routed output, if an input is routed to both outputs it will copy from output 1. If EDID fails the default EDID will set to 3840x2160.
  • Page 20: System Settings / Factory Default

    DL-S42-H2 Installation Guide System Settings / Factory Default Description Command Response GET VER Command: GET VER<CR><LF> Query Device Version Return: VER 1.0 <CR><LF> RESET Command: RESET<CR><LF> Factory Reset Return: RESET<CR><LF> REBOOT Command: REBOOT<CR><LF> Reboot Return: REBOOT<CR><LF>...
  • Page 21: Technical Specifications

    DL-S42-H2 Installation Guide Technical Specifications Input/Output Connections HDMI Inputs Four (4) HDMI Type A Receptacle HDMI Outputs Two (2) HDMI Type A Receptacle TCP/IP One (1) 8P8C Port (Shielded RJ45 Female) RS232 One (1) 3 pin Phoenix connector Audio - One (1) Analog L/R audio outputs, 3.5mm connectors...
  • Page 22 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of:...
