DL-HDM88-SS Installation and
Operation Guide
Rev 160518
11675 Ridgeline Dr
Phone: 719-260-0061
Colorado Springs, CO 80921
Toll-Free: 800-530-8998
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HDM88-SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DigitaLinx DL-HDM88-SS

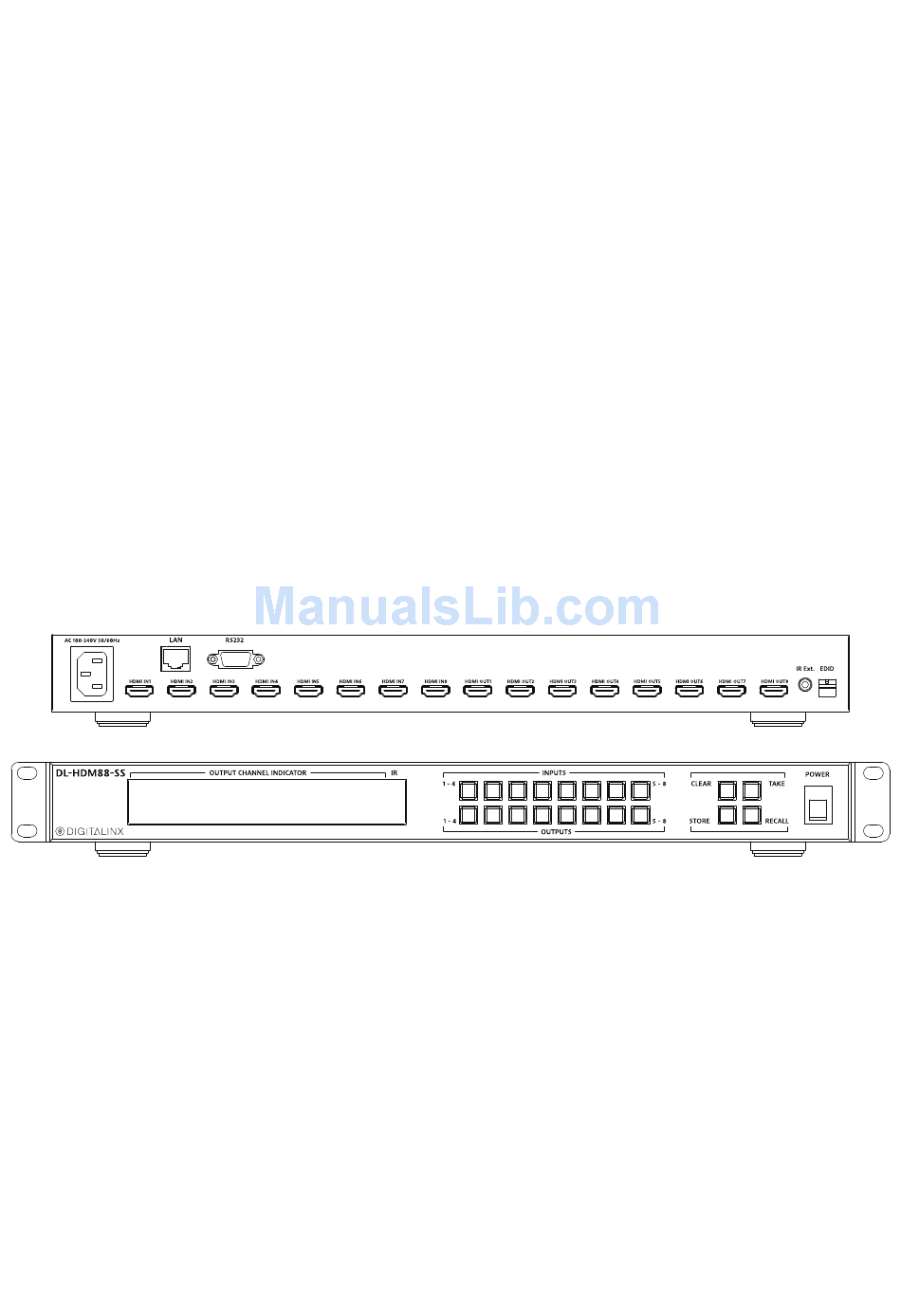

  • Page 1 DL-HDM88-SS Installation and Operation Guide Rev 160518 11675 Ridgeline Dr Phone: 719-260-0061 Colorado Springs, CO 80921 Toll-Free: 800-530-8998 Fax: 719-260-0075...
  • Page 2 DL-HDM88-SS Installation Guide...
  • Page 3 DL-HDM88-SS Installation Guide Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 4: Table Of Contents

    DL-HDM88-SS Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������� IR Remote ��������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Mount the Matrix ����������������������������������������������������������������������������������������������������������������������������������������� Shelf Mounting Instructions ........................Rack Mounting Instructions........................
  • Page 5 DL-HDM88-SS Installation Guide...
  • Page 6: Product Overview

    DL-HDM88-SS Installation Guide Product Overview The DigitaLinx DL-HDM88-SS is an eight input by eight output HDMI matrix switcher with HDCP 2.2 and a full- loading capability 4K@60Hz 4:4:4 with HDR output support for each channel. The matrix features advanced independent DIP switch for EDID management. The DL-HDM88-SS offers HDCP handling, including the ability to turn input HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.
  • Page 7: Front And Rear Panels

    DL-HDM88-SS Installation Guide Front and Rear Panels Front Panel Output Channel Indicator Output Buttons Input Buttons Front Panel Menu Selection Power Switch Rear Panel AC 100~240V 50/60Hz power supply input TCP/IP (Ethernet) control input for control via web browser RS232 control input...
  • Page 8: Ir Remote

    Installation Instructions Mount the Matrix At least 2 inches of free air space is required on both sides of the DL-HDM88-SS for proper side ventilation. Avoid mounting the DL-HDM88-SS near a power amplifier or any other source of significant heat.
  • Page 9: Connect Sources

    Switch between sources and displays using the matrix front panel buttons, IR remote control, serial RS232, or LAN. To set a route using the front panel of the DL-HDM88-SS, press the desired Input button (Source) and desired Output button ( Display), then press Take.
  • Page 10: Connect Rs232 Control

    • Parity = none Connect Ethernet (Web Browser) Control The DL-HDM88-SS may be controlled via Ethernet through a web browser interface. The TCP/IP port requires a standard straight-through Category 5 or greater cable with the TIA/EIA-568B crimp pattern for TIA/EIA-568B optimal operation.
  • Page 11: Router Connection

    Brown/White Pin 8 Brown Pin 8 Brown Web Browser Control The DL-HDM88-SS includes a web portal to allow control of the matrix via a standard web browser. The IP address is the same address that is used for TCP/IP control.
  • Page 12: Web Browser Control

    DL-HDM88-SS Installation Guide Web Browser Control Open a web browser and go to the IP address of the DL-HDM88-SS. The default IP address is 192.168.0.178. The matrix login screen will appear. The default password is 0000000000. After logging in, the main screen appears. It contains three sub- menus: 1.
  • Page 13 DL-HDM88-SS Installation Guide The matrix can be controlled over LAN, through which it may be accessed through Web GUI or Telnet after obtaining the matrix IP address. The default IP address is 192.168.0.178 Set a Static IP Address, Select Static to manually input the IP functions if no address appears or if the system is unable to detect an IP address.
  • Page 14 DL-HDM88-SS Installation Guide In Advanced Setting Login column, the users can login another setting page. The default password is 123456, click Login button, a new page appears. Copies output ports 1-8 EDID to all inputs or specific input ports. Select the output port and input port in the drop-down list, then click on Copy.
  • Page 15: Edid Management

    DL-HDM88-SS Installation Guide EDID Management EDID (Extended Display Identification Data) is data generated from each display in the system to communicate the capabilities of the device. The matrix features an EDID copy mode that can be used when the EDID’s do not...
  • Page 16: Rs232 Commands

    DL-HDM88-SS Installation Guide RS232 Commands RS232 Settings: • 9600 baud • 8 Data Bits • 1 Stop Bit • Parity = none <CR> = Carriage return. <LF> = Line feed All commands will end with <CR><LF>. All commands are in CAPS. If a command is entered incorrectly, device responds with COMMAND ERROR<CR><LF>.
  • Page 17: Matrix Routing Commands

    DL-HDM88-SS Installation Guide Matrix Routing Commands Description Command Example Response GET 01<CR><LF> 02>01<CR><LF> Get a specific output port routing information Description: Output port 1 is routed to input port 2 SET 04 02<CR><LF> 04>02<CR><LF> SET input/output Routes SET 02 ALL<CR><LF>...
  • Page 18: Edid Management Commands

    DL-HDM88-SS Installation Guide EDID Management Commands Description Command Example Response EDIDC 03 10<CR><LF> EDIDC03>01<CR><LF> Copies the EDID from the output to the EDIDC03>02<CR><LF> specified input EDIDC03>03<CR><LF> EDIDC03>04<CR><LF> EDIDC03>05<CR><LF> EDIDC03>06<CR><LF> EDIDC03>07<CR><LF> EDIDC03>08<CR><LF> This command only works when the DIP switches are in EDID copy mode.
  • Page 19: System Commands

    DL-HDM88-SS Installation Guide System Commands Description Command Example Response Saves a matrix state to one of three memory SAVE 02<CR><LF> PRESET SAVED<CR><LF> LOAD 01<CR><LF> 01>01<CR><LF> Loads a matrix state from one of three 02>02<CR><LF> memory locations 03>03<CR><LF> 04>04<CR><LF> 05>05<CR><LF> 06>06<CR><LF>...
  • Page 20: Troubleshooting

    DL-HDM88-SS Installation Guide Troubleshooting Matrix does not power on » Verify power outlet is active. » Verify continuity in power cable. Cannot view 4K content » Verify the EDID settings of the matrix. » Verify display is 4K compatible. Verify source device can output 4K content.
  • Page 21: Technical Specifications

    DL-HDM88-SS Installation Guide Technical Specifications Input/Output Connections HDMI Inputs Eight (8) HDMI Type A Receptacle HDMI Outputs Eight (8) HDMI Type A Receptacle IR All In One (1) 3.5mm TRS TCP/IP One (1) 8P8C Port (Shielded RJ45 Female) RS232 One (1) DB9 Port Female...
  • Page 22 DL-HDM88-SS Installation Guide...
  • Page 23 DL-HDM88-SS Installation Guide...
  • Page 24 Thank you for your purchase. Please contact us with your questions and comments. 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998 www.libav.com Digitalinx is a brand of:...
