DL-HDM44 Installation and

Operation Guide

Rev 140411
11675 Ridgeline Dr
Phone: 719-260-0061
Colorado Springs, CO 80921
Toll-Free: 800-530-8998
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HDM44 and is the answer not in the manual?

Questions and answers

Summary of Contents for DigitaLinx DL-HDM44

  • Page 1: Operation Guide

    DL-HDM44 Installation and Operation Guide Rev 140411 11675 Ridgeline Dr Phone: 719-260-0061 Colorado Springs, CO 80921 Toll-Free: 800-530-8998 Fax: 719-260-0075...
  • Page 2 DL-HDM44 Installation Guide...
  • Page 3: Important Safety Instructions

    DL-HDM44 Installation Guide Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 4: Table Of Contents

    DL-HDM44 Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������� IR Remote ��������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ���������������������������������������������������������������������������������������������������������������������������� Quick Start �������������������������������������������������������������������������������������������������������������������������������������������������� Mount the Matrix ��������������������������������������������������������������������������������������������������������������������������������������� Shelf Mounting Instructions .........................
  • Page 5 DL-HDM44 Installation Guide Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������� Matrix does not power on ��������������������������������������������������������������������������������������������������������������������������� Cannot view 3D content ������������������������������������������������������������������������������������������������������������������������������ Cannot view 4K content ������������������������������������������������������������������������������������������������������������������������������ Cannot hear surround sound audio ������������������������������������������������������������������������������������������������������������ Technical Specifications ����������������������������������������������������������������������������������������������������������������������������...
  • Page 6: Product Overview

    4K video resolutions, Deep Color, and 3D video. The DL-HDM44 can be controlled via front panel buttons, front panel IR, external IR, RS232, and through a web browser when the matrix is connected to a network. The matrix includes a simple IR remote control to allow IR switching.
  • Page 7: Package Contents

    DL-HDM44 Installation Guide Package Contents Please verify the following items are in the shipping box prior to installation of the DL-HDM44. DL-HDM44 IR Receiver Matrix Switcher 1 ea 1 ea Infrared Remote Control Rack Ears 1 ea 2 ea 5V DC 3.6A Power...
  • Page 8: Front And Rear Panels

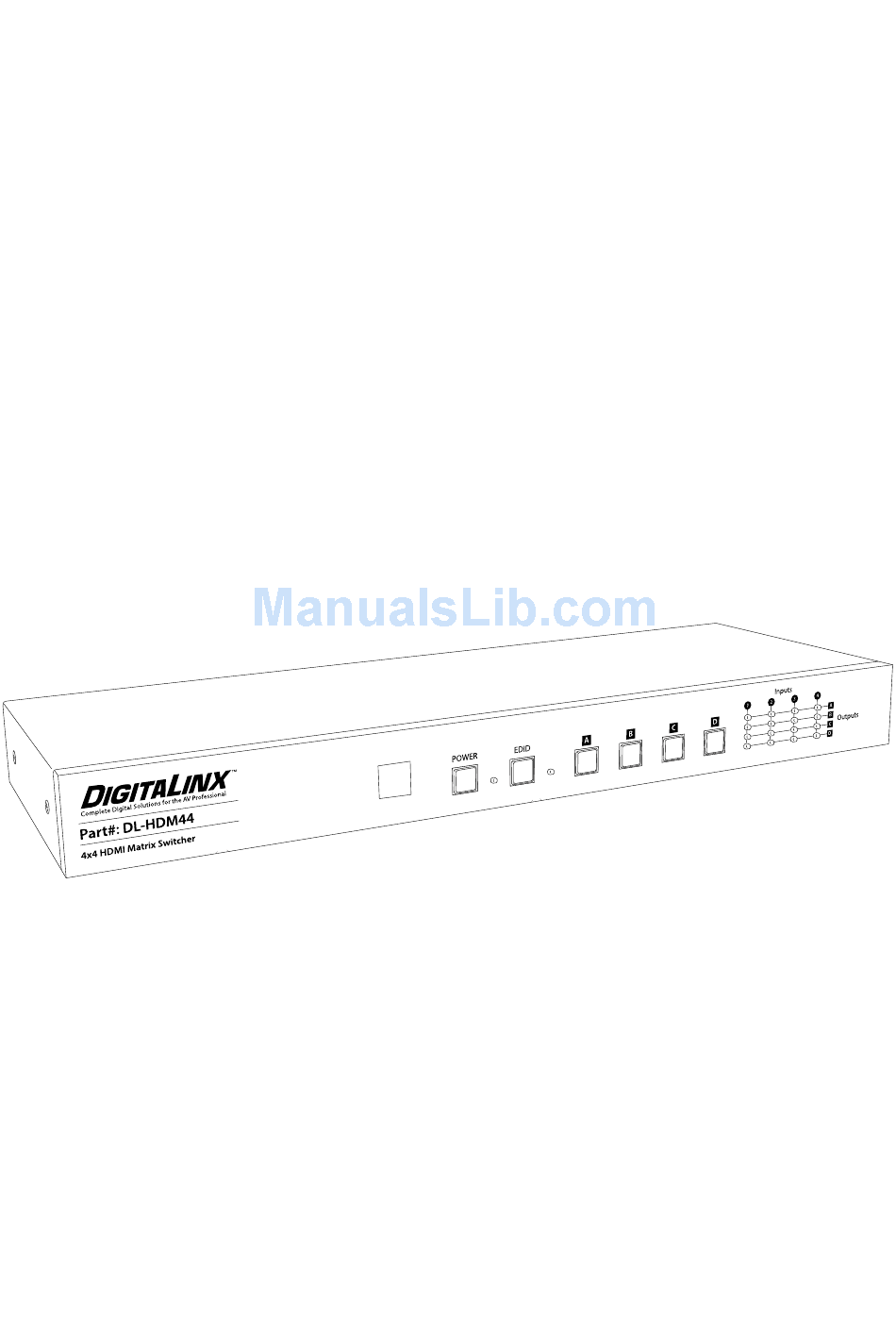

    DL-HDM44 Installation Guide Front and Rear Panels Front Panel Inputs POWER EDID Part#: DL-HDM44 Outputs 4x4 HDMI Matrix Switcher IR receiver for matrix control via IR remote Power button and LED EDID button and LED Output cycle buttons Matrix routing status LEDs...
  • Page 9: Ir Remote

    DL-HDM44 Installation Guide IR Remote The included IR remote features discrete input selection buttons for each output. It also has a power toggle button to turn off the matrix when not in use. Please see page 15 for IR Remote Operation.
  • Page 10: Installation Instructions

    Apply power Mount the Matrix At least 2 inches of free air space is required on both sides of the DL-HDM44 for proper side ventilation. Avoid mounting the DL-HDM44 near a power amplifier or any other source of significant heat.
  • Page 11: Connect Sources

    Connect External IR Control When the DL-HDM44 is installed in an equipment rack or other concealed location, access to the front panel for normal IR control may be difficult. The IR In input allows the IR remote to control the matrix via the supplied IR receiver.
  • Page 12: Connect Rs232 Control

    RS232 port on the DL-HDM44 and the controller. Connect Ethernet (Web Browser) Control The DL-HDM44 may be controlled via Ethernet through a web browser interface. The TCP/IP port requires a standard straight-through Category 5 or greater cable with the TIA/EIA-568B crimp pattern for TIA/EIA-568B optimal operation.
  • Page 13: Router Connection

    Web Browser Control The DL-HDM44 includes a web portal to allow control of the matrix via a standard web browser. The IP address is the same address that is used for TCP/IP control. See page 16 for detailed information regarding the web...
  • Page 14: Apply Power

    DL-HDM44 Installation Guide Apply Power Plug the power supply into the power input port on the rear of the matrix. Twist the collar of the power plug in a clockwise direction to secure the connection. Connect the IEC power cable into the power supply. The matrix...
  • Page 15: Front Panel And Ir Remote Operation

    The buttons on the IR remote will allow direct routing of inputs to a specific output. The Power button will send the matrix to a low power state. Pressing the Power button a second time will restore the DL-HDM44 to full power.
  • Page 16: Web Browser Control

    DL-HDM44 Installation Guide Web Browser Control Matrix Status Open a web browser and go to the IP address of the DL-HDM44. The default IP address is 192.168.0.178. The Matrix Status screen shows the power, output and EDID states of the DL-HDM44.
  • Page 17: Network Setting

    Network Setting The Network Setting tab displays the network settings for the DL-HDM44, including the MAC address and static IP or DHCP settings. To apply the changes, click the Save button. A confirmation dialog box will open to verify the changes.
  • Page 18: Edid Management

    In STD mode, the EDID for the inputs of the DL-HDM44 is 1080p with stereo audio. When in TV mode, the DL-HDM44 will read the EDID settings of the display connected to Output A. If it detects a 4K capable EDID setting it will transmit the signal in that format to the input ports. If the display on Output A is not 4K capable, the matrix will read the EDID settings of all outputs and define the best resolution that all displays can support.
  • Page 19: Rs232 Commands

    A carriage return is required at the end of all command strings. Any changes made to the matrix via front panel, IR, or web browser will be replied on the RS232 port. Control via IP is not available on the DL-HDM44� Routing Commands...
  • Page 20: Edid Commands

    DL-HDM44 Installation Guide EDID Commands Description Command Response EM1<CR> EM1<CR> Use built-in EDID EM2<CR> EM2<CR> Use EDID from Output A TCP/IP Setup Commands Description Command Response SETIP<SP><IP ADDRESS><CR> SETIP<SP><IP ADDRESS><CR> Set static IP address IP Address <IP ADDRESS> is set.<CR>...
  • Page 21: Troubleshooting

    DL-HDM44 Installation Guide Troubleshooting Matrix does not power on » Verify power outlet is active. » Verify continuity in power cable. Cannot view 3D content Select TV mode in the EDID settings. » Verify display is 3D compatible. » Verify source device can output 3D content.
  • Page 22: Technical Specifications

    DL-HDM44 Installation Guide Technical Specifications I/O Connections HDMI Inputs Four (4) HDMI Type A Receptacle Connector (1 per input) HDMI Outputs Four (4) HDMI Type A Receptacle Connector (1 per output) IR Eye One (1) 3.5 mm jack (TRS) 5V DC Power One (1) Threaded Barrel (5.5mm OD;...
