Page 3
DL-HDM88-FS Installation Guide Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
DL-HDM88-FS Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������� IR Remote ��������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Mount the Matrix ����������������������������������������������������������������������������������������������������������������������������������������� Shelf Mounting Instructions ........................Rack Mounting Instructions........................
Page 5
DL-HDM88-FS Installation Guide Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������� Matrix does not power on ��������������������������������������������������������������������������������������������������������������������������� Cannot view 4K content ������������������������������������������������������������������������������������������������������������������������������ Cannot hear surround sound audio ������������������������������������������������������������������������������������������������������������ Technical Specifications ����������������������������������������������������������������������������������������������������������������������������...
Page 6
The DL-HDM88-FS can be controlled via front panel buttons, front panel IR, external IR, remote IR, RS232, and Ethernet. The matrix includes a simple IR remote control to allow IR switching. The matrix also features a full command set for RS232 and Ethernet control with third party control systems, plus control via a web browser.
Page 7

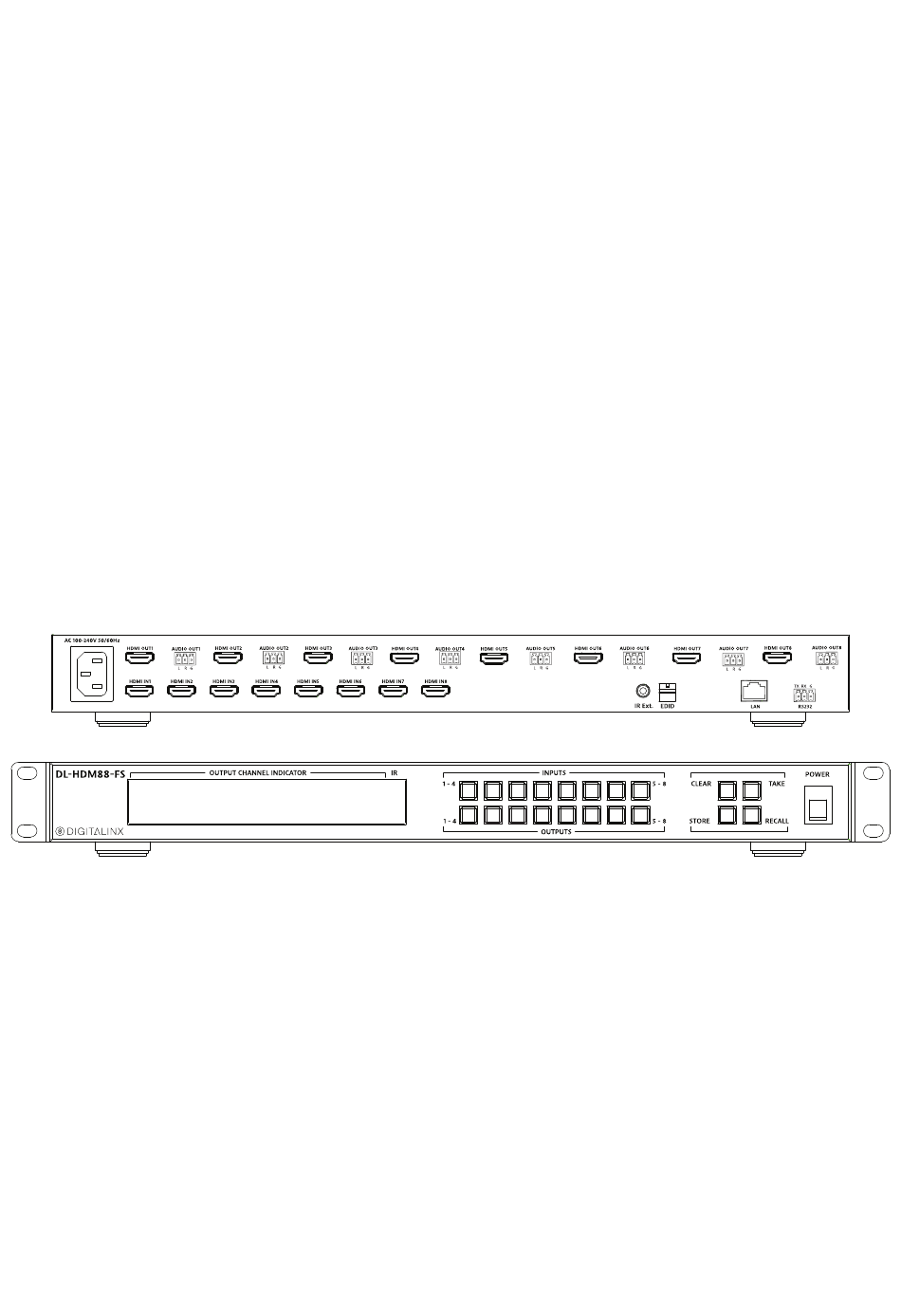

DL-HDM88-FS Installation Guide Front and Rear Panels Front Panel Output Channel Indicator Output Buttons Input Buttons Front Panel Menu Selection Power Switch Rear Panel AC 100~240V 50/60Hz power supply input HDMI Outputs Audio Outputs HDMI Inputs IR Extension EDID DIP Switch...
Installation Instructions Mount the Matrix At least 2 inches of free air space is required on both sides of the DL-HDM88-FS for proper side ventilation. Avoid mounting the DL-HDM88-FS near a power amplifier or any other source of significant heat.
Switch between sources and displays using the matrix front panel buttons, IR remote control, serial RS232, or LAN. To set a route using the front panel of the DL-HDM88-FS, press the desired Input button (Source) and desired Output button ( Display), then press Take.
• Parity = none Connect Ethernet (Web Browser) Control The DL-HDM88-FS may be controlled via Ethernet through a web browser interface. The TCP/IP port requires a standard straight-through Category 5 or greater cable with the TIA/EIA-568B crimp pattern for TIA/EIA-568B optimal operation.
Brown/White Pin 8 Brown Pin 8 Brown Web Browser Control The DL-HDM88-FS includes a web portal to allow control of the matrix via a standard web browser. The IP address is the same address that is used for TCP/IP control.
DL-HDM88-FS Installation Guide Web Browser Control Open a web browser and go to the IP address of the DL-HDM88-FS. The default IP address is 192.168.0.178. The matrix login screen will appear. The default password is admin. After logging in, the main screen appears. It contains three sub- menus: 1.
Page 13
DL-HDM88-FS Installation Guide Video input setting: Give the sources different names which will be easier for the users to remember, user can modify port names in this column. Click on Save to save these modifications, click Reset to reset the name.
Page 14
DL-HDM88-FS Installation Guide Resolution Selecting: Set the resolution of the HDMI OUT when connected to display devices. CEC Control: Click Sink Off to power off the display connected to HDMI OUT. Click Sink On to power on the display connected to HDMIOUT.
Page 15
DL-HDM88-FS Installation Guide Network: The matrix can be controlled over LAN, through which it maybe accessed through WebGUI or Telnet after obtaining the matrix IP address. By default, The IP address is 192.168.0.178 System is used for Factory Reset, click the Factory Reset, A window will pop up, click Yes, then the Matrix is restored to factory default settings.
DL-HDM88-FS Installation Guide EDID Management EDID (Extended Display Identification Data) is data generated from each display in the system to communicate the capabilities of the device. EDID Presets Note: If you change the EDID, repower the matrix for the changes to take effect.
DL-HDM88-FS Installation Guide CEC Control Commands Description Command Example Response DISPLAY 01 on[CR/LF] DISPLAY 01 on![CR/LF] Power on/off Display through Ex: CEC power on the display which is connected to output 1 DISPLAY 01 AUTO on[CR/LF] DISPLAY 01 AUTO on![CR/LF]...
DL-HDM88-FS Installation Guide Volume Control Commands Description Command Example Response SET VOL 01 50[CR/LF] VOL 01 50[CR/LF] Adjust Volume Gain EX: Set the volume gain of output 1 to 50 GET VOL 01[CR/LF] VOL 01 50[CR/LF] View Current Volume Gain...
DL-HDM88-FS Installation Guide HDCP Commands Description Command Example Response GET HDCPV IN 01[CR/LF] HDCPV IN 01 14[CR/LF] Get HDCP status of Input port EX: Input port 1 supports HDCP 1.4 Note: 14: means HDCP 1.4 22: means HDCP 2.2 off: means Non-HDCP...
DL-HDM88-FS Installation Guide EDID Commands Continue... Description Command Example Response GET EDID 01 [CR/LF] EDID 01 UHD30_2CH [CR/ Get EDID Status of a specific input EX: The EDID of input 1 is 3840x2160@30Hz Note: UHD30_2CH : 3840x2160@30Hz, FHD_2CH: 1920x1080@60Hz, HD _2CH: 1280x720@60Hz,...
DL-HDM88-FS Installation Guide System Commands Continue... Description Command Example Response GET STANDBY [CR/LF] STANDBY! [CR/LF] Get standby Status EX: The device is in standby mode Preset Scene Commands Description Command Example Response SAVE 01[CR/LF] PRESET SAVED[CR/LF] Save Preset Scene EX: Save Preset Scene 01...
Page 23
DL-HDM88-FS Installation Guide Troubleshooting Matrix does not power on » Verify power outlet is active. » Verify continuity in power cable. Cannot view 4K content » Verify the EDID settings of the matrix. » Verify display is 4K compatible. Verify source device can output 4K content.
Page 24
DL-HDM88-FS Installation Guide Technical Specifications Input/Output Connections HDMI Inputs Eight (8) HDMI Type A Receptacle HDMI Outputs Eight (8) HDMI Type A Receptacle Analog Audio Outputs Eight (8) 3-Pole/3.5mm Euroblock IR extension One (1) 3.5mm TRS TCP/IP One (1) 8P8C Port (Shielded RJ45 Female)
Page 28
Thank you for your purchase. Please contact us with your questions and comments. 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998 www.libav.com Digitalinx is a brand of:...
