Summary of Contents for DigitaLinx DL-A31
- Page 1 DL-A31 Installation Guide 3x1 HDMI M tr x Sw tcher Included Accessories • Installation Guide • Power Supply • IR Remote • 38KHz IR Receiver Cable...

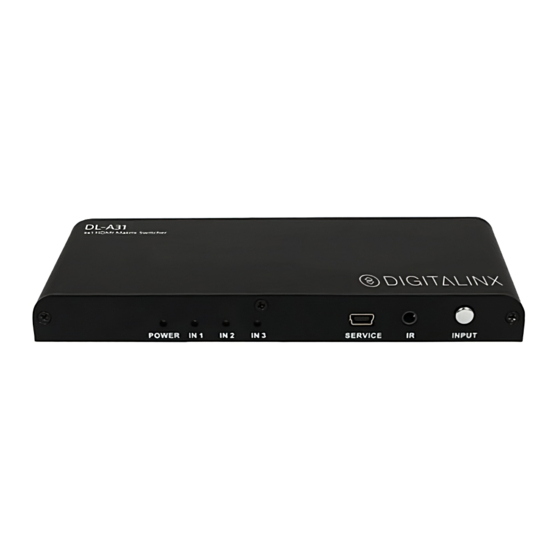

- Page 2 The DigitaLinx DL-A31 is a three input by one output slim HDMI matrix with Ultra HD 4K support. The DL-A31 is HDMI 2.0, HDCP 2.2, and DVI 1.0 compliant. The matrix switcher offers video formats such as 4k/30Hz with 24bit at 4:4:4/ 4:2:2 and up to 4k/60Hz with 12bit at 4:2:0.
- Page 3 IR Remote Functionality The included remote control can be used to switch the HDMI source for the display device. Connect the included 38KHz IR Receiver Cable to the IR input port on the matrix switcher. Please make sure that the remote is pointed directly at the IR receiver. Important notice: •...
- Page 4 Technical Specifications Supported Audio and Video Video Bandwidth 300MHz/10.2 Gbps Input Ports 3 x HDMI Female Output Ports 1x HDMI Female Output Resolution 480i -1080p50/60,4Kx2K@24/30, 4k2k@60Hz with 12bit YCBCR 4:2:0, VGA-UXGA Video Compliance HDCP 2.2 Chassis and Environmental Dimensions 64 mm x 155mm x 17 mm Weight 180g Operating Temperature...
