UPLIFT Adapt Freestand
UDA100~freestand
Part B
keyboard tray

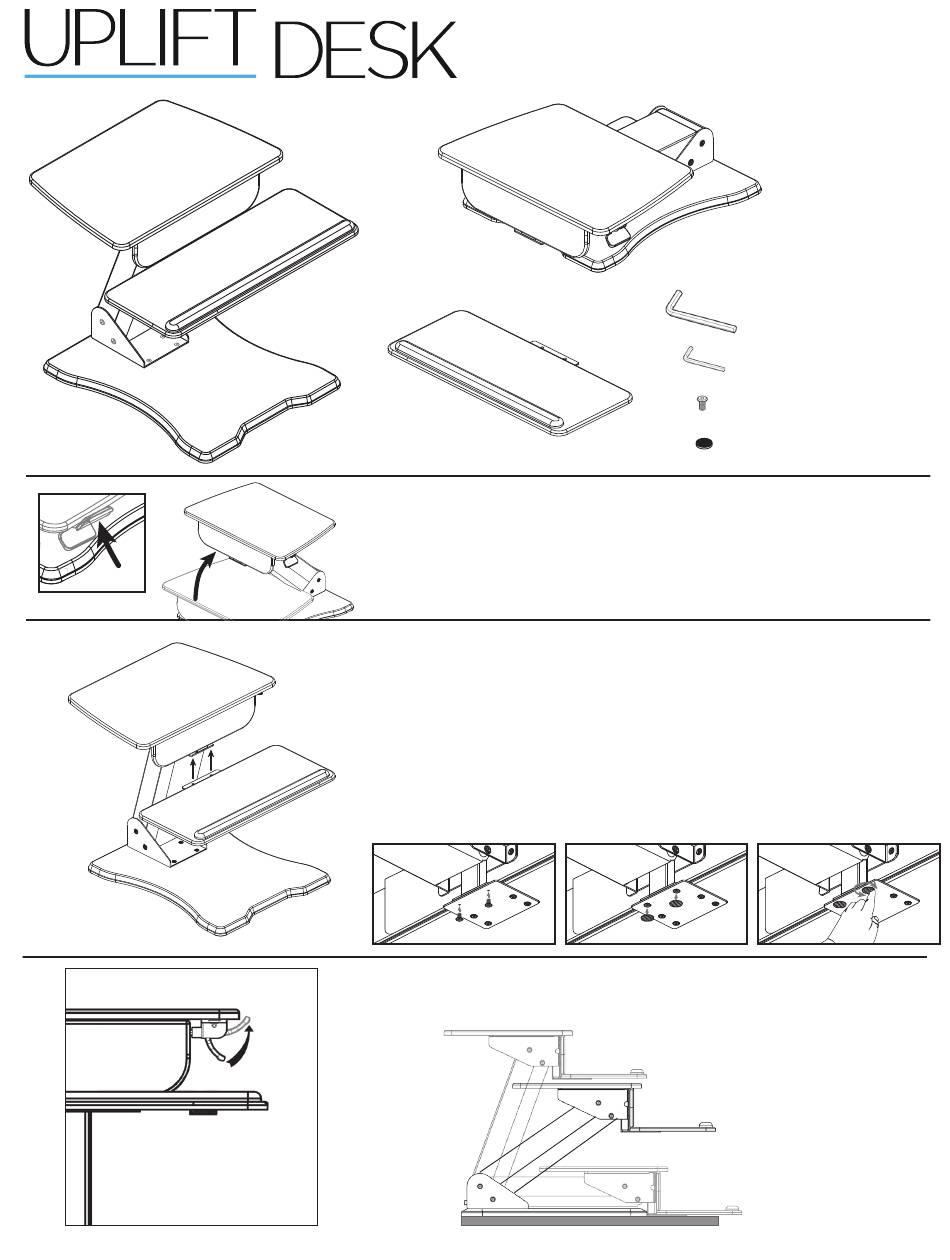

Step 1
Press and hold the release paddle in the up position on the UPLIFT
Adapt main assembly (Part A) to raise the worksurface to the highest
position. Release the paddle to lock in place.
Step 2
Line up the holes on the plate of the keyboard tray (Part B) with the
holes on the vertical connector under the main assembly's work sur-
face.
Attach keyboard tray to the main assembly using two M6*10 bolts
(Part E) and tighten using the small Allen wrench (Part D).
Cover the bolts with the adhesive bolt covers (Part F) by centering
the sticky side on the heads of the exposed bolts as shown in diagram.
Adhere the pad around the bolt by pressing all around the bolt.
Step 3
Adjust the height of the unit by squeezing the release paddle
and moving to desired position.
Instructions
™
Part A
Adapt Freestand
main assembly
Part C
Allen wrench (large)
Part D
Allen wrench (small)
Part E
M6*10 bolts Qty. 2
Part F
bolt covers Qty. 2
Advertisement
Table of Contents
Related Manuals for Uplift Desk UDA100-freestand
Summary of Contents for Uplift Desk UDA100-freestand
- Page 1 Adhere the pad around the bolt by pressing all around the bolt. Step 3 Adjust the height of the unit by squeezing the release paddle and moving to desired position. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
-
Page 2: Copyright Notice
These instructions are a component of the UPLIFT Adapt Freestand ™ . These instructions are part of the scope of delivery, even if the item is resold. These instructions are also available on the UPLIFT Desk website: upliftdesk.com Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk.
