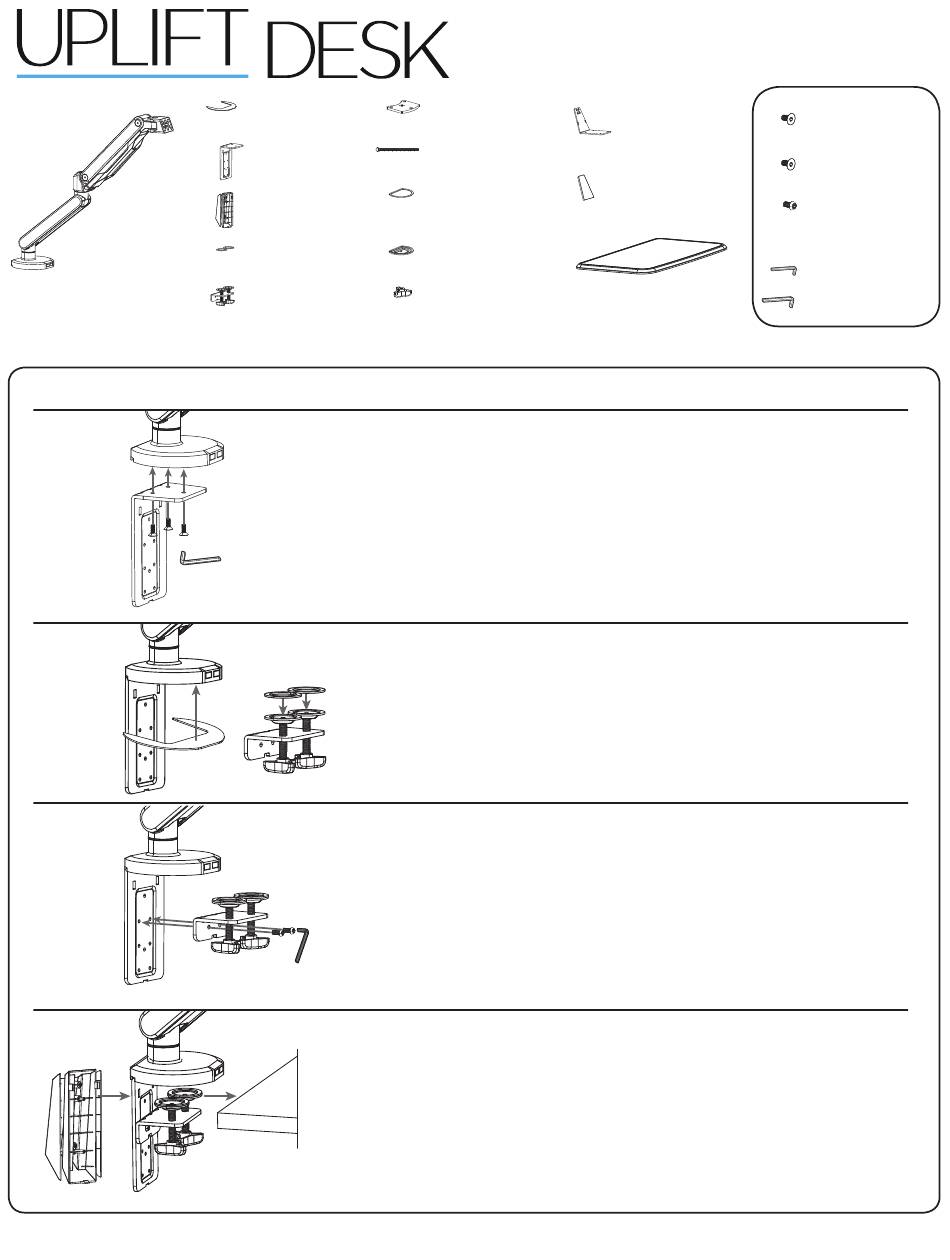

Part 1
Adapt Mobile ™ arm
There are two ways to attach your UPLIFT Adapt Mobile ™ to your desktop: Clamp assembly, and bolt-thru assembly.
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
Part 2
Arm gasket
Part 3
Top Clamp
Part 4
Cable Cover
Part 5
Clamp Gaskets
(qty 2)
Part 6
Bottom Clamp
Clamp Assembly -
Clamp Step 1
Connect the top clamp (part 3) to the Adapt Mobile ™ arm using the three
M6x12mm screws (part A) and the small Allen wrench.
Clamp Step 2
Place the Arm Gasket (part 2) under the arm mount, and the clamp gas-
kets (part 5) to the bottom clamp (part 6).
Clamp Step 3
Connect the bottom clamp assembly (part 6) to the top clamp assembly
by using M6x14mm (part C) and the small Allen wrench.
Clamp Step 4
Turn the knobs counterclockwise to loosen them.
Slide the assembly onto your desk and turn the knobs clockwise to
tighten the clamp to the desk. Make sure that the clamp is secure. If the
clamp is too loose, the unit may wobble or fall.
Snap the Cable cover (part 4) to the back.
®
UPLIFT Adapt Mobile
UDA120~mobile
Part 7
Bolt top clamp
Part 8
Bolt
Part 9
Bolt gasket
Part 10
Bolt bottom clamp
Part 11
Bolt knob
Attach the arm to the back of your desk....
Instructions
™
Part 12
Tray mount
Part 13
Mount cover
Part 14 - Tray
Screws
Part A
M6x12mm screws
(qty 3)
Part B
M6x12mm screws
(qty 8)
Part C
M6x14mm screws
(qty 2)
Tools
Allen wrench
(small)
Allen wrench
(large)
