Lorex LHV2000 Series Quick Connection Manual

PACKAGE CONTENTS:
MPX DVR
Power adapter
HDMI Cable Ethernet Cable
Remote Control USB Mouse
Quick Start Guides
Need Help?
Visit us online for up-to-date software and complete
instruction manuals
1
Visit www.lorextechnology.com
2
Search the model number of your product
3
Click on your product in the search results
4
Click on the Downloads tab
Information in this document is subject to change
without notice. As our products are subject to continuous
improvement, Lorex Corporation and our subsidiaries
reserve the right to modify product design, specifications and
prices, without notice and without incurring any obligation.
E&OE © 2016 Lorex Corporation. All rights reserved.
Quick Connection Guide

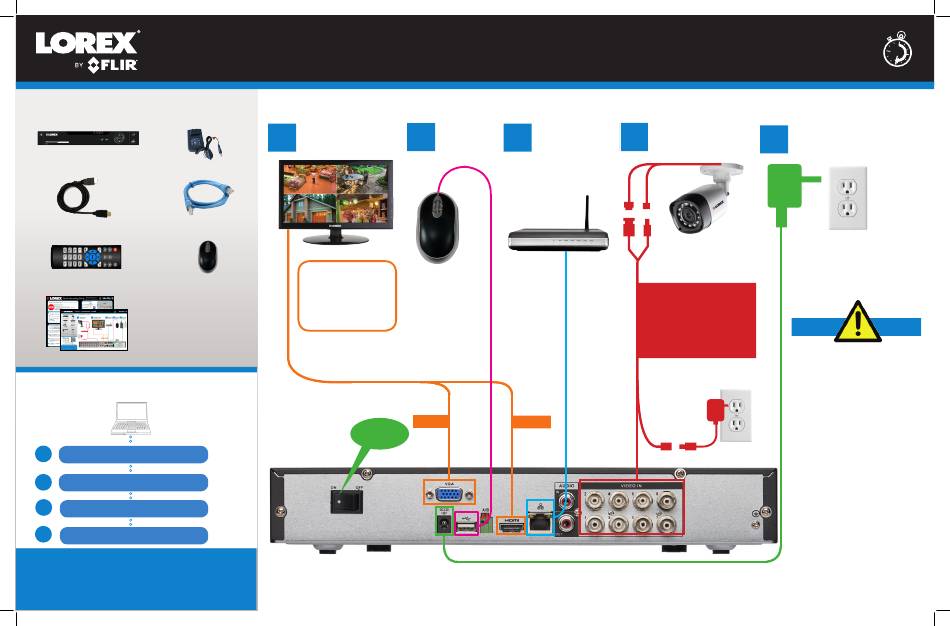

Connecting your system
1 2
Monitor/TV*
!
For the best video output
this DVR can provide, you
must use it with a
monitor/TV that supports
1080p resolution (or above).
VGA*
6: ON
8-channel configuration shown. 4/16 channel will have the respective number of video inputs. For camera compatibility
information, visit www.lorextechnology.com/support
*Not included/sold separately.
MPX HD Digital Video Surveillance Recorder
3
Mouse Router*
HDMI
OR
LHV2000 Series
4
5
Cameras
Power
Extension Cable*
The extension cable must
be a single stretch of cable
between the DVR and camera.
You cannot connect multiple
extension cables to each other.
Beeping
If the system is beeping after startup, the Ethernet
cable may not be connected or the system may
not be connected to the network.
To stop the beeping:
1. Connect an Ethernet cable from the system to
your router. OR
2. Right click and click Disable Beep.
Firmware Update
This system features automatic firmware upgrades
for enhanced functionality. It is required
to upgrade your system to the latest
firmware version.
If a firmware upgrade is available:
1. After startup, a notification will appear
asking you to upgrade the firmware. Click OK to
upgrade.
2. The system will download and install the
firmware upgrade. Wait for the firmware update
to complete. The system may restart during the
firmware upgrade process.
Important: Do not power off or discon-
nect the power cable during firmware
installation.
