Hd network video surveillance recorder

Advertisement

Package Contents:

HD NVR
USB Mouse
Remote Control
Power Cable**
Ethernet Cable
HDMI Cable
Quick Start Guides
Need Help?
Visit us online for up-to-date software and
complete instruction manuals
1
Visit lorextechnology.com
Search for the model number
2
of your product
Click on your product in the
3
search results
4
Click on the Downloads tab
Information in this document is subject to change without notice. As our products are subject
to continuous improvement, FLIR Systems, Inc. and our subsidiaries reserve the right to modify
product design, specifications and prices, without notice and without incurring any obligation.
E&OE © 2017 FLIR Systems, Inc. All rights reserved.

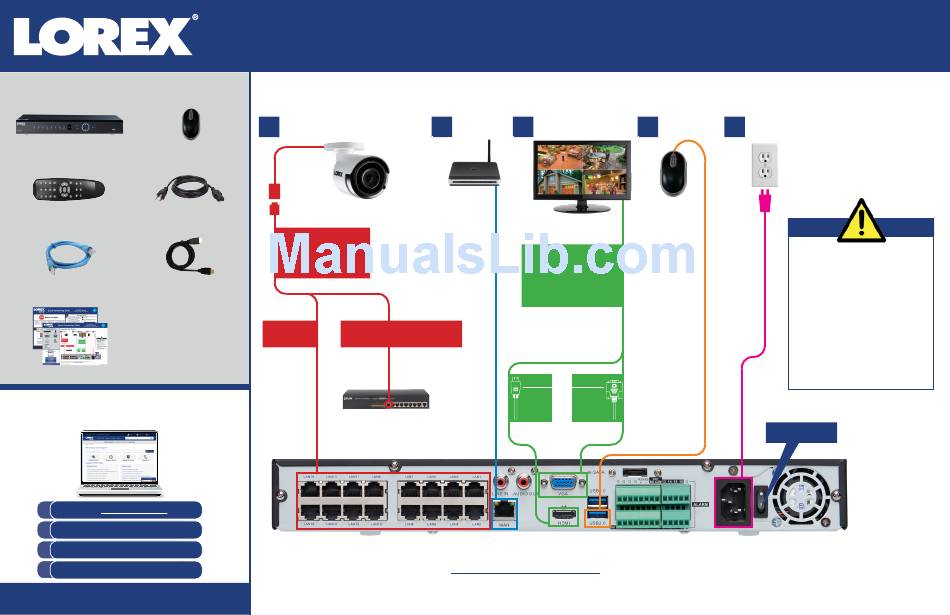

Quick Connection Guide
Connecting Your System
1
2
IP Cameras*
Ethernet Extension Cable*
NOTE: It may take up to 1
minute for cameras to start
up and transmit video to
your NVR.
Recommended:
Connect cameras to a PoE switch* or router*
OR
Connect cameras
on your network. See "Adding Cameras from
to the NVR.
the LAN" on reverse for more details.
16/32 channel configuration shown. 8 channel units will have the respective number of video inputs.
For camera compatibility information, visit
Not included / sold separately.
*
8-channel units include a 48V DC power adapter rather than an AC power cord, and do not have a power switch on the back panel.
**
3
Router*
Monitor*
!
The NVR is set to 720p
output by default. To optimize
picture quality, set the NVR's
video output to match the
resolution of your monitor.
OR
HDMI
VGA*
Supports
Supports
up to 4K
up to 1080p
lorextechnology.com/compatibility
LNK7000 Series
HD Network Video Surveillance Recorder
4
5
Mouse
Power
This system features automatic firmware
upgrades for enhanced functionality. It is
required to upgrade your system to the latest
firmware version.
If a firmware upgrade is available:
1. After startup, a notification will appear
asking you to upgrade the firmware. Click OK to
upgrade.
2. The system will download and install the
firmware upgrade. Wait for the firmware update
to complete. The system may restart during the
firmware upgrade process.
DO NOT power off or disconnect the power
cable during firmware installation.
6: ON**
LNK7000_LS_QCG_EN_R1
