Barco MSWU-81E Installation Manual

Congratulations on purchasing
this product
1
(EU/US/CH)
(HDMI to DVI-D)
user
manual
2 A
Turn and pull off
the lens cap
2
B
Remove protective covers from
both ends of the lens before starting.
Carefully align the connectors
while installing the lens.
3
305
152,5
105
160
220
*(Ceiling mount system is not included)
4
(HDMI to DVI-D cable
included in the box)
5
HOME
Displays or hides the OSD adjustment screen.
Use these buttons to scroll, configure or adjust items
on the OSD or toggle between different images.
ENTER
Press this button to confirm selection of OSD item;
either to "Select item" or to access "Sub Menu" configurations.
STBY
Use this button to start or shut down the projector.
INPUTS
Used to toggle between different input signal sources.
QUICK ACCESS
Press ENTER key for quick access to "Focus/Zoom Menu"
Menu - OK
Menu - LEFT
Power
On/Off
Status Led
INPUT BRIGHTNESS
ASPECT RATIO LENS FOCUS
KEYSTONE LANGUAGE
i
SERVICE ADVANCED
- Remove the lens before transporting the projector.
- To save lamp lifetime, first switch the projector to standby mode
and wait two minutes, then switch off the main power.
- Ensure that the projector is operating with clean filters.
- Do not block the ventilation in -and outlets.
- Using the projector at a non recommended tilt angle will reduce the lifetime of the lamps
or create unexpected behaviour of the unit.
- Laser light can cause severe damage to the DMD. This damage is not covered by warranty.
For more information and Maintenance Guidelines,
check the Detailed User Manual on:
http://www.barco.com/en/products-solutions/projectors
AAA (2x)
532
6
7
IR Position
Front
During Start-up
8
CONTRAST COLOR
LENS ZOOM LENS SHIFT
i M
INFO MODE
9

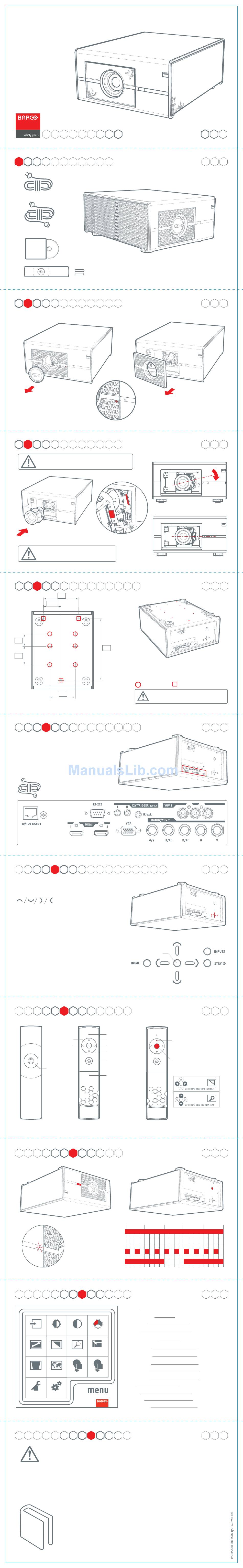

Quick Setup Guide

Packaging Contents

Lens Assembly A.
Loosen screw and pull out
black frame towards the front
Lens Assembly B.

Ceiling Mount*

Unit Weight: 34 kg
Two holepatterns are available
for ceiling mounting:
M6x15 (6x)
Please check the manual of your
supportsystem for compatability
Connectors
ENTER

Remote Control

Feedback LED
Menu - UP
Menu - RIGHT
Menu - DOWN
Home/Menu
Battery Lid
(Slide down
to open)
Starting Projector
1 sec 1 sec
STBY
ON
Error
OSD Lite Menu
INPUT
BRIGHTNESS
CONTRAST
COLOR
ASPECT RATIO
LENS FOCUS
LENS ZOOM
LENS SHIFT
KEYSTONE
LANGUAGE
INFO
MODE
SERVICE
ADVANCED
Important Info
MSWU-81E
Click!
or M8x15 (3x)
(See User Manual for detailed info)
Keypad
Quick Keys
(for Remote and keypad)
Quick Key 1
Push Menu-UP twice
for instant 'Picture Mute'
Quick Key 2
Push Menu-OK for
quick access to the
Focus/Zoom Menu
IR Position
1 sec 1 sec
Toggle between input sources
adjust image brightness level
adjust image contrast
adjust display mode
modify image aspect ratio
adjust lens focus
adjust lens zoom
adjust lens shift
adjust keystone
select language
information on lamp status
normal/eco/power
service information
see user manual
Rear
1 sec
