Jenn-Air JXU9130W Installation Instructions

PRODUCT MODEL NUMBERS

JXU9130W JXU9136W

ELECTRICAL REQUIREMENTS

A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

VENTING REQUIREMENTS

Rear discharge
This range hood can be vented directly out the back using the 3¹⁄₄" x 10"
(8.3 cm x 25.4 cm) rectangular damper (supplied) along with a 3¹⁄₄" x 10"
(8.3 cm x 25.4 cm) rectangular vent system (not supplied). See "Install Range
Hood" section for details for installing the damper.
Roof Venting
A
B
A. Roof cap
¹⁄₄
B. 3 " x 10" (8.3 x 25.4 cm)
rectangular metal vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters)
for each vent piece used in the system.
3¹⁄₄" x 10" (8.3 cm x 25.4 cm) Vent System
Vent Piece
3¹⁄₄" x 10" (8.3 cm x 25.4 cm)
90° elbow
3¹⁄₄" x 10" (8.3 cm x 25.4 cm)
flat elbow
3¹⁄₄" x 10" (8.3 cm x 25.4 cm)
wall cap
Maximum equivalent vent length is 35 ft (10.7 m).
Example vent system
Maximum Recommended Length = 35 ft (10.7 m)
1 - 90° elbow
8 ft (2.4 m) straight
1 - wall cap
Length of 3¹⁄₄" x 10"
(8.3 cm x 25.4 cm) system
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

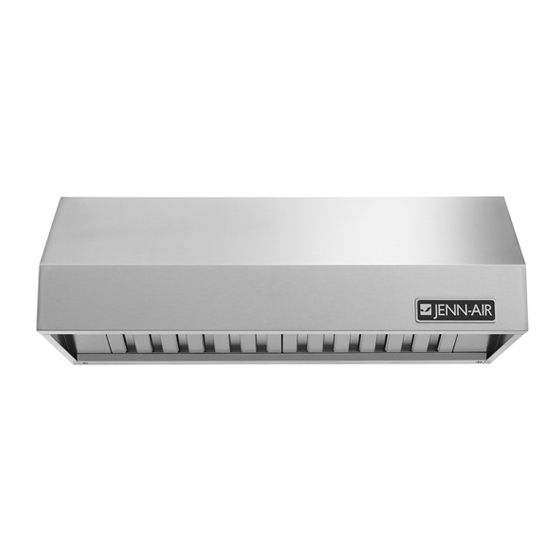

30" (76.2cm) and 36" (91.4cm) Commercial Style Wall-Mount
Canopy Range Hood
Wall Venting
(top or rear discharge)
B
A. Wall cap
¹⁄₄
B. 3 " x 10" (8.3 x 25.4 cm)
rectangular metal vent
5.0 ft
(1.5 m)
12.0 ft
(3.7 m)
0.0 ft
(0.0 m)
= 5.0 ft (1.5 m)
= 8.0 ft (2.4 m)
= 0.0 ft (0.0 m)
= 13.0 ft (3.9 m)

LOCATION REQUIREMENTS

Have a qualified technician install the range hood. It is the installer's
responsibility to comply with installation clearances specified on the
model/serial rating plate. The model/serial rating plate is located behind
the left filter on the rear wall of the vent hood.
Canopy hood location should be away from strong draft areas, such as
windows, doors and strong heating vents.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured
Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly
the Federal Standard for Mobile Home Construction and Safety, Title 24,
HUD, Part 280) or when such standard is not applicable, the standard for
Manufactured Home Installation 1982 (Manufactured Home Sites,
Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or
with local codes.

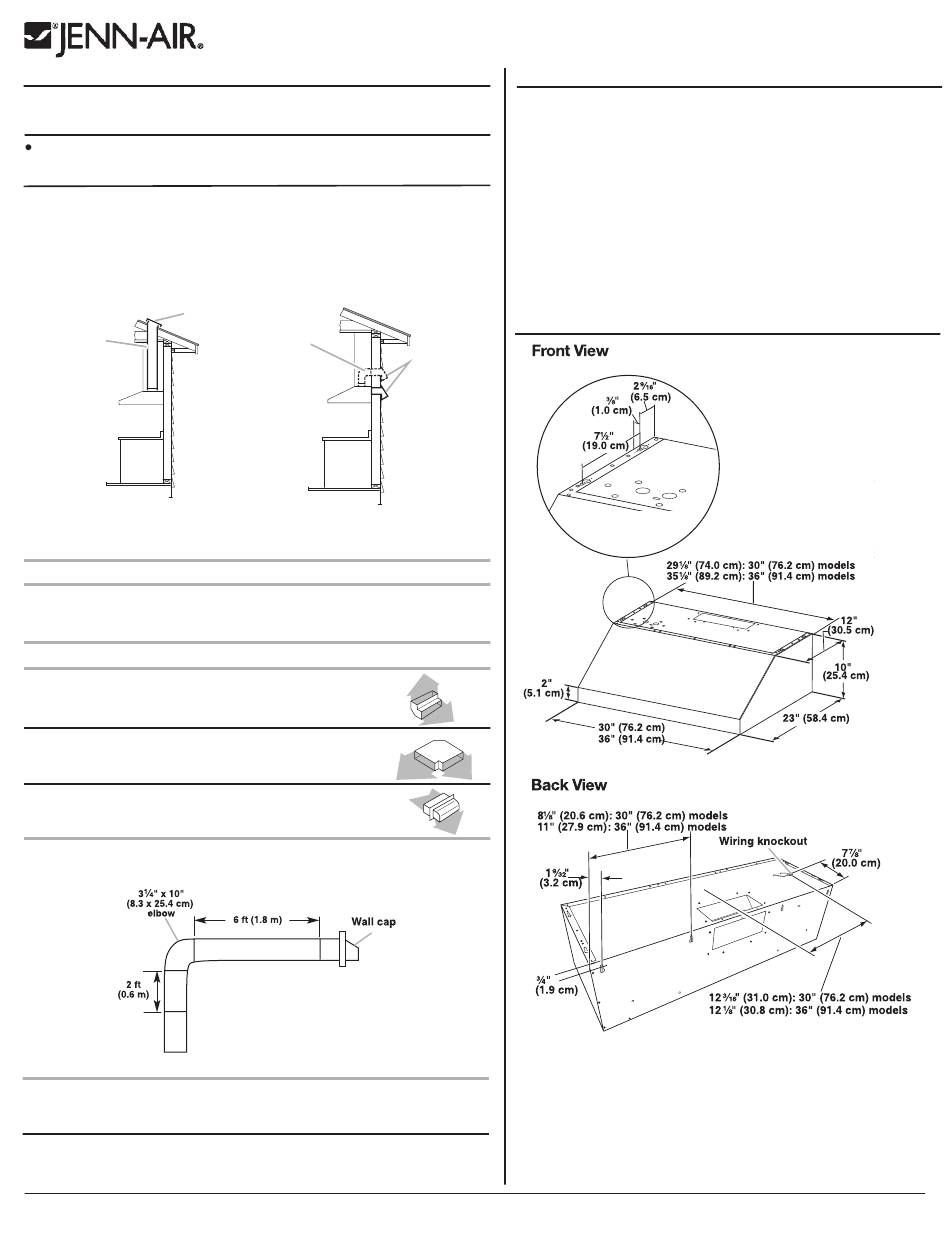

PRODUCT DIMENSIONS

A
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10274318A
10/06/2009
