AeroLift 100 / 150
Installation & Operating Instructions
1 Read instructions completely before proceeding. Follow instructions carefully.
Installation contrary to instructions invalidates warranty.
2 Do not obstruct operation of AeroLift 100 or 150 with fingers or any other
object. Serious injury or damage could result.
3 It is not uncommon to overheat the motor during initial installation when
setting limits. The motor is thermally protected and will stop working
temporarily. DO NOT physically pull the unit down when this occurs. Once it
has cooled to a safe temperature, it will begin operating again.
4 The AeroLift 100 and 150 are designed to accommodate ceiling suspended
equipment. Equipment should not be allowed to rest on ceiling closures
during operation (see "Installing Projector").
5 Entire bottom of unit must be unobstructed to permit proper operation.
6 Unit must be installed level (use a carpenter's level).
7 Unit operates on 110-120V AC 60 Hz. current.
Note: Unit has been thoroughly inspected and tested at factory and found to be
operating properly prior to shipment.

Planning

1 Based on screen location and projector specifications, determine proper
position for projector installation.
2 Confirm that there is adequate space for installation and operation. Minimum
clearance above ceiling level varies according to height of projector, projector
mounting bracket, optional ceiling closure and optional Environmental Air
Space Housing.
3 Arrange to provide service access to the unit.
4 Total maximum capacity of AeroLift 100 is 100 lbs.; capacity for AeroLift 150 is
150 lbs. (including closure, projector and bracket).
As Soon As AeroLift Arrives
1 Open carton and inspect for damage.
2 Locate the following parts:
A. The unit itself
B. Controls
C. Any optional equipment
3 Test lift prior to installation.

Electrical Connections

Unit operates on 110-120V, 60 Hz. AC current. The AeroLift 100 and 150 are
shipped closed. After hanging the unit, make sure power is off and temporarily
connect the unit to power and to a switch, so the unit can be lowered to allow
access inside.
Please note: Make sure electrical supply has been disconnected before
attempting to connect AeroLift to electricity.
Terminal strip for field connections is located inside a junction box on the end of
the unit. Unit is shipped with internal wiring complete to the terminal strip. Once
the unit has been lowered, turn off power and remove the J-box cover. The
terminal strip is attached to the cover. Disconnect temporary pigtail from unit, then
complete permanent wiring to electricity and to switches. Wire to connect unit
to power supply and to switches should be furnished by installer. Connections
should be made in accordance with wiring diagram, and wiring should comply with
national and local electrical codes. All operating switches should be "off" before
power is connected. AeroLift should be operated and checked prior to installing
projector and/or optional ceiling closure.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: AeroLift100_150_Inst18
© 2018 All Rights Reserved
Caution:

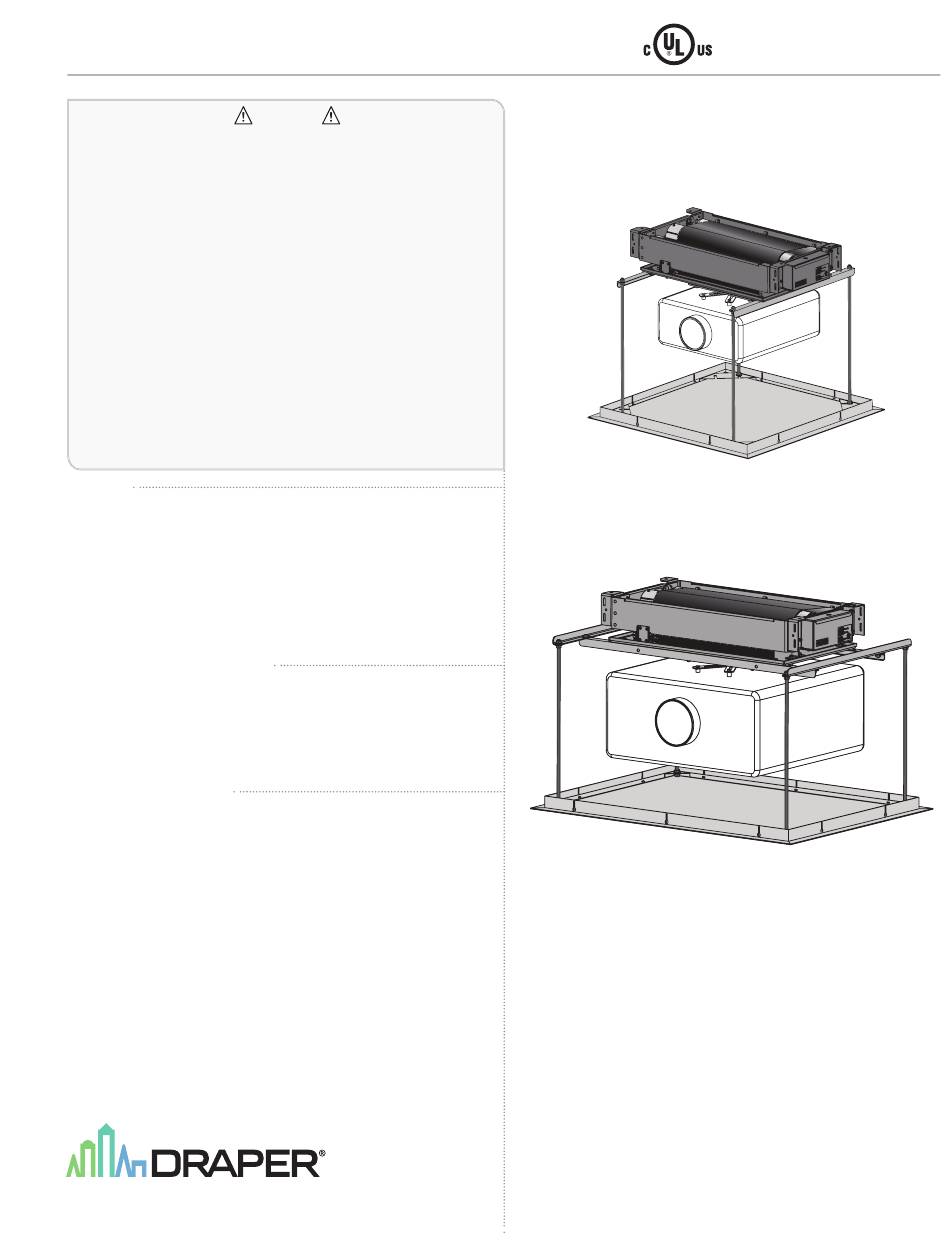

AeroLift 100
(with Closure panel)
Projector can be installed as shown or
turned 90° depending on projector size.
AeroLift 150
(with Closure panel)
Projector can be installed as shown or
turned 90° depending on projector size.
If you encounter any difficulties installing or servicing your AeroLift 100 or 150, call
your dealer or Draper, Inc. in Spiceland, Indiana, 765-987-7999 or fax 765-987-7142.
