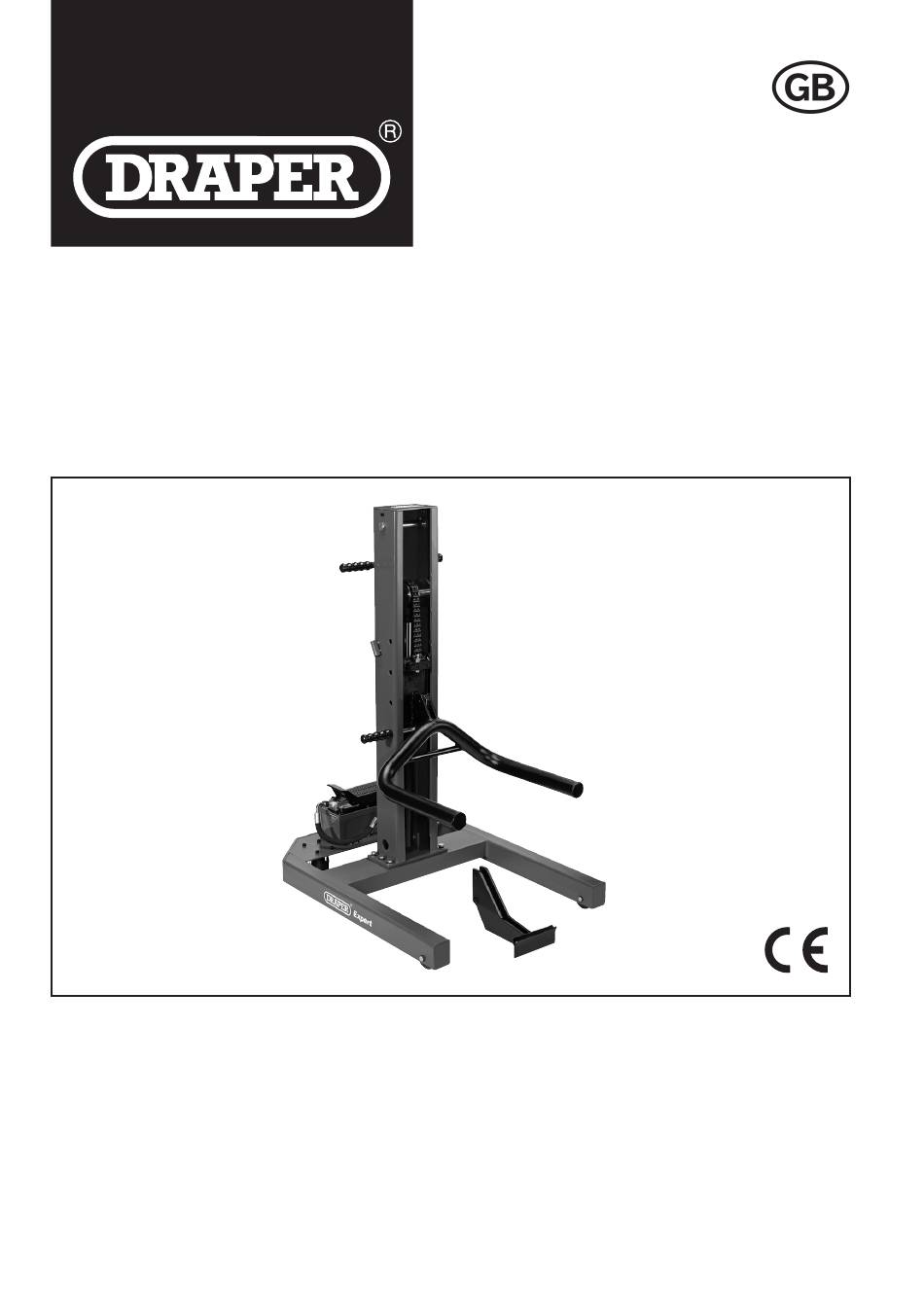

1.5 TONNE
VEHICLE LIFT
78610
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 78610 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 78610

Summary of Contents for Draper 78610

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 4.3 HANDLING AND STORAGE ..................

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    Always refer to the vehicle manufacturer for the correct lifting position for the vehicle you are working on. Draper Tools accepts no responsibility for the improper use of the vehicle lift. 4.3 HANDLING AND STORAGE Care must still be taken when handling. Dropping this machine will have an effect on the machine and may also result in personal injury.

  • Page 6: Health And Safety Information

    Warning: Ensure when using the lift with the wheel cradle, that this cannot come into contact with the vehicle bodywork as the suspension compresses! Draper will accept no claims if the bodywork is damaged due to incorrect application of the vehicle lift. If the wheel cradle is not suitable - use the body lift plate.

  • Page 7: Working Under The Vehicle

    HEALTH AND SAFETY INFORMATION 5) Working Under The Vehicle It is extremely important, when working under the vehicle, to ensure axle stands are always used. 5.1 SAFETY PRECAUTIONS The vehicle to be lifted should never exceed the rated capacity of the life. The lift should be supported on a solid, level and horizontal surface which is well illuminated and free of obstructions.

  • Page 8: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Hydraulic pipe Foot pedal pump Locking bar Moving handle Column Wheel cradle Body lift plate Base Air inlet - 8 -...

  • Page 9: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.

  • Page 10: Assembling The Vehicle Lift

    ASSEMBLING THE VEHICLE LIFT 8.1 FITTING THE FOOT PEDAL PUMP Using the supplied 4x hex key bolts , fit the foot pedal pump to the base of the lift as shown. 8.2 FITTING THE LIFT COLUMN With assistance, bolt the lift column to the lift base shown using bolts - 10 -...

  • Page 11: Connecting The Foot Pedal Pump To Lift Columns

    ASSEMBLING THE VEHICLE LIFT 8.3 CONNECTING THE FOOT PEDAL PUMP TO LIFT COLUMNS Using PTFE tape or liquid PTFE on the hydraulic hose connect the foot pedal pump to the lift column as shown. Before use: • A copper knob is installed for shipping to prevent leaks, this must be loosened anticlockwise before use.

  • Page 12: Vehicle Lifting Instructions

    Warning: Ensure when using the lift with the wheel cradle, that this cannot come into contact with the vehicle bodywork as the suspension compresses! Draper will accept no claims if the bodywork is damaged due to incorrect application of the vehicle lift.

  • Page 13: Maintenance

    10. MAINTENANCE 10.1 MAINTENANCE 1. IMPORTANT: Both the maintenance and repair of the lift may only be performed by qualified persons, who have sufficient knowledge of the hydraulic systems used in these devices as a result of their training and experience. 2.

  • Page 14: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Warning! Wear suitable foot protection. Warning! Wear suitable eye/face protection. Warning! Read the instruction manual. Warning! Keep bystanders away. - 14 -...

  • Page 15: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
