① Read instructions completely before proceeding.
② Test lift prior to installation.
③ Follow instructions carefully. Installation contrary to instructions
invalidates warranty.
④ Do not obstruct operation of Scissor Lift SLX with fi ngers or any object.
Serious injury or damage could result.
⑤ Maximum lifting capacity is 350 Lbs.
⑥ Scissor Lift SLX is designed to accommodate ceiling suspended
equip ment. Equipment should not be allowed to rest on optional ceiling
closure during operation (refer to section titled "Installing Pro jec tor").
⑦ Entire bottom of unit must be unobstructed to permit proper op er a tion.
Suffi cient clearance must be allowed below projector or op tion al ceiling
closure: 10' for Model SLX10, 14' for Model SLX14, etc.
⑧ Unit must be installed level (use a carpenter's level).
⑨ Unit operates on 110-120V AC 60 Hz. current.
⑩ Verify the show position when testing lift. Make required changes by
referring to adjustment instructions on page 4 of this document.
CAUTION: Before servicing unit, disconnect hardwired control and
any remote control.
Note: Unit has been thoroughly inspected and tested at factory and found
to be operating properly prior to shipment.
① Based on screen location and projector specifi cations, determine proper
position for projector in stal la tion.
② Confi rm that there is adequate space for installation and operation.
Minimum clear ance above ceiling level varies according to Scissor Lift
model, plus height of projector, optional mounting bracket, optional ceiling
closure, and optional Environmental Air Space Housing.
③ Arrange to provide service access to the unit.
④ Maximum lifting capacity is 350 Lbs.

As Soon As Scissor Lift Arrives

① Open carton and inspect for damage.
② Locate the following parts:
A. The unit itself
B. Controls
C. Optional equipment: Environmental Air Space Housing, Universal
Projector Mount, closure panel or ceiling fi nish kit (all ship in separate
cartons).
③ Test lift prior to installation.

Hanging Unit

Please note: If using Environmental Air Space Housing option, go to
Environmental Air Space Housing instructions on page 3.
The Scissor Lift may be installed in a variety of ways; recessed above
the ceiling, or sus pend ed below the ceiling. The lift should be supported by
four ½" thread ed mount ing rods. If ceiling recessed, the entire unit (including
the projector) should set approximately 1½" above the fi n ished ceiling in its
"stored" position. The threaded rods should pass through the corner mount ing
fl anges and be secured by nuts above and below. The unit should then be guy
wired or blocked to pre vent swing ing.
All installations should observe the following guidelines:
① If installing above a hard ceiling, optional Draper Access Panels are
available to allow access to the unit.
② Installer must ensure that all fasteners and supports are of ad e quate
strength to securely support Scissor Lift and projector.
③ Fastening methods must be suitable for mounting surface, and se cure ly
anchored so that vibration or abusive pulling on unit will not weaken
installation.
④ Unit should be level, with weight shared more or less equally by all four
threaded mount ing rods.
⑤ Bottom of unit must be unobstructed after installation. Suffi cient clear ance
must be allowed below projector or optional ceiling closure.
Caution: Beware
of pinch points
®
Copyright © 2010 Draper Inc. Form SLXScissorLift_Inst10 Printed in U.S.A.
Installation/Operating Instructions
Caution:

Planning

⑥ Do not use unit to support adjacent ceiling, light fi xtures, etc.
⑦ Do not complete the ceiling below unit until electrical connections have
been completed and unit has been operated successfully.
⑧ We recommend that safety cables be attached to the Scissor Lift SLX for
added security (a sound in stal la tion practice with overhead equipment).
⑨ When the Scissor Lift SLX is to be installed in "other space used for
environmental air" the optional environmental air space housing must
be installed per instructions to isolate the lift from the "other space
used for environmental air."

Electrical Connections

Unit operates on 110-120V AC, 60 Hz. current.
Opening the electrical box ex poses ter mi nals for fi eld con nec tions. Unit
is shipped with internal wiring com plete.Wire to connect unit to power
supply should be furnished by in stall er. Con nec tions should be made in
accordance with wiring di a gram, and wiring should com ply with na tion al and
local elec tri cal codes. All op er at ing switches should be "off" before power is
con nect ed.
Caution: Make sure electrical supply has been disconnected before
attempting to connect Scissor Lift to electricity.
Scissor Lift should be operated and checked prior to installing pro jec tor and/or
optional ceiling closure.

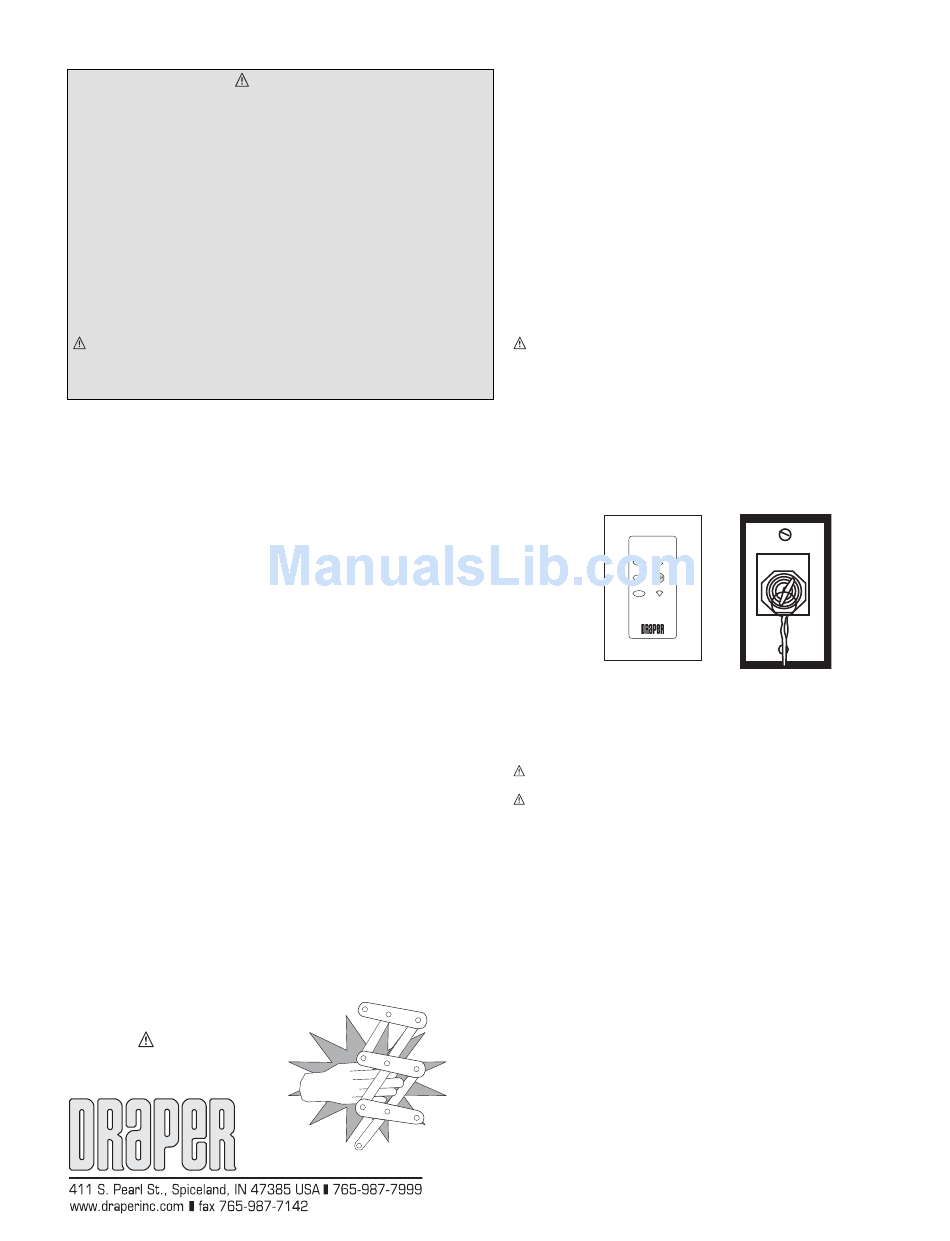

Low Voltage Control Switch shown below comes with 75' of cable and should
be plugged in to Control Panel on top frame of lift for control of the "Closed"
and "Show" positions. Momentary Key Switch shown below comes with 75' of
cable and should be plugged in to Control Panel on top frame of lift for control
of the "Service" position.
LVC-S
Closed & Show
When unit is fi rst operated, be cautious! If unit fails to operate when the
"down" button is pressed, press "off" and recheck elec tri cal con nec tions before
pro ceed ing. Cycle unit down and up several times to confi rm sat is fac to ry

operation.

Caution: Do not pull on or touch safety belt when unit is in motion. If belt
locks, the cables will unspool.
Caution: Obstructing bottom pan may cause cables to unspool.
Standard Single Station Control (See Fig. 1)—One three-button switch with
"up", "down", and "off" buttons. Lift starts up or down when ap pro pri ate button is
pressed, and may be stopped by pressing "off" button. Factory set limit switch es
stop lift automatically when pro jec tor is in "show" position. One momentary key
switch lowers lift from "show" to "service" position.
Optional Multiple Station Control—Optional, moves lift from "stored" to "show"
position only. Each switch ing station has a three-button switch with "up", "down",
and "off" buttons. Lift starts up or down when ap pro pri ate button is pressed,
and may be stopped by pressing "off" button. Factory set limit switch es stop lift
automatically when pro jec tor is in "show" position.
Optional Key Operated Switch—If ordered, the standard LVC-S can be replaced
with a second single station, momentary key-operated three position (up/off/down)
switch. Multiple Station Control re quired for this option. Moves lift from "stored" to
"show" position only.
Optional Infrared or Radio Frequency Remote Control—If ordered, a three-
button transmitter is provided, with "up", "down", and "stop" buttons. Unit starts up
or down when appropriate button is pressed, and may be stopped by pressing
"off" button. Factory set limit switches stop unit au to mat i cal ly when projector is in
"show" po si tion. Only controls "show" and "stored" positions.
Optional RS232 Control—For Serial communication an R2D7 Serial
Communications Interface is optionally available.
Low Voltage Trigger—Input provided for Low Voltage Trigger from projector (see
diagram on page 4).
Please Note: Scissor Lift SLX must be installed in accordance with the requirements
of the Local Building Codes, the Canadian Electrical Code (CEC), CAN/CSA
C22.1 and the National Electric Code (NEC), NFPA 70, as required. An appropriate
disconnect device shall be provided as part of the building installation.
If you encounter any diffi culties installing or servicing your Scissor Lift, call your dealer
or Draper, Inc. in Spiceland, In di ana, 765-987-7999, or fax 765-987-7142.
SP-KSM
Service
OFF
OFF
UP UP DOWN DOWN
Figure 1
Operation
