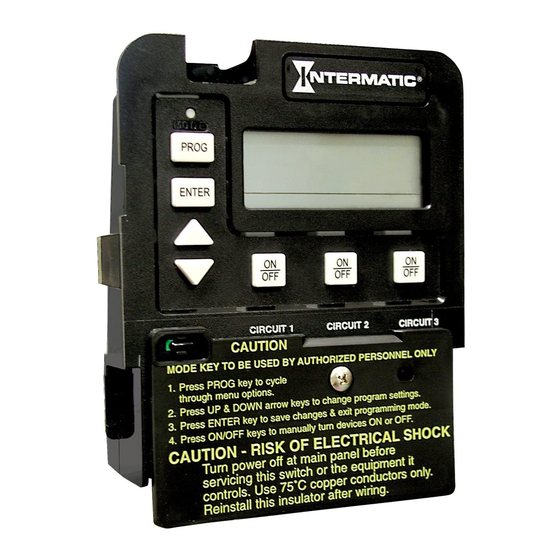

Intermatic P1353ME Instruction Manual
  1. Manuals
  2. Brands
  3. Intermatic Manuals
  4. Timer
  5. P1353ME
  6. Instruction manual

Intermatic P1353ME Instruction Manual

Multipurpose control
Hide thumbs Also See for P1353ME:

Advertisement

Quick Links

Download this manual

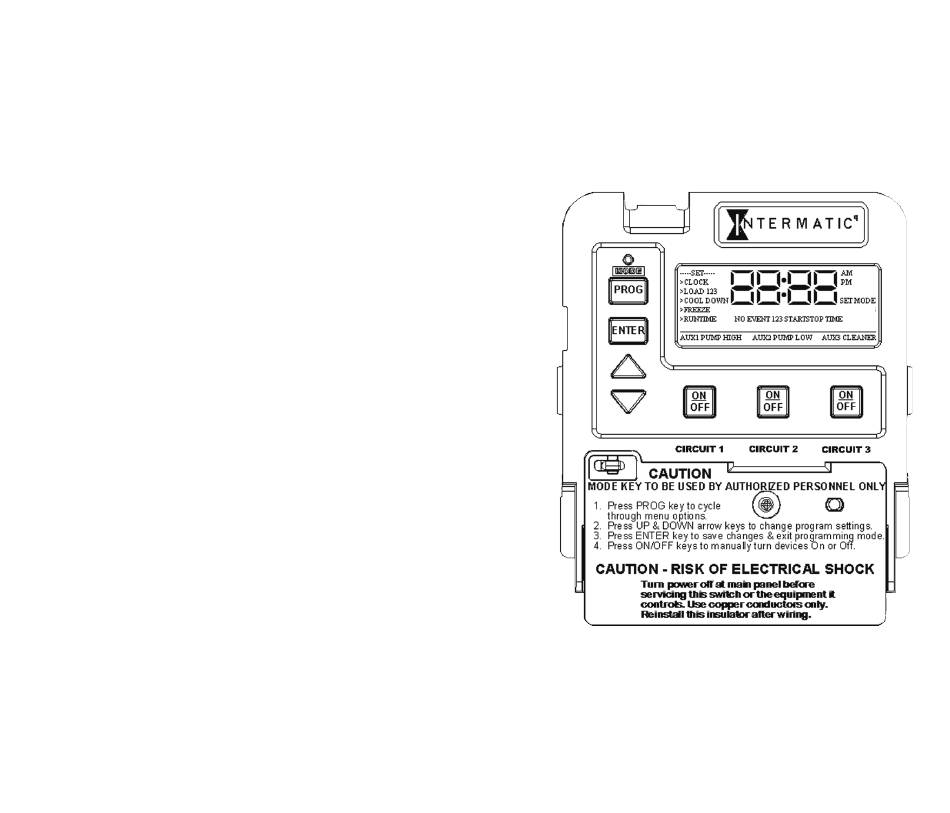

INSTRUCTION MANUAL
INTERMATIC
MULTIPURPOSE CONTROL
MECHANISM MODEL: P1353ME
12345
67
ATTENTION
READ CAREFULLY BEFORE ATTEMPTING TO
INSTALL YOUR INTERMATIC MULTIFUNCTION
CONTROL SWITCH. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL
INJURY AND/OR PROPERTY DAMAGE! RETAIN
FOR FUTURE REFERENCE.
158--01654

Advertisement

loading
Need help?

Need help?

Do you have a question about the P1353ME and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermatic P1353ME

Summary of Contents for Intermatic P1353ME

  • Page 1 INSTRUCTION MANUAL INTERMATIC MULTIPURPOSE CONTROL MECHANISM MODEL: P1353ME 12345 ATTENTION READ CAREFULLY BEFORE ATTEMPTING TO INSTALL YOUR INTERMATIC MULTIFUNCTION CONTROL SWITCH. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! RETAIN FOR FUTURE REFERENCE. 158--01654...
  • Page 2 Table Of Contents ............2 If within the warranty period specified, this product fails Introduction ..............3 due to a defect in material or workmanship, Intermatic Warning and General Safety Information ......4 Incorporated will repair or replace, at its sole option, the unit free of charge.

  • Page 3: Introduction

    Designed as a mechanism, the Intermatic multipurpose control can be installed in any existing Intermatic panel or rain tight enclosure in the industry today. We are confident you will find this control to perform to your high expectations, and continue to watch for new innovations from Intermatic Inc.

  • Page 4: Warning And General Safety Information

    WARNINGS AND GENERAL Clearing all scheduled ON/OFF SAFETY INFORMATION Events Quickly WARNING Risk of Fire or Electric Shock • Disconnect all power before installing or servicing this To clear all schedules, follow the procedure below. This control or its connected loads. function is helpful when you want to start your event programming from scratch and disable all the current •...

  • Page 5: Installation Tips & Useful Information

    1. It’s important to review, and install, all the possible the internal programming for service purposes, or low voltage accessories, (i.e. Firemen Switch, compatibility issues with future Intermatic Designs. To Remote Control, Freeze Probe), prior to installing do so, simply follow the below procedure: the Multi-purpose Control into an Intermatic control 1.
  • Page 6 Special Features Setting The Countdown Timer The countdown timer allows you to turn on a desired load for a predefined amount of time without interrupting or setting a new On/Off event. This feature is useful when chemicals are added to the pool or spa water, and the pump needs to circulate the chemicals for a minimum amount of time.
  • Page 7 Cleaner Pump Display The cleaner pump should always be connected to circuit #3 and the mode setting should be set to #3 or #4, depending on the filter pump configuration. Before the cleaner pump can come on, circuit #1 (filter pump) must be on for more than 30 seconds.

  • Page 8: Step #2 Installing The Shutter Bushing

    STEP #2 Freeze Control Display INSTALLING THE SHUTTER BUSHING The following example illustrates how the display will look when the freeze protection feature is activated. In this example, the freeze sensor was connected, enabling the freeze protection feature. Circuits #1 & #3 were Control Center programmed to come on during a freeze condition.
  • Page 9 Display Definitions STEP #3 Cool Down (Fireman Switch) Runtime Display ROUTE ACCESSORY WIRES AND CONNECTORS INTO ENCLOSURE AND The following example illustrates how the display will CONNECT TO THEIR PROPER LOCATIONS look when the cool down feature is activated. In this example, the cool down time was set for 5 minutes, and Installation Procedure is in the process of counting down to zero, showing...
  • Page 10 INTO THE INTERMATIC PANEL NOTE The freeze protection programming will not appear unless you have installed the Intermatic freeze IMPORTANT NOTE sensor, (See Fig. #1 for installation and ordering details). Since you have easy access to the back of the...
  • Page 11 STEP #9 STEP #5 Setting The Cool Down Time CUT & INSTALL TUBING OVER THE LOW (Fireman Switch) VOLTAGE ACCESSORY WIRES AND/OR CORDS NOTE 1. The installation of the corrugated tubing kit (part The cool down time is a time defined by the programmer. of mechanism), Part Number 156PA12927A It’s used in conjunction with a pool heater, (See Fig.
  • Page 12 3. Once you are satisfied with the start time, press and release the Enter Key. You have now saved the start time, and the display will prompt you for the desired Stop time for circuit #1’s 1st event. 4. Use the Up and Down arrows keys to define the stop time for circuit #1’s 1st event.
  • Page 13 STEP #8 Setting On/Off Times for Each Circuit 1. If you pressed and released the program key from the previous procedure, you should see the following display, if not, press and release the program key twice to get to the following display. The display is defined as: Circuit #1’s first event has not been defined.
  • Page 14 STEP #7 Setting The Time 1. Press and release the program key. The displayed time will start to blink, and the program menu will display Set Clock. 2. Use the Up and Down arrows to change the time. Take note of the AM and PM indicator when setting time.

  • Page 15: Mode Table

    IMPORTANT NOTE Setting The Mode You should have now completed installing the Intermatic Multipurpose Control and available accessories. Prior 1. With a small blunt instrument, press and hold the to wiring the equipment to the control, you should Mode Button (Approximately 5 seconds) until the...
  • Page 16 STEP #6 Mode 7 – (Pump High, Pump Low) Circuit one and two are dedicated single pole outputs for a two-speed MULTIPURPOSE CONTROL pump load. Circuits one and two will never be ON at RATINGS, WIRING AND SETTING THE MODE the same time.
  • Page 17 IMPORTANT NOTE CONCERNING SETTING THE Mode 6 – (Aux1, Aux2, Aux3) Each of the three single ON/OFF TIMES FOR EACH MODE pole circuits are defined generically, and can control any load within each of its individual circuit ratings. All 1. The “ON/OFF” keys are provided for service operations, three circuits act independent of each other.
  • Page 18 Example: You would like to run the pump in high speed for 6 Mode 5 – (Pump L1, Pump L2, Aux3) Circuit one and two hours and low speed for the remainder of the time. Program are now coupled together making up one circuit capable a 6-hour event for high speed, and an 18-hour event for of switch both poles of a power source.
  • Page 19 Mode 4 – (Pump High, Pump Low, Cleaner Pump) Defining & Wiring Circuit one and two are dedicated single pole outputs for Each Mode a two-speed pump load. Circuits one and two will never Mode 1 – (Aux1, Aux2, Aux3) Each of the three single be ON at the same time, consistent with a two-speed pole circuits are defined generically, and can control any pump application.
  • Page 20 Mode 2 – (Pump High, Pump Low, Aux3) Circuit one Mode 3 – (Pump, Aux2, Cleaner Pump) Circuit one and two are dedicated single pole outputs for a two- and three are dedicated single pole outputs for a single speed pump load. Circuits one and two will never be speed pump working with a pressure side cleaner ON at the same time, consistent with a two-speed pump pump.
  • Page 21 POOL / SPA EQUIPMENT CONTROL ACCESSORIES SAFETY SHIELD KIT WARNING Risk of Fire or Electrical Shock! Turn power OFF at main panel before installing the Digital Clock Mechanism and/or this Safety Shield. A) If this is what you have... (Two Mechanical timers in one Panel) A 1.
