Intermatic P1161 Owner's Manual

IMPORTANT SAFETY INSTRUCTIONS
DANGER: To reduce the risk of injury:
• Do not permit children to operate the timer or pool/spa unless
they are closely supervised at all times.
• Test GROUND FAULT protection regularly. If it fails to reset, DO
NOT USE the pool or spa! Contact a qualified service technician.
• Always disconnect electricity before servicing this timer or
the equipment connected to it. THIS TIMER IS NOT TO BE
USED AS A POWER DISCONNECT.
• Use timer only for its intended use as described in this manual.
• Install only on a GROUNDED 120VAC circuit protected by a
fuse or circuit breaker.
SAVE THIS MANUAL

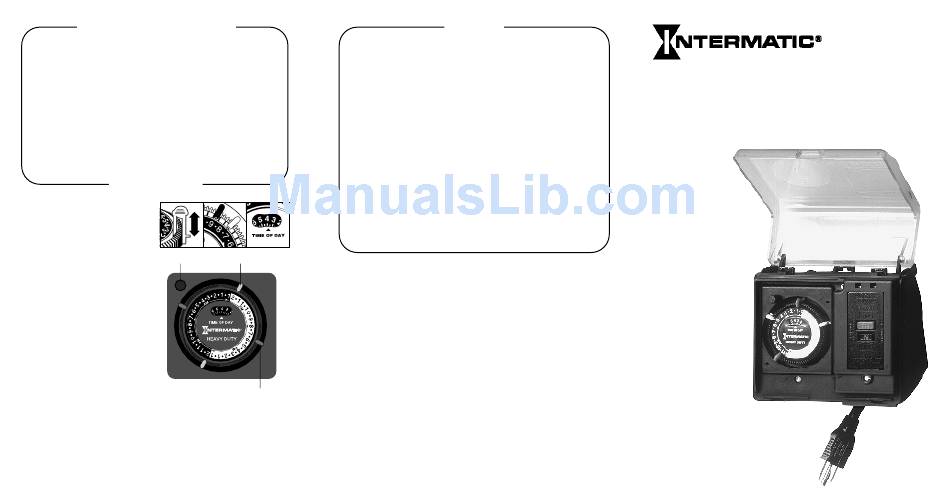

How to Set the Timer
1. Insert ON (green) and OFF
(red) trippers into dial at desired
ON and OFF times (Fig. 1). Be
Fig. 1
sure trippers are firmly pressed
Manual Knob
against dial surface and at least
one space is left between ON
and OFF trippers (Fig. 2).
2. Turn dial clockwise one or
more revolutions until correct
time of day is next to arrow in
center of dial (Fig. 3).
3. Plug pump into timer receptacle
and plug timer cord into outlet.
If timer is used outdoors, outlet Extra trippers may be stored on
the dial by placing same color
must be suitable for wet locations.
trippers next to each other.
For Early ON or OFF Operation
Turn manual knob counter-clockwise to desired ON or OFF position.
Timer will follow next scheduled automatic operation.
If within one (1) year from the date of installation this product fails
due to a defect in material or workmanship, Intermatic Incorporated
will repair or replace it free of charge.
This warranty does not cover labor for removal or reinstallation
and does not apply to (a) damage caused by accident, abuse,
mishandling or dropping (b) a unit which has been subject to
unauthorized repair (c) units not used in accordance with directions
(d) damages exceeding the cost of the product. Some states do not
allow a limitation of damages, so the foregoing warranty may not
apply to you. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
Warranty service is available if the defective product is returned
with proof of purchase and date of installation either (a) to the dealer
from whom the unit was purchased or (b) by shipping prepaid to
Intermatic Incorporated/After Sales Service, 7777 Winn Rd., Spring
Grove, IL 60081-9698/815-675-7000 http://www.intermatic.com
Please be sure to wrap the product securely to avoid shipping
damage.
Fig. 2 Fig. 3
ON Tripper (Green)
About Intermatic Incorporated
Intermatic Incorporated is the largest manufacturer of timers in
the world. For more than 50 years, we have been committed to
making quality timers, and it is our hope that this product will
provide you with convenience, service and peace of mind for
many years. If you have any questions about your Portable Pool and
Spa Timer, or would like to receive information on our low
voltage garden lighting or home automation and protection
products, please call or write to us at . . .
OFF Tripper (Red)
Printed in U.S.A.
WARRANTY
INTERMATIC INCORPORATED
©Copyright 1997 Intermatic Inc. 158SB9378
Portable Safety
Pool & Spa Timer
with Built-In Ground Fault Protection
Model P1161
OWNER'S
MANUAL
Electrical Rating
15 amp (1800 watt) resistive
15 amp (1800 watt) tungsten
1 H.P. (15 FLA, 90 LRA) motor
120V 60 Hz
