Modbus Server – M-Bus
®
IntesisBox

5 Set-up process and troubleshooting

Pre-requisites

It is necessary to have a M-Bus installation, device or interface operative and well connected to the corresponding
M-Bus port of IntesisBox and a Modbus RTU Master or Modbus TCP client connected to their corresponding ports
as well.
Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not
supplied by Intesis Software SLU for this standard integration.
Items supplied by Intesis Software for this integration are:
•
IntesisBox gateway.
•
Link to download the configuration tool.
•
Product documentation.
IntesisBox MAPS. Configuration & monitoring tool for IntesisBox Modbus series

5.2.1 Introduction

IntesisBox MAPS is a Windows
Modbus Server series.
The installation procedure and main functions are explained in the IntesisBox MAPS User Manual. This document
can be downloaded from the link indicated in the installation sheet supplied with the IntesisBox device or in the
product website at www.intesisbox.com
In this section, only the specific case of Modbus to M-Bus systems will be covered.
Please check the IntesisBox MAPS user manual for specific information about the different parameters and how to
configure them.

5.2.2 Connection

To configure the IntesisBox connection parameters press on the Connection button in the menu bar.
© Intesis Software S.L.U. - All rights reserved
IntesisBox is a registered trademark of Intesis Software SLU
®
compatible software developed specifically to monitor and configure IntesisBox

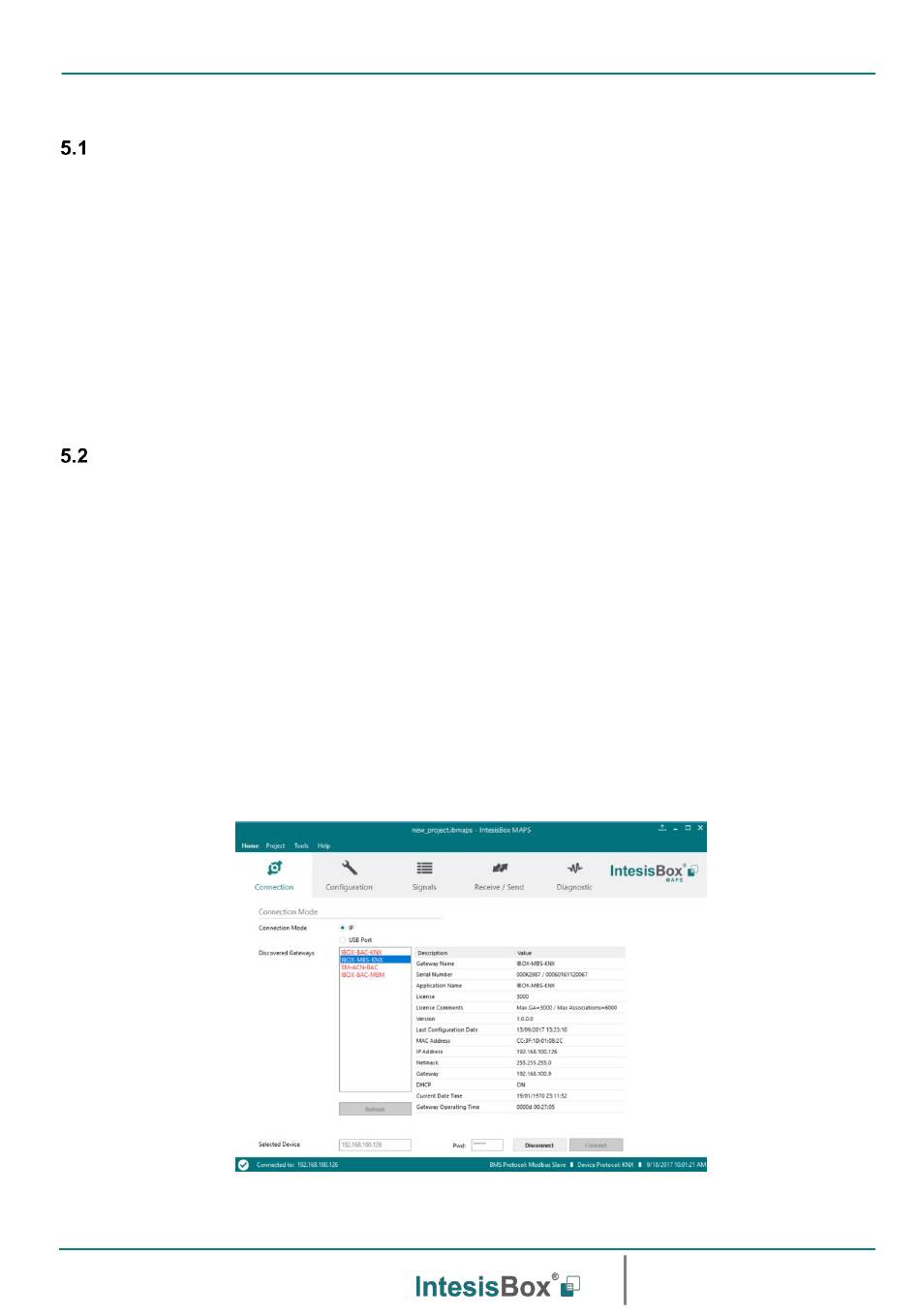

Figure 5.1 MAPS connection
User Manual r1.1 EN
