Installation Instructions

1.4 Assembly Guidelines

1 R/S/T terminal label
2 M10x30 machine screw
3 M10 nut
4 Mains input terminal block
5 M5x12 machine screw
6 U/V/W terminal label
7 Motor terminal block
8 Cable retaining clip
9 M10 nut with captive washer
10 Cable clamp adapter
11 Power terminal mounting plate (IP21/IP54) 22

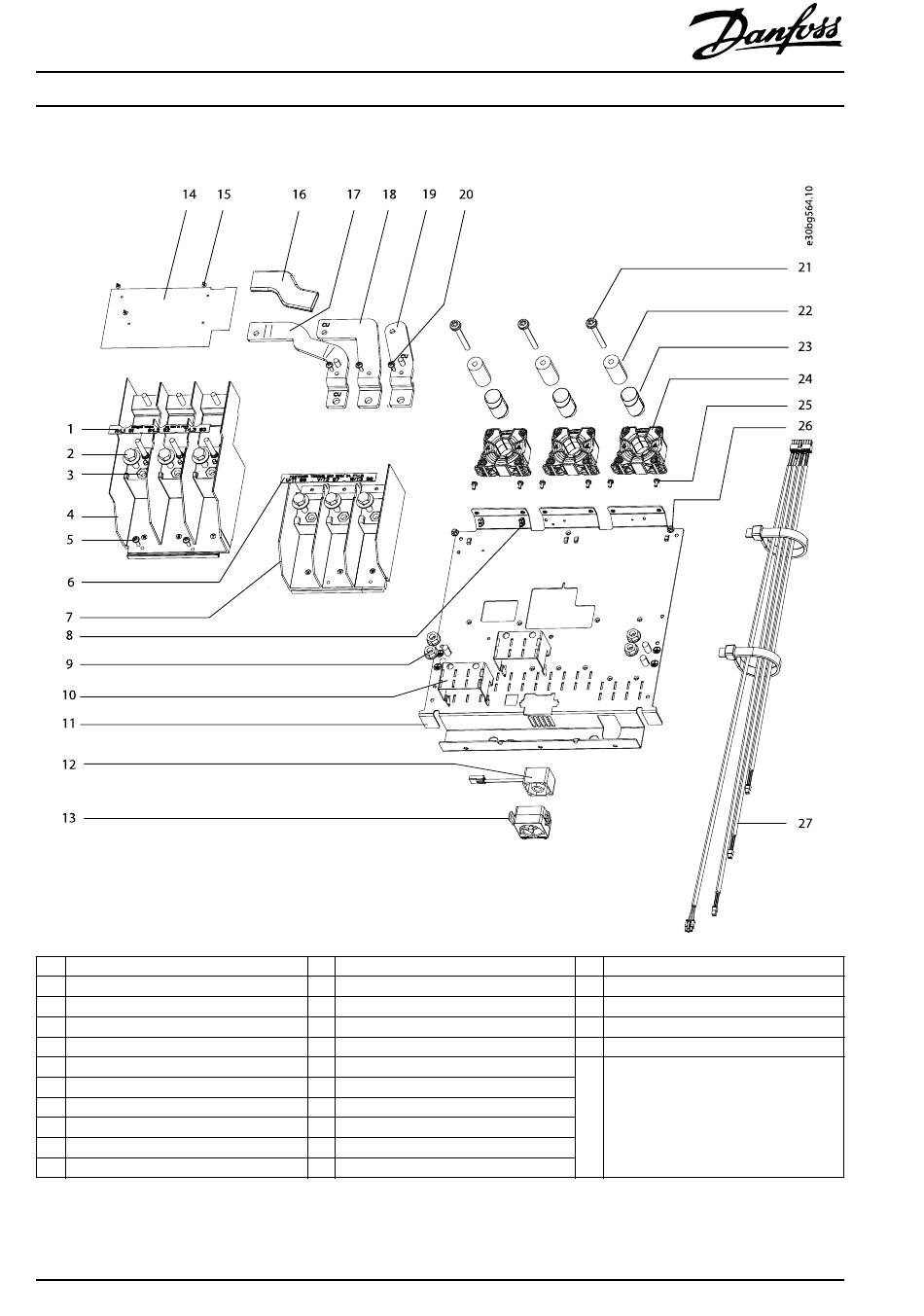

Illustration 1.4 Exploded View of 500 A Current Sensor Kit
6
300 A/500 A Current Sensor Kit for D2h/D4h/D7h/D8h Drives
®
VLT FC Series FC 102, FC 103, FC 202, FC 302
12 Mixing fan
13 Mixing fan housing
14 EMC shield
15 Plastic mounting button
16 Busbar insulator sleeve
17 Motor busbar, U
18 Motor busbar, V
19 Motor busbar, W
20 M5x16 torx screw
21 M8x70 screw
Cylinder busbar
Danfoss A/S © 07/2018 All rights reserved.
23 Nomex tube
24 Current sensor
25 M4x10 thread-forming screw
26 M5 nut
27 Wire harness (current sensor cables)
– Not shown: multiple wire guide, wire
routing clip, M5x11 thread-cutting screw,
power terminal mounting plate (IP20/
Chassis), and IGBT busbars (in 300 A
current sensor kit only).
MI70V202
