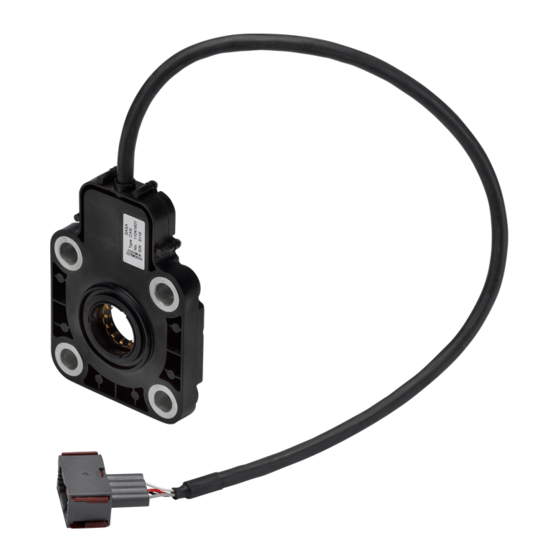

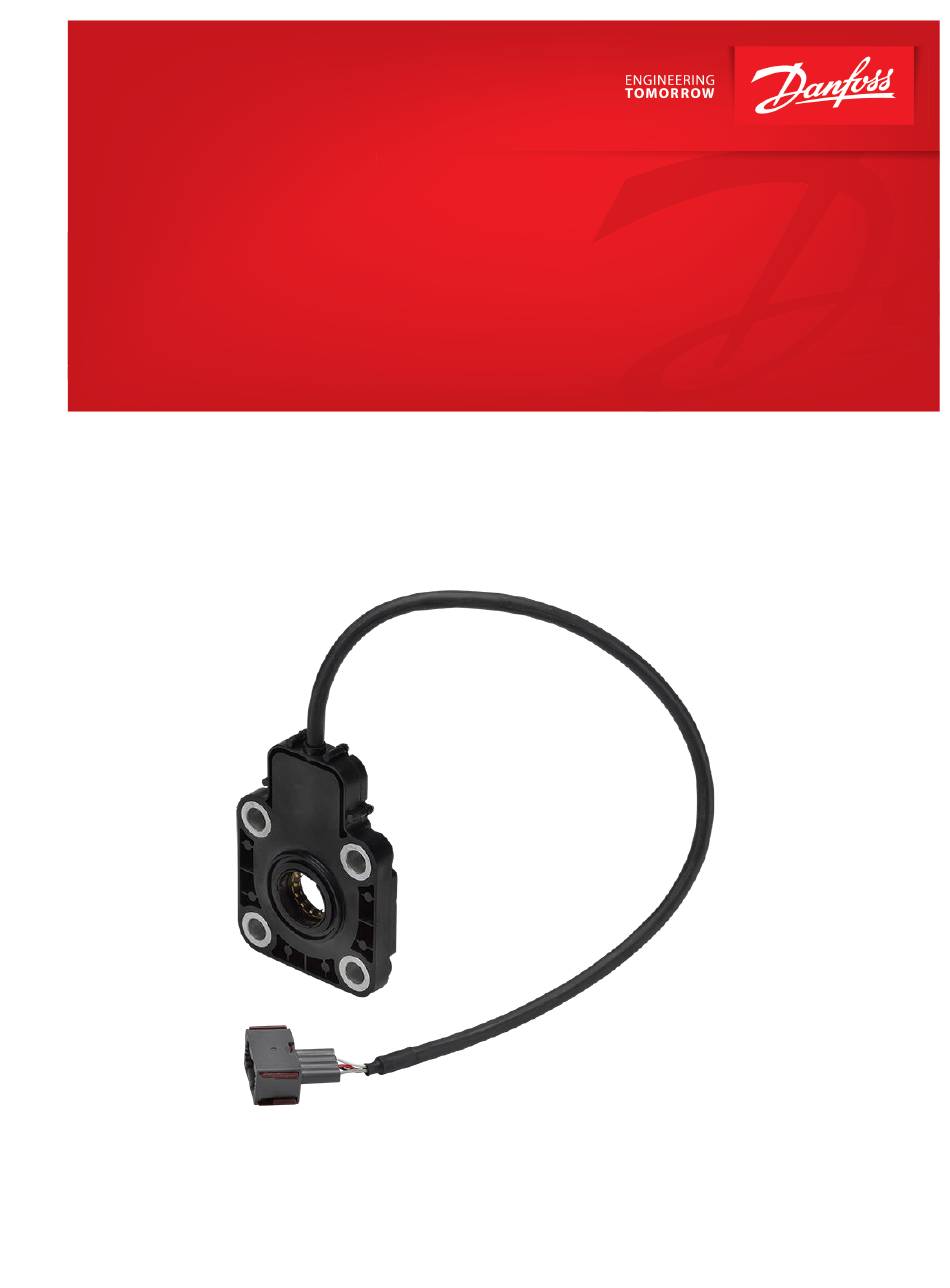

- Page 1 Installation Guide Steering Wheel Sensor Type SASA powersolutions.danfoss.com...
- Page 2 There is a risk of bending the spline profile of SASA sensor in case of using force. Make sure that the spline profile of the SASA sensor is aligned to the profile of the steering column shaft. A safe method of assembly is to place SASA sensor on the steering column spline shaft first - and not...
- Page 3 Installation Guide Steering Wheel Sensor, Type SASA SASA Assembly Deutsch connector version, type DT04-4P-CE02 Deutsch connector pin-out 1. CAN-High 2. CAN-Low 3. + Supply voltage 4. Ground Housing DT04-4S-CE02 Crimp 0462-201-16141 Wedge AMP or Deutsch operating conditions Description Type Value...
- Page 4 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
