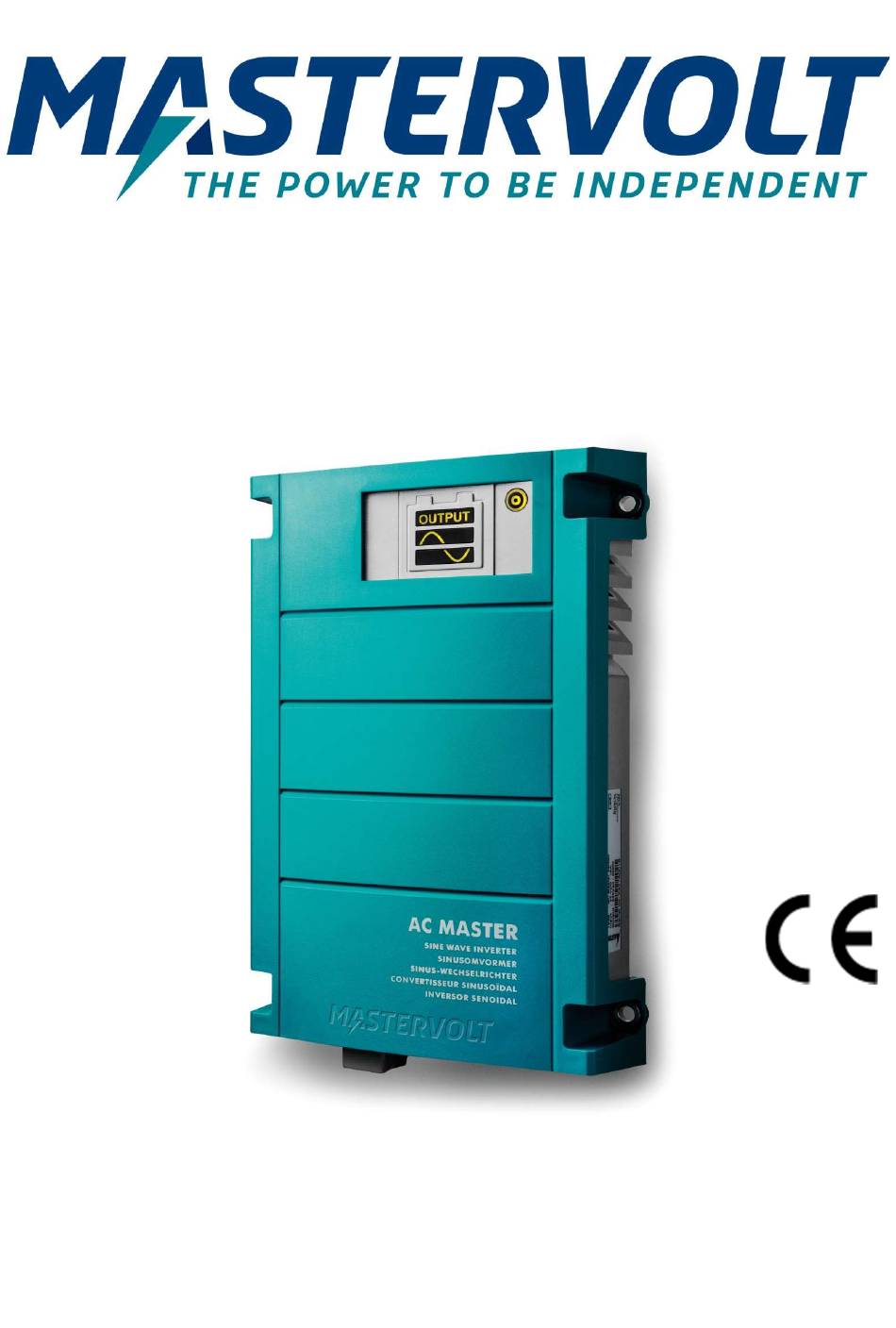

- Page 1 AC Master 12/300, 12/500, 24/300, 24/500 PURE SINE WAVE INVERTER USER AND INSTALLATION MANUAL 1000014304/01 To download this manual in other languages, please visit our website: www.mastervolt.com...
-
Page 2: Table Of Contents
AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual Table of contents Safety instructions ........................... 3 Liability ............................3 Disclaimer ............................3 Warranty ............................3 Correct disposal of this product......................3 Product description .......................... 4 Installation instructions ........................5 Operation ............................ -
Page 3: Safety Instructions
Consult our most current Terms & Conditions of Sale. 4 Warranty Mastervolt assures the product warranty of the AC Master during two years after purchase, on the condition that the product is installed and used according to the instructions in this manual. -
Page 4: Product Description

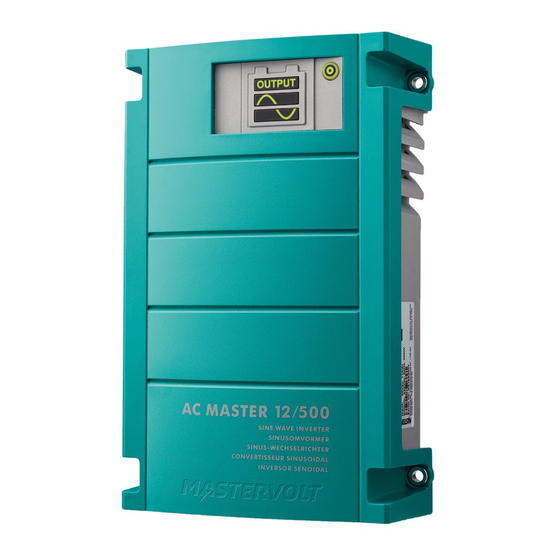

AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual 6 Product description The AC Master is a sine wave inverter. The AC Master converts DC power from the battery into AC output power. Identification label Important information required for service or... -
Page 5: Installation Instructions
AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual Connections Main switch DC fuse(s) DC input cables (1.5m) Chassis ground terminal (M6) AC output socket (IEC) 7 Installation instructions This section provides a step by step instruction of the basic installation of the AC Master. - Page 6 AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual Step 3. Select a location to install. • Install the AC Master in a well-ventilated room protected against rain, snow, spray, vapour, bilge, moisture and dust. • Ambient temperature: -20 to 40°C / -4 to 104°F.
- Page 7 AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual Step 7. Connect the battery to the DC input. Do not place the fuse yet! Step 8. Wire the IEC plug. See also figure Connections on page 5. Front view of the IEC C14 male plug Step 9.
-
Page 8: Operation
AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual 8 Operation Switching ON and Power Saving Move the main switch to position I (ON) or II (POWER SAVING). Power saving mode scans the output and compares the detected load to the threshold value (40W). If a load is detected which is below the threshold value, the inverter switches to power saving mode. -
Page 9: Troubleshooting
AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual 9 Troubleshooting Problem Possible cause What to do? All LED indicators are off Main switch is set to the OFF Set the main switch in ON position. position. DC fuse(s) blown. -
Page 10: Specifications
AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual 10 Specifications AC Master 12/300-230V AC Master 24/300-230V Part number 28010302 28020302 General Output voltage 230Vac (± 5%) – 230Vac (± 5%) – 50Hz (± 0.1%) 50Hz (± 0.1%) - Page 11 AC Master 12/300, 12/500, 24/300, 24/500 – User and Installation Manual AC Master 12/500-230V AC Master 24/500-230V Part number 28010502 28020502 General Output voltage 230Vac (± 5%) – 230Vac (± 5%) – 50Hz (± 0.1%) 50Hz (± 0.1%) Output waveform...
- Page 12 Mastervolt B.V. Snijdersbergweg 93 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 Email: info@mastervolt.com Web: www.mastervolt.com...
