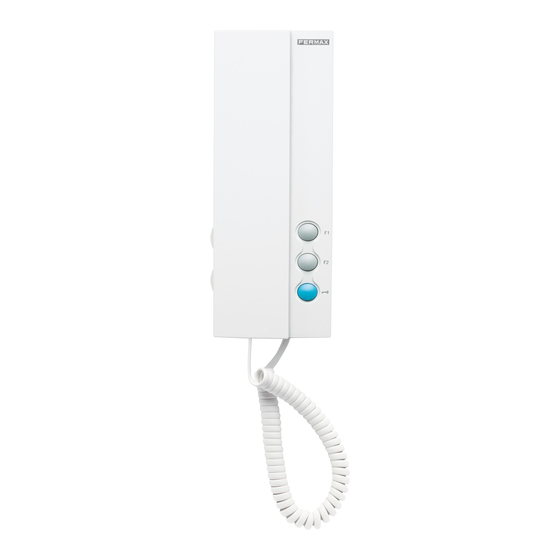

Extra Loft Duox Telephone
PROGRAMMING & INSTALLER'S MANUAL
PROGRAMMING & INSTALLER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fermax DUOX

Summary of Contents for Fermax DUOX

  • Page 1 Extra Loft Duox Telephone PROGRAMMING & INSTALLER’S MANUAL PROGRAMMING & INSTALLER’S MANUAL...
  • Page 2 Fermax electronics develops and manufactures renown systems that meet the highest design and technology standards. Your FERMAX telephone will allow you to communicate with the entry panel and open the front door if you wish. We hope you enjoy its range of functions.

  • Page 3: Table Of Contents

    INDEX EXTRA LOFT DUOX TELEPHONE Installation Connections Diagrams Technical Characteristics Available Functions Capacity Telephone Programming - a) From the entry panel - b) From the doorbell Telephone settings - Ringtone Selection * From the panel * From Reception - Call Volume Controller...

  • Page 4: Installation

    CONNECTIONS Connection B, B : Bus DUOX: Power, data and audio . T, -: Connection House entrance „door bell.“ (P1). A, -: Call extension connection or light and bell activator. F1: Button for additional functions. It provides a negative upon being activated. You will fi nd more details in „LOFT Telephone Operation - Auxiliary function F1“.
  • Page 5 A, -: The telephone has these terminals for connecting a call extension ref. 2040 or a light and doorbell activator. 2438 it is activated when a call is received from the entry panel, reception and the home´s door. Note: If the call disconnection (do not disturb mode), is activated, the terminal will continue working.
  • Page 6 TECHNICAL FEATURES Power supply (non-polarised) 18 Vdc Consumption (±5%) in standby + led < 15 mA maximum 190 mA. Maximum number of terminals per residence Telephone address: 6 decimal digits 000001...999999 Operating Temperature -5º, +40ºC 1.75“ 16  Loudspeaker Microphone: Electret Dynamic resist.

  • Page 7: Available Functions

    AVAILABLE FUNCTIONS The functions available on the DUOX Extra telephone are summarised in the following list: · Call Reception · Open door · Call to reception · Ringtone selection · Programming from the panel or from the doorbell · Audio connection upon picking up ·...
  • Page 8 3 times quickly, it is activated as a MASTER panel and a confi rmation tone sounds (beep-beep). You can also confi gure it via a code on the keypad. For more information see the DUOX Panel Settings at www.fermax.com.

  • Page 9: Telephone Programming

    b) Programming the phones address via the doorbell Note: Only if the phone has not been previously programmed, that is, if no address has been saved. Telephone not yet programmed, red LED blinks. With the telephone connected and hung-up: 1. Press the door bell or short terminals “T” and “-”.

  • Page 10: Telephone Settings

    LOFT DUOX EXTRA TELEPHONE SETTINGS Ringtone Selection. The telephone allows you to select different ringtones for calls from the entry panels and calls made from reception. Accessing „Ringtone Selection“ Mode We can select from 5 ringtones. 1. From panel: With the telephone in standby and hung-up, press the F2 button (you will hear a beep), if maintained pressed for 5 seconds you will hear the current melody.

  • Page 11: Auxiliary Function F1

    - When you press the F1 button the telephone generates a beep and via the bus transmits a com- mand to activate a Duox relay (if installed). Simultaneously the F1 terminal provides a negative, as the button is pressed.

  • Page 12: Auxiliary Function F2

    Auxiliary function F2. From the phone you can activate an auxiliary device connected to the Duox bus. For this you must perform a short press of the F2 button (less than 5 seconds otherwise it enters into the ringtone selection function).

  • Page 13: Operation

    (where one exists). F1, F2: Additional functions. (Assigned by the installer). · F1: From the telephone you can activate a duox auxiliary relay connected to a F1 terminal for an extra function such as the landing light, alarm activation, etc.

  • Page 14: Answering A Call

    “0”; and if there is a conversation channel available, (if it isn´t available, upon hanging up you will hear a busy tone for 15 seconds). For more information see the DUOX Panel Settings at www.fermax.com. Note: - If the phone is not programmed, the auto-start will not function.

  • Page 15: Auto-Start

    Auto-Start ¸ max. 90 Seg./Sec./Sek. Notes: - The conversation is private, no other terminal can hear it. - While the audio channel is open the input audio can be regulated with the potentiometer, without affecting the call volume. The selected setting will not be altered if the call volume is subsequently adjusted.
  • Page 16 Call to reception This is done bypressing the button when the telephone is in standby and hung-up. The call to reception is made to the reception that is activated for the block in which the telephone is, sounding a beep when the confi rmation is received from this reception. If the block´s guard unit is not active (night mode) the call to a guard unit is made to the general guard unit if there is one active.
  • Page 17 Page 17...
  • Page 18 Page 18...
  • Page 19 Page 19...
  • Page 20 Avda. Tres Cruces, 133 • 46017 Valencia (Spain) Telf. 96 317 80 00 • Fax 96 377 07 50 Telf. Export: 00 34 96 317 80 02 www.fermax.com• fermax@fermax.com...
