Table of Contents

SL230 / SL235 / SL250
Capacity: 3000, 3500 resp. 5000 kg
These instructions contain general data. Any deviation from customers prints or specifications should be clarified before
Important: Check the steel cassette for damage before installation. Do not install a damaged cassette.
Contact Rotary Lift customer service. If the lift has a chance to be exposed to the elements, protect the lift.
© November 2013 by BlitzRotary GmbH.
Installation Instructions ROTARY inground lifts SL230/SL235/SL250 • Release: 11/2013 • Page 1
Models

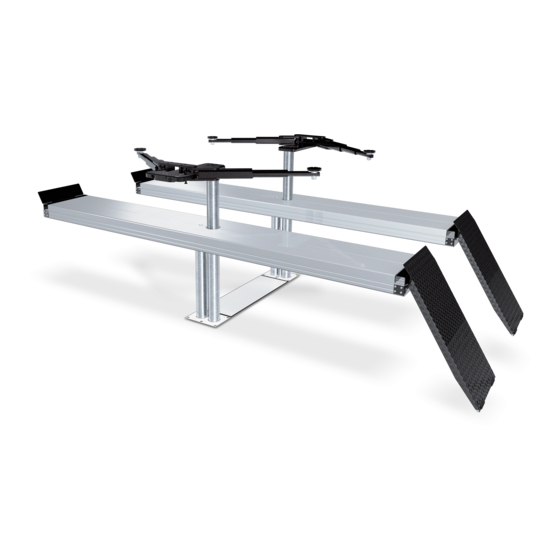

SL235MP
SL235RA
SL230RA-PE
SL250RA
proceeding with lift installation.
SL235S3
SL235BR
SL235BR-RA
SL250BR-RA
SL235DOP
I
N
S
T
A
L
L
A
T
I
O
N
I
N
S
T
R
U
C
T
I
O
N
InstInstr N1.8
S
Rev. 28.11.2013
