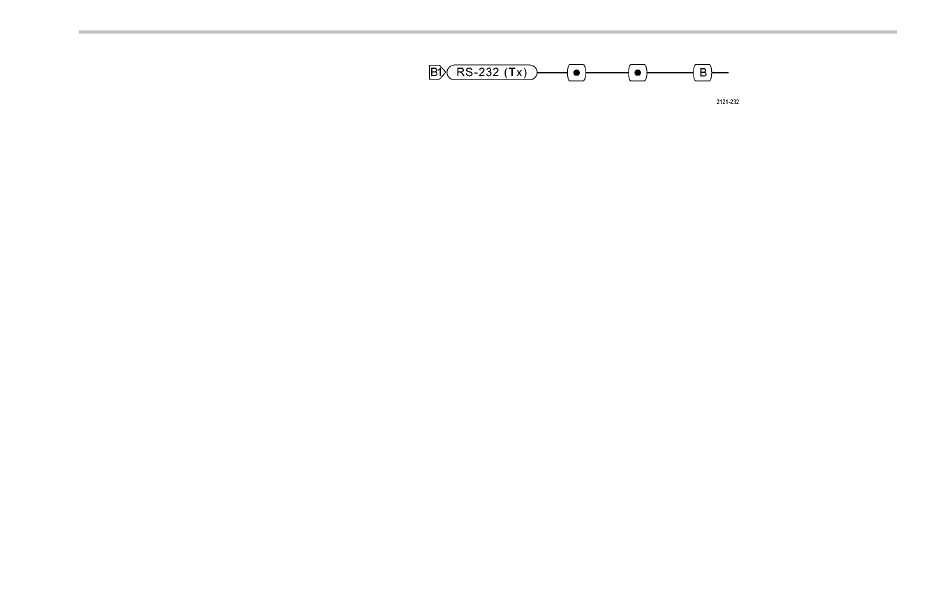

When decoding an RS-232 bus in ASCII mode,
a large dot indicates that the value represents
a character outside the printable ASCII range.
Setting Up Digital Channels
Use front-panel buttons and knobs to set up your instrument to acquire signals using the digital channels.
