Using Advanced Math - Tektronix DPO4034 User Manual

Analyze Waveform Data
Description
Blackman-Harris:
This is the best window for measuring the amplitude of frequencies but worst at resolving
frequencies.
Use Blackman-Harris for measuring predominantly single frequency waveforms to look for higher
order harmonics.

Using Advanced Math

The advanced math feature lets you create a custom math waveform expression that can incorporate active and reference
waveforms, measurements, and/or numeric constants. To use this feature:

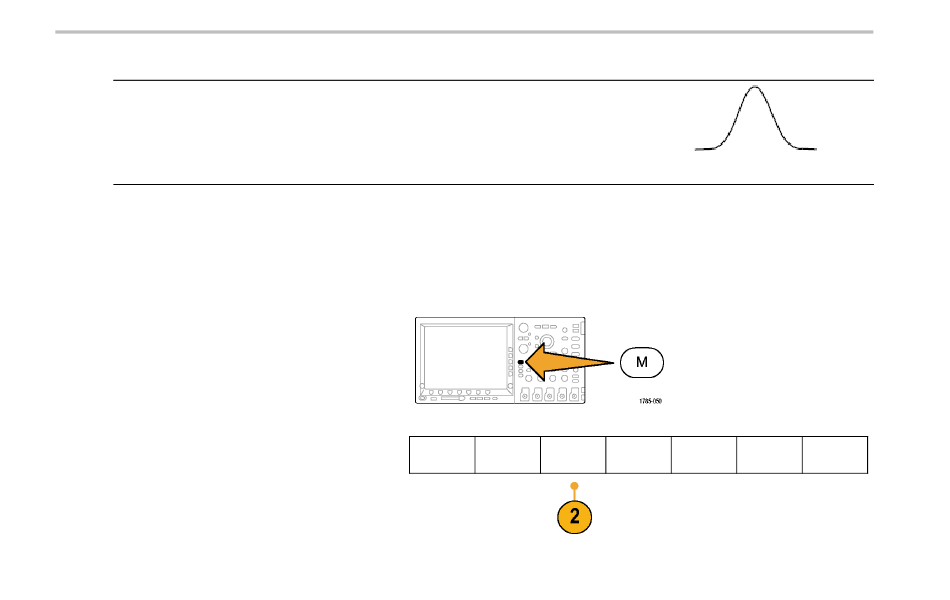

1. Push Math.
2. Push Advanced Math.
