Section 3: Installation
June 2012
1.
2.
3.
Note the following LCD temperature limits:
Operating:–40 to 175 °F (–40 to 80 °C)
Storage:–40 to 185 °F (–40 to 85 °C)

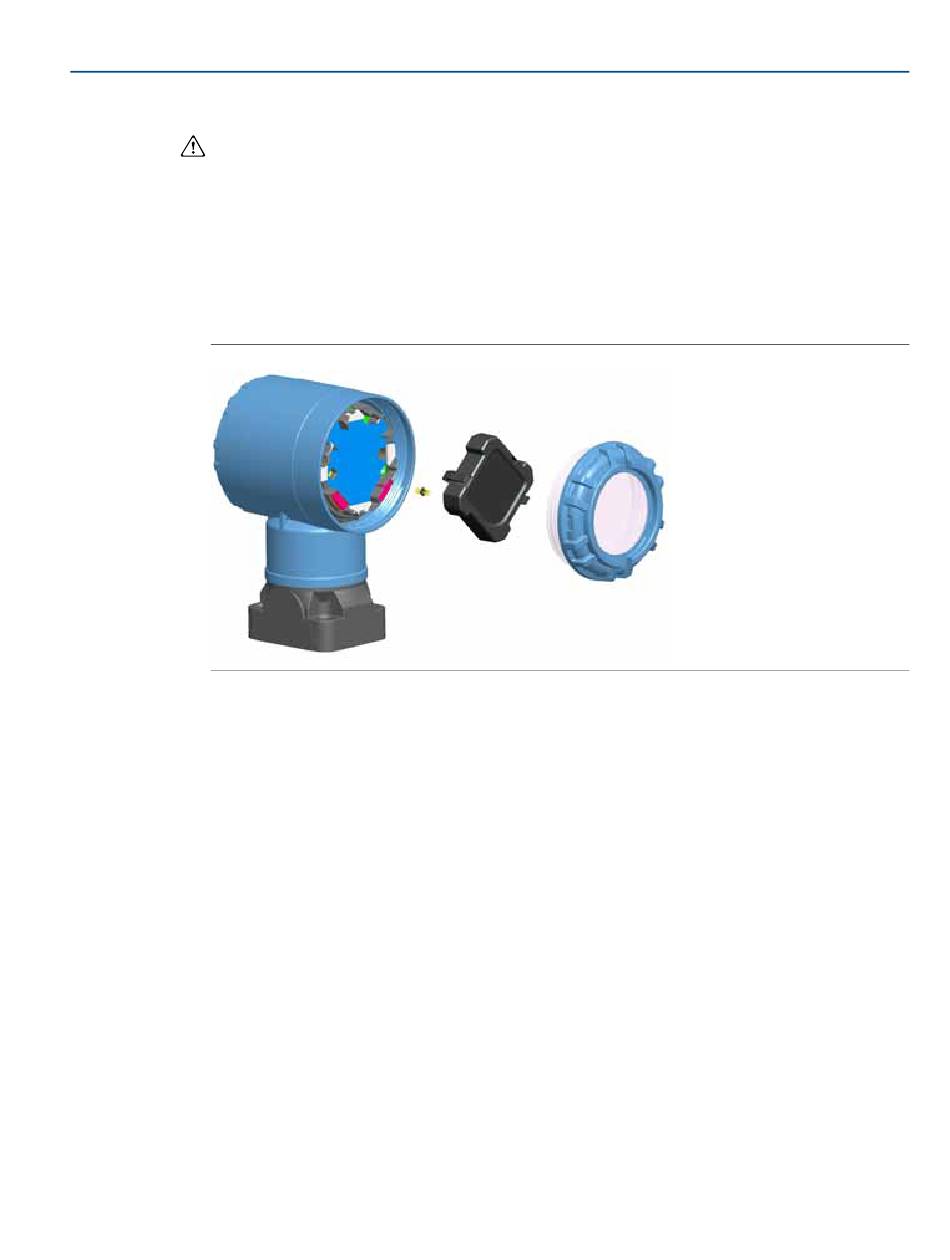

Figure 3-5. Optional LCD Display
3.5

Rosemount 304, 305 and 306 Integral Manifolds

The Rosemount 305 is available in two designs: Traditional and Coplanar. The traditional 305
Integral Manifold can be mounted to most primary elements with mounting adapters in the
market today. The Rosemount 306 Integral Manifold is used with In-line transmitters to provide
block-and-bleed valve capabilities of up to 10000 psi (690 bar). The Rosemount 304 comes in
two basic styles: traditional (flange x flange and flange x pipe) and wafer. The 304 traditional
manifold comes in 2, 3, and 5-valve configurations. The 304 wafer manifold comes in 3 and 5
valve configurations.
36
Remove the back cover and Power Module.
Remove the transmitter cover opposite the field terminal side. Do not remove the
instrument covers in explosive environments when the circuit is live.
Engage the four-pin connector into the LCD display and snap into place.
Reference Manual
00809-0100-4102, Rev AA
Installation
