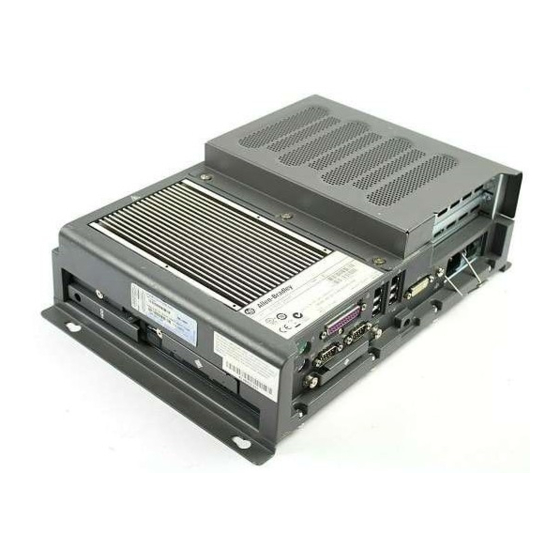

Industrial Integrated Display Computers
Catalog Numbers 6181P-2PXP, 6181P-2PXPDC, 6181P-12NPXP, 6181P-12TPXP,
6181P-12TPXPDC, 6181F-12TPXP, 6181F-12TPWE, 6181F-12TPXPDC,
6181F-12TPWEDC, 6181P-12NSXP, 6181P-12TSXP, 6181F-12TSXP,
6181F-12TSWE, 6181P-15NPXP, 6181P-15TPXP, 6181P-15TPXPDC,
6181P-15TPXPSS, 6181F-15TPXP, 6181F-15TPWE, 6181F-15TPXPDC,
6181F-15TPWEDC, 6181F-15TPXPSS, 6181F-15TPWESS, 6181P-15NSXP,
6181P-15TSXP, 6181F-15TSXP, 6181F-15TSWE, 6181P-17NPXP, 6181P-17TPXP,
6181P-17TPXPDC, 6181F-17TPXP, 6181F-17TPWE, 6181F-17TPXPDC,
6181F-17TPWEDC, 6181F-17TPXPSS, 6181F-17TPWESS, 6181P-17TPXPSS,
6181P-17NSXP, 6181P-17TSXP, 6181F-17TSXP, 6181F-17TSWE
Topic
Installation Instructions
Page
2
3
4
5
6
7
9
14
15
17
18
20
24
23
25
26
28
Advertisement
Table of Contents
Related Manuals for Rockwell Automation 6181P-2PXP
Summary of Contents for Rockwell Automation 6181P-2PXP
-
Page 1: Table Of Contents
Installation Instructions Industrial Integrated Display Computers Catalog Numbers 6181P-2PXP, 6181P-2PXPDC, 6181P-12NPXP, 6181P-12TPXP, 6181P-12TPXPDC, 6181F-12TPXP, 6181F-12TPWE, 6181F-12TPXPDC, 6181F-12TPWEDC, 6181P-12NSXP, 6181P-12TSXP, 6181F-12TSXP, 6181F-12TSWE, 6181P-15NPXP, 6181P-15TPXP, 6181P-15TPXPDC, 6181P-15TPXPSS, 6181F-15TPXP, 6181F-15TPWE, 6181F-15TPXPDC, 6181F-15TPWEDC, 6181F-15TPXPSS, 6181F-15TPWESS, 6181P-15NSXP, 6181P-15TSXP, 6181F-15TSXP, 6181F-15TSWE, 6181P-17NPXP, 6181P-17TPXP, 6181P-17TPXPDC, 6181F-17TPXP, 6181F-17TPWE, 6181F-17TPXPDC,... -
Page 2: Important User Information
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. -
Page 3: Environment And Enclosure Information
Industrial Integrated Display Computers Environment and Enclosure Information Review the information on enclosures and environments before installing the product. Environment and Enclosure ATTENTION This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to 2000 m (6561 ft) without derating. -
Page 4: European Union Directive Compliance
European Union Directive Compliance This product meets the European Union Directive requirements when installed within the European Union or EEA regions and have the CE mark. A copy of the Declaration of Conformity is available at the Rockwell Automation website http://ab.com under Product Certification. -
Page 5: Product Options
Industrial Integrated Display Computers Product Options This table summarizes the product options available for the industrial integrated display computers. Catalog Number Model Series Display Size Touchscreen Package 6181P-2PXP Non-display Performance 6181P-2PXPDC 6181P-12NPXP 1200P 12.1 in. Performance 6181P-12TPXP 6181P-12TPXPDC 6181F-12TPXP 6181F-12TPWE... -
Page 6: Operating System
Industrial Integrated Display Computers Catalog Number Model Series Display Size Touchscreen Package 6181P-17NPXP 1700P 17 in. Performance 6181P-17TPXP 6181P-17TPXPDC 6181F-17TPXP 6181F-17TPWE (1)(2) 6181F-17TPXPDC (1)(2) 6181F-17TPWEDC 6181F-17TPXPSS 6181F-17TPWESS 6181P-17TPXPSS 6181P-17NSXP Standard 6181P-17TSXP 6181F-17TSXP 6181F-17TSWE Models with a catalog number ending in DC operate from DC power. Models with a catalog number with a base number ending in F have solid state hard drives. -
Page 7: Multilingual User Interface Cd Pack
Industrial Integrated Display Computers Computers with Windows Embedded Standard 2009 include a utility for configuring the Enhanced Write Filter (EWF) and Hibernate Once Restore Many (HORM) features. Refer to the EWF/HORM Configuration Utility technical data, publication 6000-TD003, for instructions. To obtain the original factory image on bootable external-recovery media, contact your local technical support center. - Page 8 Industrial Integrated Display Computers Installation Guidelines Follow these guidelines to make sure your product provides safe and reliable service. • The installation site must have sufficient power. To maintain an electrically safe installation, the AC powered products must be plugged ATTENTION into a grounded outlet.
-
Page 9: Mounting Clearances
Industrial Integrated Display Computers Mounting Clearances When selecting an installation site for the computers, be sure to allow adequate clearance on the sides and rear of the computer for proper ventilation, cable connection, and hardware access. Sufficient airflow throughout the system unit is required to maintain proper cooling. Clearance should be enough to allow convenient installation or removal of peripheral components, such as the CompactFlash card. - Page 10 Industrial Integrated Display Computers Product Dimensions Product dimensions for the computers are given in mm (in). 1200P Non-display Computers 353 (13.90) 108 (4.25) 335 (13.20) 83 (3.28) 1200P Integrated Display Computer - Performance 320 (12.60) 124 (4.90) 115 (4.5) 115 (4.5) 99.8 (3.93) 349 (13.74) 14.5 (0.57)
- Page 11 Industrial Integrated Display Computers 1200P Integrated Display Computer - Standard 320 (12.60) 115 (4.5) 115 (4.5) 85 (3.36) 349 (13.74) 14.5 (0.57) Publication 6181P-IN010C-EN-P - December 2009...
- Page 12 Industrial Integrated Display Computers 1500P Integrated Display Computer - Performance 320 (12.60) 31.8 (1.25) 31.8 (1.25) 100 (3.94) 145 (5.7) 145 (5.7) 28 (1.10) 410 (16.14) 14.5 (0.57) 1500P Integrated Display Computer - Standard 320 (12.6) 32.55 (1.28) 32.55 (1.28) 144 (5.67) 144 (5.67) 86 (3.38)
- Page 13 Industrial Integrated Display Computers 1700P Integrated Display Computers - Performance 320 (12.56) 51 (2.0) 51 (2.0) 100 (3.94) 145 (5.7) 145 (5.7) 28 (1.10) 452 (17.80) 14.5 (0.57) 1700P Integrated Display Computer - Standard 320 (12.6) 51 (2.0) 51 (2.0) 150 (5.90) 150 (5.90) 86 (3.38)
-
Page 14: Install The Computer
Industrial Integrated Display Computers Install the Computer The computers support the following mounting options: • Panel mount • Wall mount (for non-display computers) Panel Mounting Guidelines Observe these guidelines when installing the unit in a panel. • Remove all electrical power from the panel before making the cutout. •... -
Page 15: Mount The Display Computer In A Panel
Industrial Integrated Display Computers Mount the Display Computer in a Panel Mounting clips secure the display computer to the panel. The number of clips varies by model. Follow these steps to mount the computer in a panel. 1. Remove power from the panel. 2. - Page 16 Tighten the mounting clips to the specified torque to provide a proper seal and prevent ATTENTION damage to the product. Rockwell Automation assumes no responsibility for water or chemical damage to the product or other equipment within the enclosure because of improper installation.
-
Page 17: Mount The Non-Display Computer On A Wall
Industrial Integrated Display Computers Mount the Non-display Computer on a Wall Four mounting screws secure the non-display computers to a wall. Follow these steps to mount a non-display computer: 1. Make sure the power is disconnected. 2. Mount the computer to a wall by using four M5 panhead screws and tighten to a torque that is appropriate for the screw and wall material. -
Page 18: Connect Peripherals
Industrial Integrated Display Computers Connect Peripherals Connect the required necessary peripherals such as keyboard and mouse. Performance and Non-display Models 1500P Model Shown Item Component PS/2 mouse port PS/2 keyboard port Parallel port Ethernet ports (RJ 45), 2 DVI-I port PCI riser slot cover Power switch Power input, AC or DC... - Page 19 Industrial Integrated Display Computers Standard Model 1500P Model Shown Item Component Power switch Serial COM port Ethernet ports (RJ 45), 2 Power input, DC Functional ground screw Power input, AC USB ports, 4 Microphone-in jack Audio line-out jack Audio line-in jack Publication 6181P-IN010C-EN-P - December 2009...
-
Page 20: Apply Power
Industrial Integrated Display Computers Apply Power The computer connects to either a 100…240V AC or 18…32V DC power source, depending on the model. • Connect the AC power cord or the DC ground connection to a power source with an ATTENTION earth ground to prevent electrical shock. - Page 21 Industrial Integrated Display Computers Connect AC Power to Standard Computers Follow these steps to connect AC power to the standard computers. 1. Connect the power cord to the AC power input (1), and secure it in place with the retention clip (2). 2.
- Page 22 Industrial Integrated Display Computers Connect DC Power Performance and non-display computers with a catalog numbers ending in DC have a DC input terminal block for connecting to a 18…32V DC power source. The DC power option supports operation from either Safety Extra-low Voltage (SELV) or Protected Extra-low Voltage (PELV) power source.
-
Page 23: Connect To A Network
Industrial Integrated Display Computers Functional Ground Screw The pre-installed functional ground screw is not required for safety or regulatory compliance. However, if a supplemental ground is desired, use the functional ground screw in the I/O port panel of the computer. If using the functional ground screw, connect the product to earth ground by using a 1.5 mm (16 AWG) or larger external wire. -
Page 24: Rtc Battery
Proper cable routing and power conditioning is required to be sure of reliable Ethernet communication in an industrial environment. Rockwell Automation recommends that you route all Ethernet cabling through dedicated metal conduits. Installing ferrite bead filters at the cable ends may also improve reliability. -
Page 25: Ship Or Transport The Product
Doing so may cause damage to the product. You must uninstall the product and place it in its original packing material before shipping. Rockwell Automation is not responsible for damage incurred to a product that is shipped or transported while installed in a machine, panel, or rack. -
Page 26: Specifications
Industrial Integrated Display Computers Specifications Industrial Integrated Display Computers Attribute Value Electrical Performance and non-display, AC Input voltage, AC 100…240V AC, autoranging Line frequency 47…63 Hz Power consumption, AC 110 VA (0.95 A @ 100V rms, 0.46A @ 240V rms) Performance and non-display, DC Input voltage, DC 18…32V DC... - Page 27 Industrial Integrated Display Computers Environmental Temperature, operating Standard 0…50 °C (32…122 °F) Performance 1700P 0…50 °C (32…122 °F) Performance 1200P, 1500P, Non-display 0…55 °C (32…131°F) Temperature, nonoperating -20…60 °C (-4…140 °F) Relative humidity 10…90% noncondensing (1)(2) 15 g (1/2 sine, 11 ms) Shock, operating 30 g (1/2 sine, 11 ms) Shock, nonoperating...
-
Page 28: Additional Resources
Rockwell Automation distributor or sales representative. Allen-Bradley and Rockwell Automation are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Publication 6181P-IN010C-EN-P - December 2009 PN-30419 Copyright ©...
