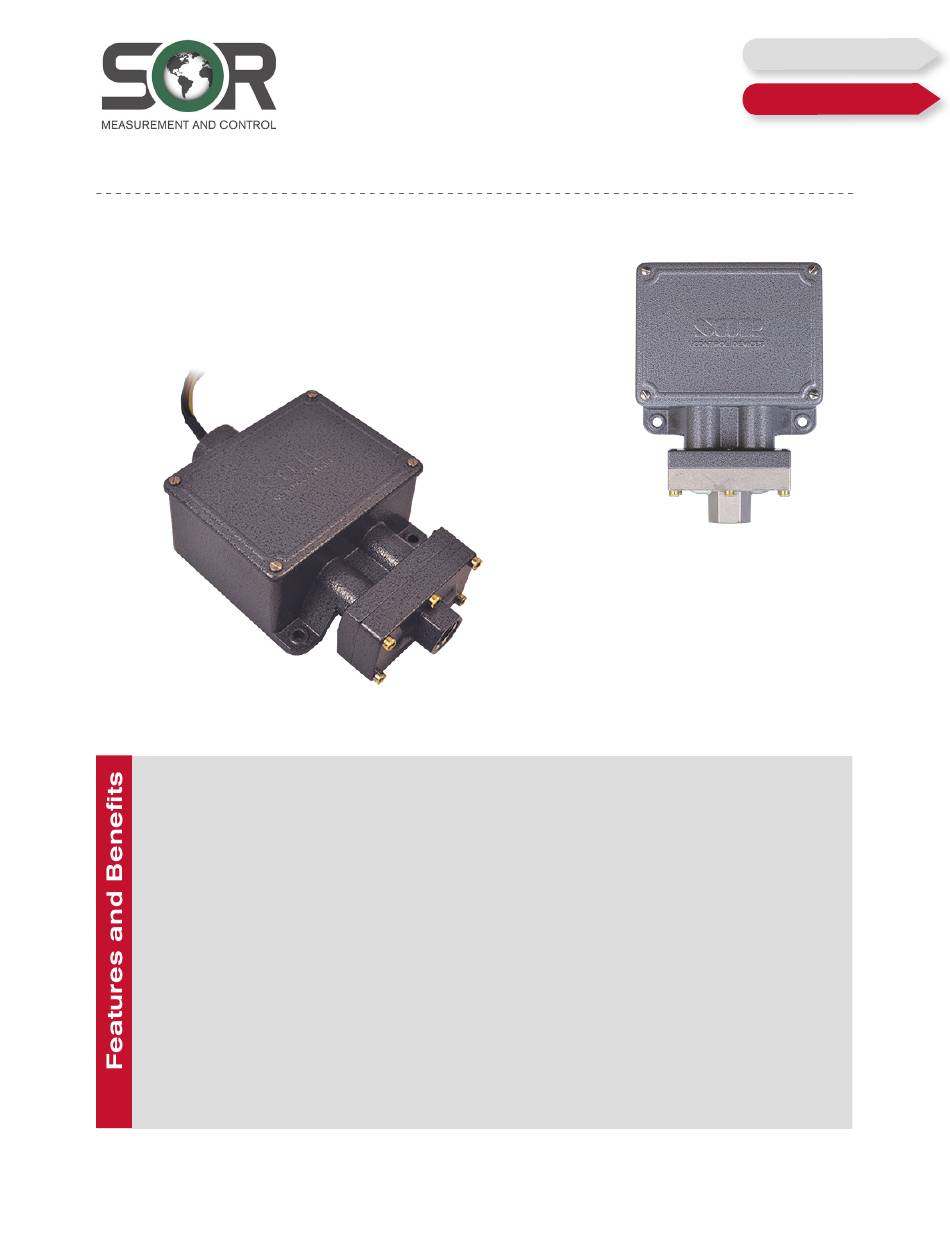

Adjustable Dead Band Pressure Switches
The adjustable dead band
pressure switch should be used when there is a
requirement for an adjustable and wide dead band
between the increasing and decreasing set points.
V3 Weathertight
Explosion Proof
Hermetically Sealed Switches
• 3-year warranty from date of manufacture
Safety Certified to IEC 61508 (SIL) SOR products are certified to IEC 61508 for non-redundant
use in SIL1 and SIL2 Safety Instrumented Systems for most models. For more details or values
applicable to a specific product, see the Safety Integrity Level Quick Guide (Form 1528).
• Wide adjustable dead band
• Independent adjustments for increasing and decreasing Set Points
• Field adjustable with fine resolution of Set Points
• Instrument quality — high repeatability
• High overrange and proof pressures
• Exceptionally long life
• Not critical to vibration
• Wide selection of wetted parts materials for process compatibility and containment
Form 281 (05.18) ©SOR Inc.
Function
Alarm: Hi — Lo
Control: On — Off
|
|
SORInc.com
913-888-2630

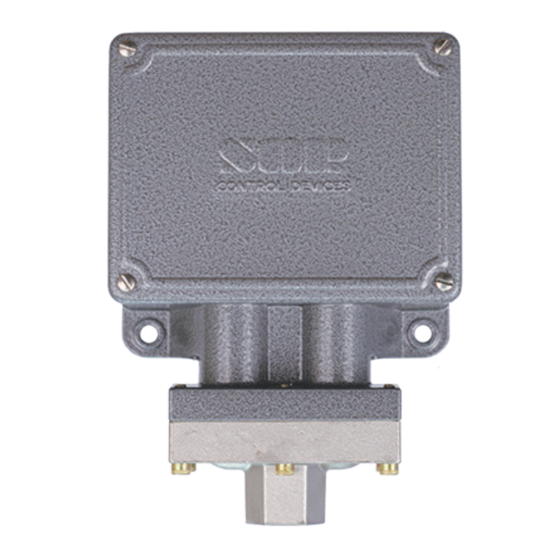

V1 Weathertight Housing
Design and specifications are
subject to change without notice.
For latest revision, see www.sorinc.com.
Registered Quality System to ISO 9001
SORInc.com
SEE MORE AT
Request Quote
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SOR V1

  • Page 1 • 3-year warranty from date of manufacture • Safety Certified to IEC 61508 (SIL) SOR products are certified to IEC 61508 for non-redundant use in SIL1 and SIL2 Safety Instrumented Systems for most models. For more details or values applicable to a specific product, see the Safety Integrity Level Quick Guide (Form 1528).
  • Page 2 Pressure Switches Principle The SOR Adjustable Dead Band pressure switch incorporates two industry proven Static “O” Ring pressure sensing elements. Media pressure on the areas of the pistons counteracts the forces of the range springs — each adjustable by a separate adjusting nut — and moves the piston shafts to operate the lever assembly which, in turn, actuates and deactuates the electrical switching element.
  • Page 3: Pressure Switches

    Select Accessories required for service (page 9). If Agency Approved, Certified or Listed pressure switches are required, see page 10 for components that must be specified. 3/16 SORInc.com Registered Quality System to ISO 9001 Form 281 (05.18) ©SOR Inc. 913-888-2630...
  • Page 4 Set Point. Any point within the blue field is acceptable. 5V1-LA3-N6-C1A-YY 1st and 4th places in model number 4/16 Registered Quality System to ISO 9001 SORInc.com 913-888-2630 Form 281 (05.18) ©SOR Inc.
  • Page 5 Increasing Set Point (psi) Overrange 1500 psi 100 bar 5 - 3 Overrange 2500 psi 170 bar Proof 2500 psi 170 bar Proof 3875 psi 267 bar 5/16 SORInc.com Registered Quality System to ISO 9001 Form 281 (05.18) ©SOR Inc. 913-888-2630...
  • Page 6 (UL Listed/CSA Certified, Material: 356 aluminum ATEX and SAA Approved Use AG switching element; hermetically sealed SS Snap Switch) capsule Shipping weight: 5 pounds (2.5 kgs) 6/16 Registered Quality System to ISO 9001 SORInc.com 913-888-2630 Form 281 (05.18) ©SOR Inc.
  • Page 7: Step 3: Switching Elements

    Ex tD A22 T105 °C IP65 following table. 3. Consult the factory for availability of ATEX Approved II 2 G EEx m II SAA Approved units. 7/16 SORInc.com Registered Quality System to ISO 9001 Form 281 (05.18) ©SOR Inc. 913-888-2630...
  • Page 8 Viton corrosive processes. Monel 2. Other diaphragm and o-ring combinations Kalrez may be available. Consult the factory or the Viton SOR representative in your area for more Hastelloy-B Kalrez information. 3. Wetted parts have been selected as repre- Viton Hastelloy-C...
  • Page 9: Step 5: Pressure Port

    Accessory / Option & Description Designator Wetted parts are cleaned for industrial oxygen service. CSA Certified pressure switch. Available with V1 housing. Housing has earth (ground) lug. See agency listings on page 10 for details. Cemented cover gasket on weathertight housing.
  • Page 10: Test Certificates

    Enclosure 4 (Weathertight) Pressure Port Switching Diaphragm Accessories/ Piston Housing Spring Material & Element & O-Ring Option Connection Size CS Required LA, SA All except TB 10/16 Registered Quality System to ISO 9001 SORInc.com 913-888-2630 Form 281 (05.18) ©SOR Inc.
  • Page 11: Glossary Of Terms

    Adjustable Dead Band Pressure Switches Glossary of Terms SOR recognizes that there is no industry convention with respect to terminology and definitions pertinent to pressure switches. This glossary applies to SOR Pressure Switches. Adjustable Range Proof Pressure The span of pressure between upper and lower...
  • Page 12 Dimensions are expressed as millimeters over inches (Linear = mm/in.). Drawing 0090300 Pipe Mounting Kit: Drawing 0091353 Junction Box with Terminal Block: 12/16 Registered Quality System to ISO 9001 SORInc.com 913-888-2630 Form 281 (05.18) ©SOR Inc.
  • Page 13 Pk Pipe Kit TB Junction box with 2.25 Terminal Block Actual shipping weights may vary from the charted values because of product material, configuration and packaging requirements. 13/16 SORInc.com Registered Quality System to ISO 9001 Form 281 (05.18) ©SOR Inc. 913-888-2630...
  • Page 14: Housing Dimensions

    Housing Designator: V1 Drawing 0090325 Hazardous Locations Contains Explosion Proof, Hermetically Sealed Switching Element Capsule: UL Listed, CSA Certified, ATEX and SAA Approved Housing Designator: V3 14/16 Registered Quality System to ISO 9001 SORInc.com 913-888-2630 Form 281 (05.18) ©SOR Inc.
  • Page 15 Notes 15/16 SORInc.com Registered Quality System to ISO 9001 Form 281 (05.18) ©SOR Inc. 913-888-2630...
  • Page 16 Fax 913-888-0767 SORInc.com REGIONAL OFFICES China Middle East SOR China Beijing, China SOR Measurement & Control Equipment Trading DMCC Dubai, UAE +86 (10) 5820 8767 Fax +86 (10) 58 20 8770 +971 4 278 9632 Fax +971 4 279 8399 16/16 Registered Quality System to ISO 9001 SORInc.com...
