9. Verify 3G/4G Connectivity (on applicable modules only):
The Wireless Modem tab in KonaFT is only displayed on modules with a modem and
provides LTE modem information, Network provider information, APN information,
RF information, call statistics and IP address.
 Select the "Wireless Modem" tab and click "Poll Now" button in each section
 Verify a public IP is assigned in the top window
 Verify Session State is CONNECTED in the Home Network window
 Verify Call Status is CONNECTED in the Call Statistics window
 The APN setting of the modem can be viewed in the Active Profile Parameters
window
 Signal Strength (RSSI) of the cellular connection is displayed in the RF
Information window
10. Verify Firewall configuration:
 Select Firewall tab on KonaFT, then select "Read Firewall Configuration". The
existing firewall rules will be displayed.
 Default Firewall rules will allow SSH connectivity from any address.
 Please contact Tektelic if pre-loaded Firewall rules are required from the Factory.
 The Firewall tab allows users to edit, create or delete Firewall rules for the
Gateway.
Kona Micro Quick Start Guide
TEKTELIC Communications Inc.

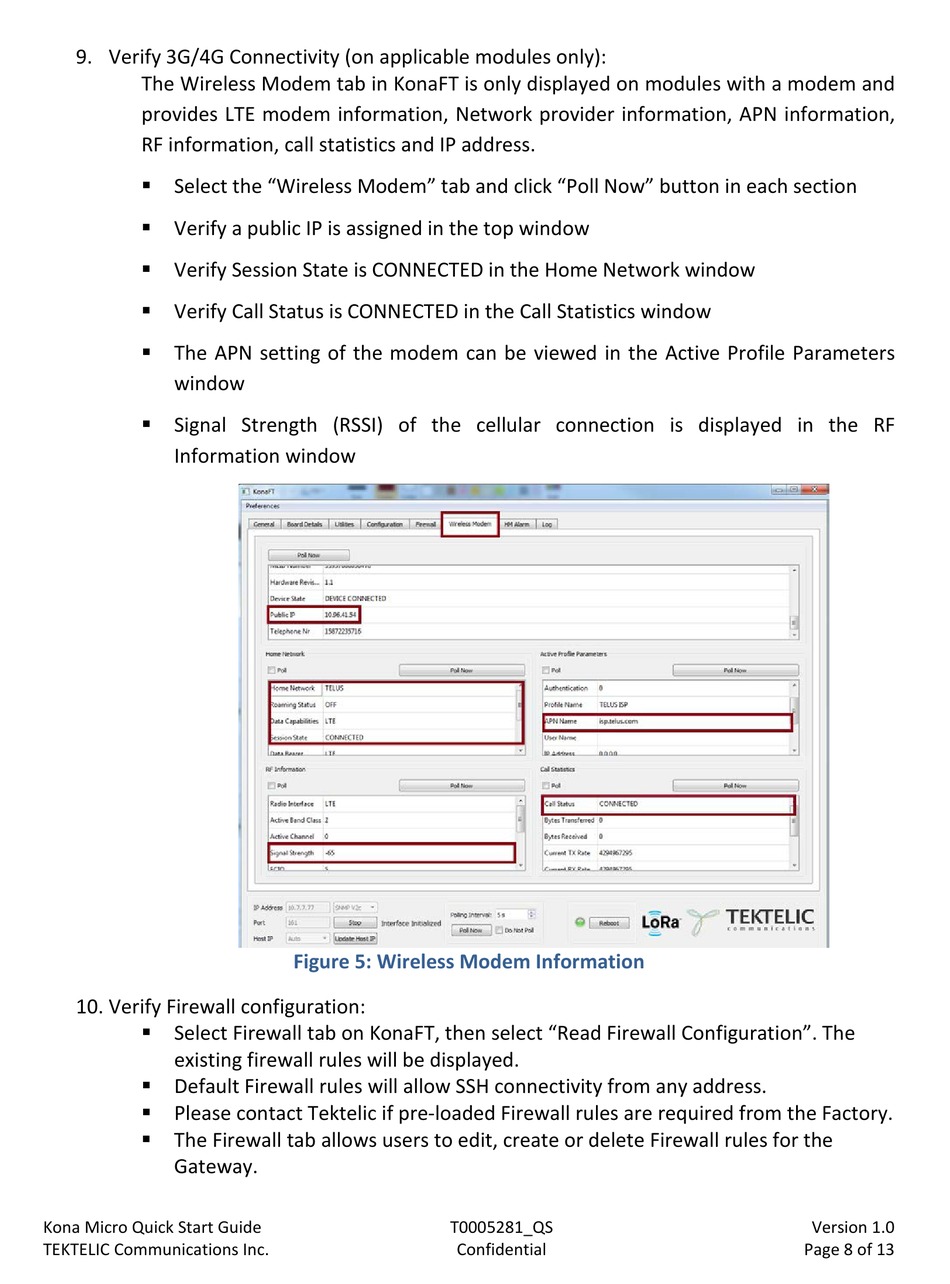

Figure 5: Wireless Modem Information
