TEKTELIC C
Document type:
Document number:
Document version:
Document Status:
Product name:
Product codes:
TEKTELIC Communications Inc.
th
7657 10
Street NE
Calgary, AB, Canada T2E 8X2
Phone: (403) 338-6900
© 2018 TEKTELIC Communications Inc., All rights reserved.
All products, names and services are trademarks and registered trademarks of their respective companies.
Disclaimer:
Material contained in this document is subject to change without notice. The material herein is solely for
information purposes and does not represent a commitment by TEKTELIC or its representatives. TEKTELIC has
prepared the information contained in this document solely for use by its employees, agents, and customers.
Dissemination of this information and/or concepts to other parties is prohibited without the prior written consent
of TEKTELIC. In no event will TEKTELIC be liable for any incidental or consequential damage in connection with the
furnishing, performance or use of this material.
TEKTELIC reserves the right to revise this publication in accordance with formal change control procedures defined
by TEKTELIC.
OMMUNICATIONS
User Guide
T0005281_UG
0.14
Approved
Kona Micro Indoor Gateway
See Table 1
I
.
NC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kona Micro and is the answer not in the manual?

Questions and answers

Summary of Contents for TEKTELIC Communications Kona Micro

  • Page 1 Street NE Calgary, AB, Canada T2E 8X2 Phone: (403) 338-6900 © 2018 TEKTELIC Communications Inc., All rights reserved. All products, names and services are trademarks and registered trademarks of their respective companies. Disclaimer: Material contained in this document is subject to change without notice. The material herein is solely for information purposes and does not represent a commitment by TEKTELIC or its representatives.
  • Page 2 Updated Antenna information in 0.13 Feb. 23, 2018 Approved T. Danshin compliance section March 1, 0.14 Approved Z. Herasymiuk Updated Compliance section 2018 Kona Micro Indoor User Guide T0005281_UG Version 0.12 TEKTELIC Communications Inc. Confidential Page 2 of 23...
  • Page 3: Table Of Contents

    Précautions de sécurité ....................18 Déballage et inspection ....................19 Matériel requis pour l'installation .................. 19 Montage de la passerelle intérieure Kona Micro ............19 Installation directe du câble d'alimentation CC ............. 21 Installation du câble RF ....................21 Installation du câble Ethernet en cuivre ................ 21 Déclarations de conformité...
  • Page 4: Product Description

    1 Product Description Overview The Kona Micro Indoor Gateway is an Indoor LoRaWAN IoT gateway that supports the full range of LoRa WAN channels. The Gateway supports one external LoRa antenna, direct DC input power, and two backhaul options including copper Ethernet or 3G/4G wireless.

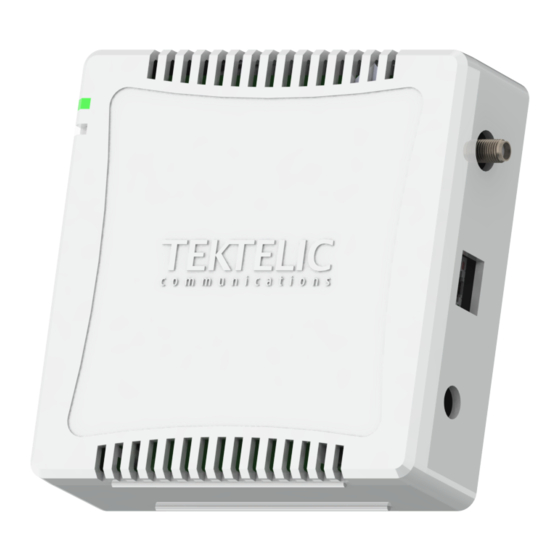

  • Page 5 Figure 1: Kona Micro Indoor Gateway Kona Micro Indoor User Guide T0005281_UG Version 0.12 TEKTELIC Communications Inc. Confidential Page 5 of 23...
  • Page 6: Physical Interfaces

    Physical Interfaces Figure 2 illustrates the connector layout for the Kona Micro Indoor Gateway. Ethernet LoRa RF DC Power Antenna Figure 2: Kona Micro Indoor Gateway Bulkhead Layout The indoor Gateway connectors are listed in Table 2. Table 2: Kona Micro Indoor Gateway Interface Connector Types...
  • Page 7: Specifications

    Specifications The Kona Micro Indoor Gateway specifications are listed in Table 3. Table 3: Kona Micro Indoor Gateway Specifications Attribute Specification Dimensions 120 (L) x 118 (W) x 41.5 (H) mm Weight 336 g / 0.74 lbs (with battery); 245 g / 0.54 lbs( without battery) Operating Temperature 0°C to 40°C...
  • Page 8: Installation

    Safety Precautions  The Kona Micro Indoor Gateway is intended for indoor application.  The Kona Micro Indoor Gateway must be installed in a restricted access location (such that touching of the Gateway by non-service persons is not likely).  The Kona Micro Indoor Gateway may become hot to the touch during normal operation at elevated ambient temperatures.
  • Page 9: Unpacking And Inspection

    No tools are required to install the Kona Micro Indoor Gateway module. Kona Micro Indoor Gateway Mounting Kona Micro Indoor Gateway can be placed on a flat surface or be mounted to a wall with M3 screws to locations on the back of the module illustrated in Figure 3.
  • Page 10 2. Install 2 site supplied M8 bolts into the wall at 60 mm (2.4”) center spacing, leaving the screw heads protruding with a 3 mm gap from the wall surface. 3. Hang the Kona Micro Indoor Gateway by mounting the two to keyhole slots onto the screws.
  • Page 11: Direct Dc Power Cable Installation

    SMA connector located side rear of the Gateway. Torque the connector to 5 in·lbs. The Kona Micro Indoor is not protected from lighting surge as it is intended for indoor use. Do not connect the unit with external RF antenna.
  • Page 12: Radio Compliance Statements

    2.7 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. Antenna: ET830DBLTRPSMA – Airgain, Inc. Kona Micro Indoor User Guide T0005281_UG Version 0.12 TEKTELIC Communications Inc.
  • Page 13 During product operation, always keep a separation distance of at least 11.8 inches (0.3 m) from any connected antenna(s). Before servicing the product, the antenna(s) or cables, turn off the transmission function or the unit power if you have to get closer than the minimum separation distance. Kona Micro Indoor User Guide T0005281_UG Version 0.12 TEKTELIC Communications Inc.
  • Page 14: Description Du Produit

    LORA GATEWAY MODULE, KONA MICRO, INDOOR, NA, LTE MODEM, BATTERY BACKUP NORTH AMERICA La figure 7 illustre le facteur de forme externe Kona Micro Indoor Gateway avec la vue de face en haut et la vue arrière en bas. Tous les modèles partagent le même facteur de forme mécanique.
  • Page 15 Figure 6: Kona Micro Indoor Gateway Kona Micro Indoor User Guide T0005281_UG Version 0.12 TEKTELIC Communications Inc. Confidential Page 15 of 23...
  • Page 16: Interfaces Physiques

    Interfaces physiques Figure 7 illustre la disposition de la cloison de la Kona Micro Indoor Gateway. Tous les modèles partagent la même disposition de cloison. Ethernet LoRa RF DC Power Antenna Figure 7: Kona Micro Indoor Gateway Mise en page de cloison Tous les modules d'interconnexion du module Kona Gateway se trouvent sur la cloison inférieure.
  • Page 17: Spécifications

    Spécifications Les spécifications de Kona Micro Indoor Gateway sont répertoriées dans Table 6. Table 6: Kona Micro Indoor Gateway Spécifications Attribute Spécifications Dimensions 120 (L) x 118 (W) x 41.5 (H) mm Weight 336 g / 0.74 lbs (with battery); 245 g / 0.54 lbs( without battery) Operating Temperature 0°C to 40°C...
  • Page 18: Installation

     La Kona Micro Indoor Gateway est conçue pour une utilisation en intérieur.  La passerelle Kona Micro Indoor Gateway doit être installée dans un endroit à accès restreint (de sorte que le contact avec la passerelle par des personnes qui ne sont pas en service est peu probable).
  • Page 19: Déballage Et Inspection

    Aucun outil n'est requis pour installer le module Kona Micro Indoor Gateway. Montage de la passerelle intérieure Kona Micro Kona Micro Indoor Gateway peut être placé sur une surface plane ou être fixé à un mur avec des vis M3 à l'arrière du module illustré à la Figure 8.
  • Page 20 2. Installez 2 boulons M8 fournis dans le mur à un espacement central de 60 mm (2,4 "), en laissant les têtes de vis dépasser d'un espace de 3 mm de la surface du mur. 3. Accrochez la Kona Micro Indoor Gateway en montant les deux fentes en trou de serrure sur les vis.
  • Page 21: Installation Directe Du Câble D'alimentation Cc

    RF se branche sur le connecteur SMA inversé situé à l'arrière de la passerelle. Serrez le connecteur à 5 po-lb. Le Kona Micro Indoor n'est pas protégé contre les surtensions, car il est destiné à une utilisation en intérieur. Ne branchez pas l'unité avec une antenne RF externe.
  • Page 22: Déclarations De Conformité Radio

    à 2,7 dBi sont strictement interdites pour cet appareil. L'impédance d'antenne requise est de 50 ohms. Antenne: ET830DBLTRPSMA - Airgain, Inc .. Kona Micro Indoor User Guide T0005281_UG Version 0.12 TEKTELIC Communications Inc.
  • Page 23 Pendant le fonctionnement du produit, gardez toujours une distance de séparation d'au moins 11.8 pouces (0.3 m) de toute antenne connectée. Avant de réparer le produit, l'antenne ou les câbles, désactivez la fonction de transmission ou l'alimentation de l'unité si vous devez vous rapprocher de la distance de séparation minimale. Kona Micro Indoor User Guide T0005281_UG Version 0.12 TEKTELIC Communications Inc.
