Quick Manual
ES series
Nomenclature
1
17
16
2
4
3
15
14
4
5
13
6
7
12
8
11
9
10

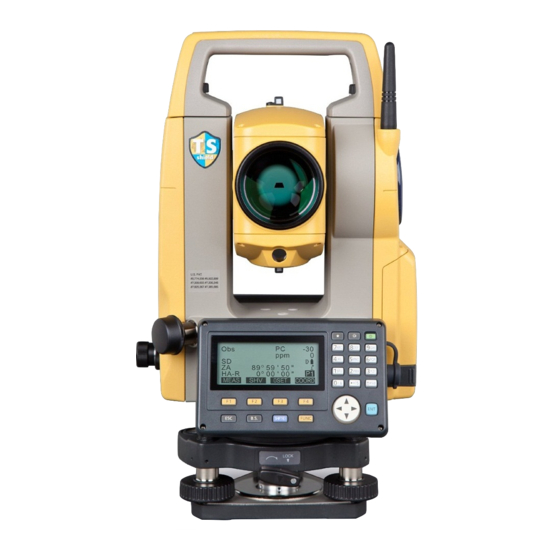

1 Handle
2 Bluetooth antenna
3 External interface hatch (USB port)
4 Instrument height mark
5 Battery cover
6 Operation panel
7 Serial connector /
Combined communications and
power source connector (ES-101/102,
Low Temperature Model: ES-103/105)
Display Functions
Obs Mode screen
Obs
PC
ppm
SD
Distance
ZA
Vertical angle
HA-R
Horizontal angle
MEAS
SHV
0SET
Softkey
Bluetooth
communication status
: Connection established
(flashing) : Waiting
(flashing) : Connecting
(flashing) : Disconnecting
: Bluetooth device is OFF
Basic Key Operation
● Power ON / OFF
{ON}
Power On
{ON} (Press and hold:
Power Off
About 1 second)
● Lighting up the display and key
[
]
Switch the screen/key backlight On / Off
● Switching target type
Target type can be switched only on the screen where the target symbol is
displayed.
Switches between target types
[SHIFT]
Prism/Sheet/N-prism(reflectorless)
● Switching the Laser-pointer/Guide light ON/OFF
To turn the laser-pointer/guide light ON/OFF,
[
] (Press and hold )
press and hold until a beep sounds.
• After turning ON the laser-pointer/guide light, the laser beam is emitted
for 5 minutes, and then automatically switches OFF. But in the Status
screen and when target symbol (ex.
) is not displayed in the Meas
mode, the laser beam is not automatically turned off.
28
18
27
19
• To remove the handle, hold both sides
26
4
of the handle and lift it straight above.
25
If you hold the handle by one hand or
20
4
incline it, the terminal attached on the
21
handle may be damaged.
22
23
24
8
Circular level
16 Objective lens (Includes Laser-
9
Circular level adjusting screws
10 Base plate
17 Handle securing screw
11 Levelling foot screw
18 Tubular compass slot
12 Optical plummet focussing ring
19 Vertical clamp
13 Optical plummet eyepiece
20 Vertical fine motion screw
14 Optical plummet reticle cover
21 Trigger key
15 Display unit
22 Horizontal fine motion screw
Target
Prism
Reflective sheet
0
Prism constant value
Reflectorless
0
Atmospheric correction factor
Remaining battery power
Tilt angle compensation
Level 3: Full power
P1
Page number
Level 2: Plenty of power remains.
COORD
(Next page exists.)
Level 1: Half or less power remains.
Level 0: Little power remains.
No power remains.
Laser-pointer function/Guide light On
(flashing): Laser-pointer is selected and ON.
(flashing): Guide light is selected and ON.
● Softkey operation
Softkeys are displayed on the bottom line of the screen.
{F1} to {F4}
{FUNC}
● Inputting letters/figures
{SHIFT}
{0} to {9}
{.}/{±}
{ }/{ }
{B.S.}
{ESC}
{ENT}
USING THE BATTERY
Battery Charging
Battery
BDC70
Charging lamp
Charging: Flashing.
Charging completion: Lighting up.
Charging time: About 4 hours
21405 99040
Operation panel
<ES-101/102>
7
Selector key for softkeys
23 Horizontal clamp
24 Tribrach clamp
pointer function)
25 Telescope eyepiece screw
26 Telescope focussing ring
27 Sighting collimator
28 Instrument center mark
Measuring screen
Dist
Fine " r "
Laser is emited
Status screen
*Instrument name
ES-103
S/N XXXXXX
Ver. XXX-XX-XX
Job. JOB1
OBS
JOB
Application software version
Select the function matching the softkeys
Toggle between Meas mode screen pages (when
more than 4 softkeys are allocated)
Switch between numeric and alphabetic characters.
During numeric input, input number of the key.During
alphabetic input, input the characters displayed
above the key in the order they are listed.
Input a decimal point/plus or minus sign during
numeric input.During alphabetic input, input the
characters displayed above the key in the order they
are listed.
Right and left cursor/Select other option.
Delete a character on the left.
Cancel the input data.
Select/accept input word/value.
To outlet
(AC100V-240V)
Charger
CDC68
• If you insert the battery slantwise, the
instrument body or the battery
terminal may be damaged.
• Listen for the click to ensure that the
cover is properly closed.
Illumination key [
Display unit
Power key [ON]
[1] - [9]
[0] [ ] [
Enter key [ENT]
[B.S.]
[FUNC]
[ ]
[ ] [ ] [ ]
[ESC]
[SHIFT]
Input screen
Cd
PC
0
: pole
ppm
0
Operator
STOP
REC 9999
ES-103
S/N XXXXXX
Date 2012/01/01
XXX-XX-XX
Time 09:39:12
USB
DATA
CNFG
OBS
● Selecting options
{ }/{ }
{ }/{ }
{ENT}
● Switching modes
[ ]
[CNFG]
[OBS]
[USB]
[DATA]
{ESC}
● Others
{ESC}
Installing the Battery
Battery
Cover
Battery
Star key [
]
• Press the star key [ ], and the star
]
key mode is accessed. In the star key
mode, it is possible to change the
setting item that is frequently used
during measurement and start the
measurement program from "Entry
menu".
]
Entry menu
Tilt crn
: Yes(H,V)
Contrast
: 10
Reticle lev
: 3
Entry menu
JOB select
JOB detail
Topography
Coordinate
S-O
Preceding page
exists.
Next page
exists.
Input mode
A A :Inputting capital letters and figures.
a :Inputting small letters and figures.
No display: Inputting numerals.
REC 9999
Date
Time
DATA
CNFG
USB
Up and down cursor
Right and left cursor/Select other option
Accept the option
From Obs mode (Observation Mode) to Star
key Mode
From Status mode to Config Mode
(Configuration Mode)
From Status mode to Obs Mode (Observation
Mode)
From Status mode to USB mode
From Status mode to Data Mode
Return to the Status mode from each Mode
Return to the previous screen
