Connection – connecting the cables

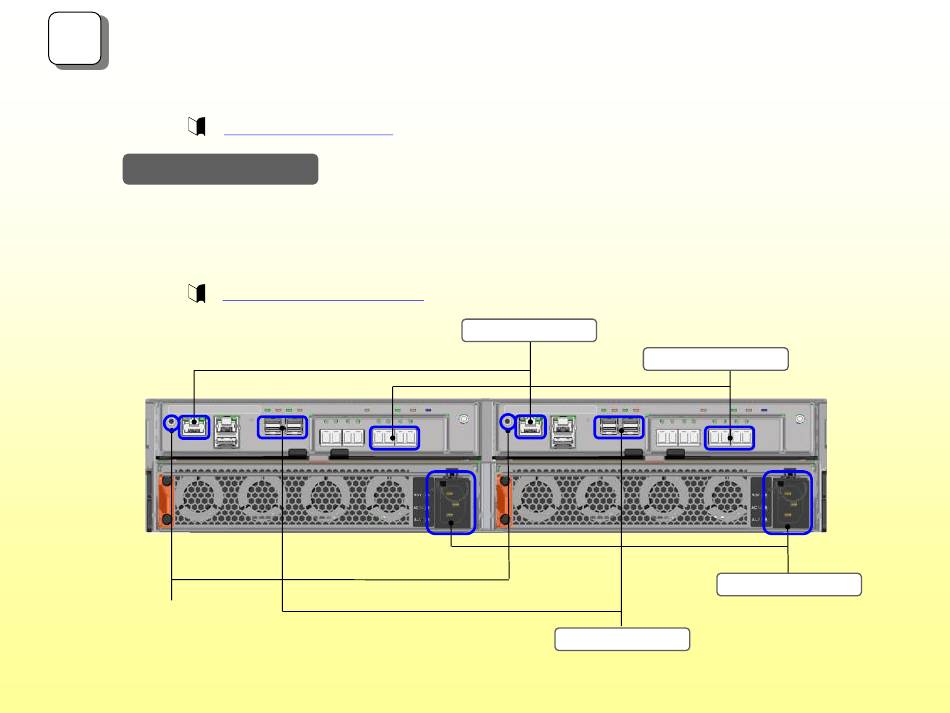

■ Connect the cables by checking the locations of cables (see figure below) .
3-3 Connecting Disk Array Units
Disk Array Unit
[Dual controllers and AC power mounting model with a pair of FC 4port HPE]
Connect the same way for Disk Array Units with other types of controller.
For details about name of each port, see the following section.
1-2-3-3 Controller (CONT) Table 1-9
Power button
Note: Connect the power cable to the outlet after the connection of other cables is completed.
DP1 DP0
To a client machine
Management port
DP1 DP0
Disk port (DP0,DP1)
To disk enclosure
When connecting a disk enclosure, connect DP0 or DP1
on the Disk Array Controller with the DP0-IN on the disk enclosure
To Application server
Host port
Power plug
To power outlet
(for M310)
